FXL(i) FAN STORAGE HEATER RANGE
MODELS: FXL18i - 2.6kW / 18kWh STORAGE & 1.5kW BOOST
FXL24i - 3.4kW / 24kWh STORAGE & 1.5kW BOOST
INSTALLATION OPERATING AND
INSTRUCTIONS
IMPORTANT
PLEASE READ THIS LEAFLET CAREFULLY AND RETAIN FOR FURTHER USE.
NOTE ALSO THE INFORMATION GIVEN ON THE HEATER
The Installation must be carried out by trained personnel in accordance with Australian wiring rules AS/NZS 3000.
A means for disconnection must be incorporated in the fi xed wiring in accordance with the said rules.
The heater must not be installed immediately below a fi xed socket outlet.
Do not position the heater under windows where curtains can contact the heater casing. Maintain a minimum
distance of 150mm at all times between the heater and combustible materials, such as furniture and curtains.
WARNING in order to avoid overheating, do not cover the heater. Do not place objects in contact with the heater.
WARNING - THE SURFACES ON THIS HEATER CAN BE HOT.
This heater meets AS/NZS 60335 electrical safety requirements. However, any heater type becomes hot in normal
operation. Care must be taken to ensure that prolonged skin contact with the heater does not occur.
WHERE YOUNG CHILDREN, INFIRM PERSONS, OR THE AGED ARE PRESENT THIS APPLIANCE MUST BE
ADEQUATELY GUARDED. Contact your installer or the manufacturer for further advice.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision for instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
This appliance is very heavy and must be securely fi xed to a wall. DO NOT UNDER ANY CIRCUMSTANCES
ATTEMPT TO MOVE OR REPOSITION THIS HEATER WITHOUT SEEKING EXPERT ADVICE.
To maintain stability, it is essential that the heater is placed on a level surface and care should be taken to avoid
irregular surfaces, such as may result from carpets or tiled surrounds partially protruding under the heater.
This heater must be installed where it is impossible for switches and other controls to be touched by a person using
a bath or shower.
IMPORTANT - Due to the newness of materials the heater will produce a slight smell for the fi rst few days of
operation. ROOMS MUST BE WELL VENTILATED AND YOUNG CHILDREN, CAGED BIRDS, OR PERSONS
WITH RESPIRATORY COMPLAINTS MUST NOT REMAIN IN CLOSE PROXIMITY TO THE HEATER DURING
THE FIRST 48 HOURS OF THE COMMISSIONING PERIOD.
IF, DURING ANY REASSEMBLY OF THE HEATER, A PART OF THE THERMAL INSULATION SHOWS DAMAGE
OR DETERIORATION WHICH MAY IMPAIR SAFETY, IT SHOULD BE REPLACED BY AN IDENTICAL PART.
10887
INSTALLATION INSTRUCTIONS
PREPARATION
The heater will arrive separately
from its storage bricks, the following
bricks will be required.
FXL18i - 12 bricks
FXL24i - 16 bricks
Two supplies are required for the
operation of this heater - a restricted Off
Peak or Economy 7 supply for the storage
circuit, and an unrestricted supply for the
fan boost element circuit.
Thermostatic fan / boost control is
provided on the heater, however the fan
/ boost operation may be customised by
the introduction of an external timer to
the heater (see section 3).
WARNING - This appliance
must be earthed
Only heat resisting cable (min. rating V75)
should be used. The wires in the mains
cable will be coloured as follows:-
GREEN & YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
SUGGESTED FIXINGS
SOLID BRICK/BLOCK - No. 10 Size plastic
inserts, 8mm drill bit. Drill hole 15mm
deeper than plastic insert length.
PLASTERBOARD - If possible locate
studding and use No. 10 woodscrews
directly into the wood, otherwise M5 rawlplug
intersets are suitable.
NOTE: FOR OTHER WALL TYPES - (e.g.
timberframe and hollow concrete) SEEK
SPECIALIST ADVICE.

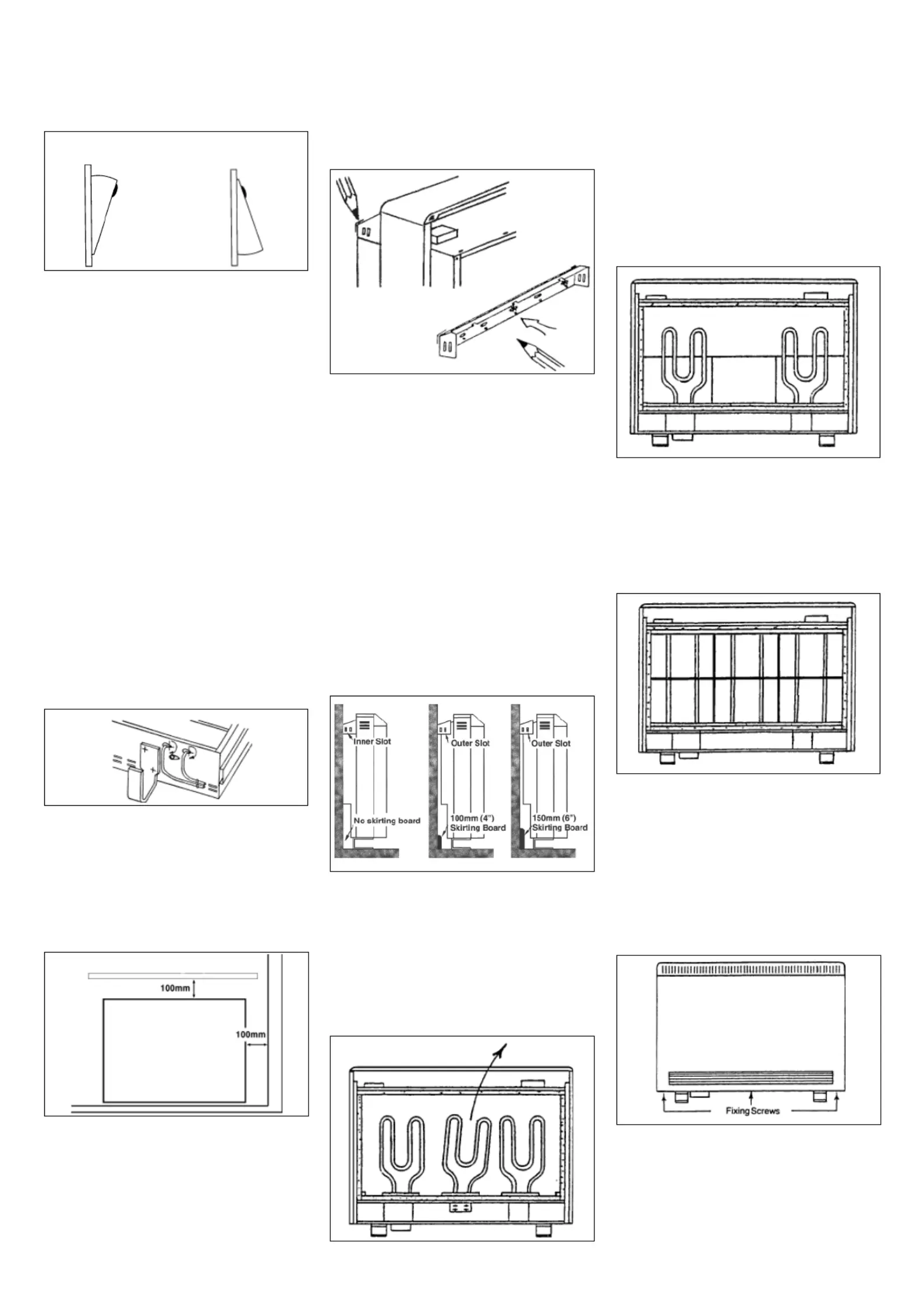

INSTALLATION
1. ENSURE THAT FIXING KIT HAS BEEN
LOCATED BEFORE DISPOSING OF
PACKAGING.
Remove the front panel by removing the
three screws along its bottom edge. With
hands positioned on each side of the panel,
lift upwards to unhook the top edge whilst
pressing down on the top panel with your
thumbs. The panel can now be lifted clear
and set to one side.
Remove the packing pieces from the slots
on the inner front (3 on the FXL18i and 4
on the FXL24i).
2. Remove the inner front panel by
unscrewing the screws along its top and
sides. As the front insulation is attached
care must be taken when lifting this panel
from the heater and placing it to one side.
Remove the three inner guards by removing
the screws along their bottom edges and
sliding the guards up and off the base tray.
Please note the location of each guard.

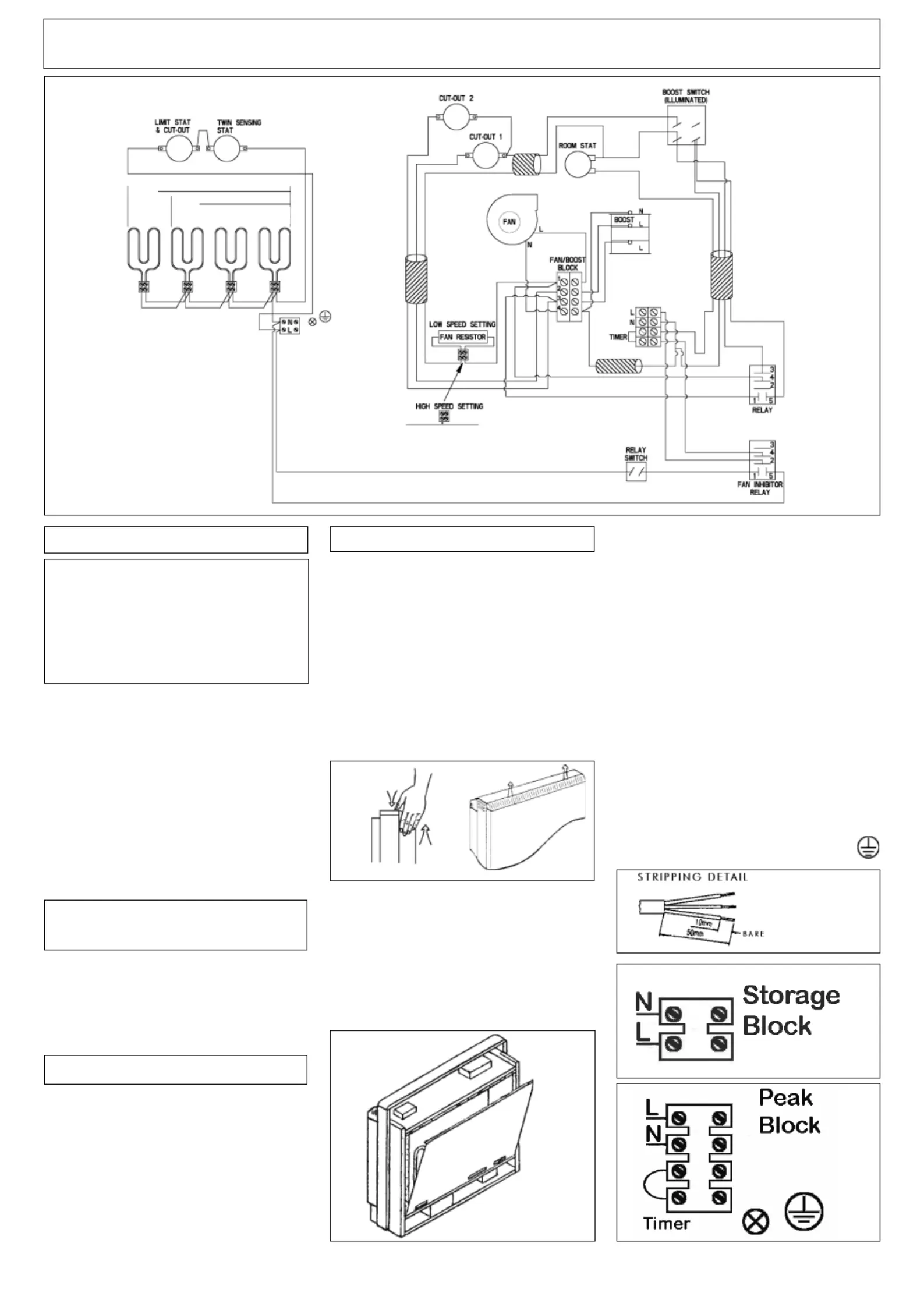

3. CONNECTION OF THE MAINS CABLE
- Connect the restricted (E7) supply to the
terminal block, marked “Storage Circuit”,
having first passed the cable through a
front cable clamp in the base. Connect the
unrestricted (Peak) supply to the terminal
block, marked “Fan/Boost Circuit”, having
passed this cable through another cable
clamp in the base.
At this point, if desired, an external fan/
boost timer may be fi tted to the heater by
passing the two wires from the timer through
the remaining cable clamp, and connecting
them across the terminal block, marked
“Timer”, having already removed the link
fi tted across this block at the factory.
IMPORTANT: When using an external
fan/boost timer, the fan inhibitor must
be disabled (see Section 4).
Connect the EARTH lead from both supplies
to the terminal marked with the symbol
IMPORTANT DURING NORMAL OPERATION ENSURE
BOTH SUPPLIES ARE SWITCHED AT THE WALL ON .
STORAGE CIRCUIT
FAN/BOOST
CIRCUIT
24i
18i
5. FAN SPEED SELECTION - At this point
the installer must choose between Normal/
High Fan High Fan or permanent option.
Option 1 - The heater is factory set at
Normal Fan. The fan will therefore:-
(a) Run at NORMAL when the boost option
is not selected.
(b) Run at NORMAL when the boost
is selected and the core is partially
depleted.
(c) Automatically switch to HIGH when the
boost is selected and the core is almost
fully depleted.
Option 2 - High Fan If a is permanently
required the installer must make the following
adjustment.
(a) Loosen the two screws securing the wires
to the resistor block.
(b) Move the right wire to the left of the
block and tighten both wires in the left
connection point of the resistor block
effectively taking the resistor out of circuit.
See Fan/Boost Circuit Diagram
6. Ensure that any slack is pulled back
through each clamp and tighten the clamping
screws. Secure cables to base of heater
using ties provided in fi xing kit.
7. Place the heater on its feet, and in the
desired position against the wall - DO NOT
LIFT THE HEATER BY ITS TOP PANEL!
Ensure that the heater is based on a fi rm
level surface, at least 100mm from any end
wall, and at least 100mm below any shelf or
similar projection. Cut away the gripper rod
or carpet which would prevent the heater
sitting fi rmly on the fl oor.
8. Mark the position of the two outside
corners of the wall bracket with the heater
pushed tight against the wall. Remove the
wall bracket from the heater by removing the
screw at each end. Place the heater to one
side and reposition the bracket against the
wall using the corner marks for alignment.
9. THE FOLLOWING MUST BE APPLIED
WHEN FIXING THE HEATER TO THE
WALL BRACKET.
i) If no skirting board is present secure
the heater through the wall bracket slots
closest to the wall.
ii) If 100mm (4 in.) skirting is present secure
the heater through the outer slots.
iii) If skirting taller that 150mm (6in.) is
present this must be reduced to 150mm
(6 in.) over the entire width of the heater
plus 25mm (1 in.) at each end.
Do not fully tighten these screws until the
bricks are loaded into the heater as some
settling of the heater may occur.
NOTE: NEVER REMOVE THESE SCREWS
WITHOUT FIR S T UNLOADING THE
HEATER.
10. Remove one element to allow access
for the back rows of bricks. On the FXL24i
remove the element to the right of centre and
on the FXL18i remove the central element.
Loosen the two screws securing the element
tails in the ceramic connector block, and lift
the element up and out of the heater.
11. Carefully fi t the bottom row of the back
layer of bricks placing the two end bricks
into position fi rst. Ensure that the recess
in the bricks is toward the rear of the
heater with the narrow end to the bottom.
Repeat this with the top row of the back
layer of bricks but the narrow end of the
recess must be to the top.
Refi t the element which had been removed
by feeding the tails down through the hole
in the base insulation and into the connector
block. Ensure the element is fully pushed
home, then securely tighten the two screws
in the block.
12. Fit the front layer of bricks with the
recess toward the front of the heater.
The complete core will comprise:
FXL18i : 3 x 4 brick columns
FXL24i : 4 x 4 brick columns
13. Replace the inner front, complete with
insulation, by locating its bottom edge behind
the front lip of the chassis and inserting the
retaining screws along the top and sides.
Refit the three inner guards in their
respective locations.
Replace the outer front by hooking the upper
grille into its retaining slot on the top panel,
lower into position and replace the three self
tapping screws along the bottom edge.
14. Finally, tighten the screws at each end
of the wall bracket. Ensure that all screws
have been tightened as this is essential to
maintain earth continuity.
4. The heater is fi tted with a fan inhibitor
relay. This relay will inhibit the operation of
the fan during the off peak periods. If the fan
operation is required (eg. if using external
fan/boost timer) during the off peak period
then the relay switch should be switched to
the relay off position.
Factory set
(relay ON position)
Relay OFF position
Four fi xing positions must be chosen for
the FXL24i and three for the FXL18i. Mark
the positions for the fi xing holes - two at the
extreme ends and others spaced evenly
between them. Remove the bracket from
the wall, drill the holes in the positions
marked, and insert suitable fi xings previously
described. Secure the wall bracket to the wall
using the correct fasteners.
