1. Preface
These are the original product instructions. This
document is part of the product; retain it for the life of
the product, passing it on to subsequent holders.
Read this manual in full before attempting to
assemble, operate or maintain this product.
This Draper Tools manual describes the purpose
of the product and contains all the necessary
information to ensure its correct and safe use.
Following all the instructions and guidance in
this manual will ensure the safety of both the product
and the operator and increase the
lifespan of the product.
All photographs and drawings within this manual are
supplied by Draper Tools to help illustrate correct
operation of the product.
Every eort has been made to ensure the information
contained in this manual is accurate. However, Draper
Tools reserves the right to amend this document
without prior warning. Always use the latest version of
the product manual.

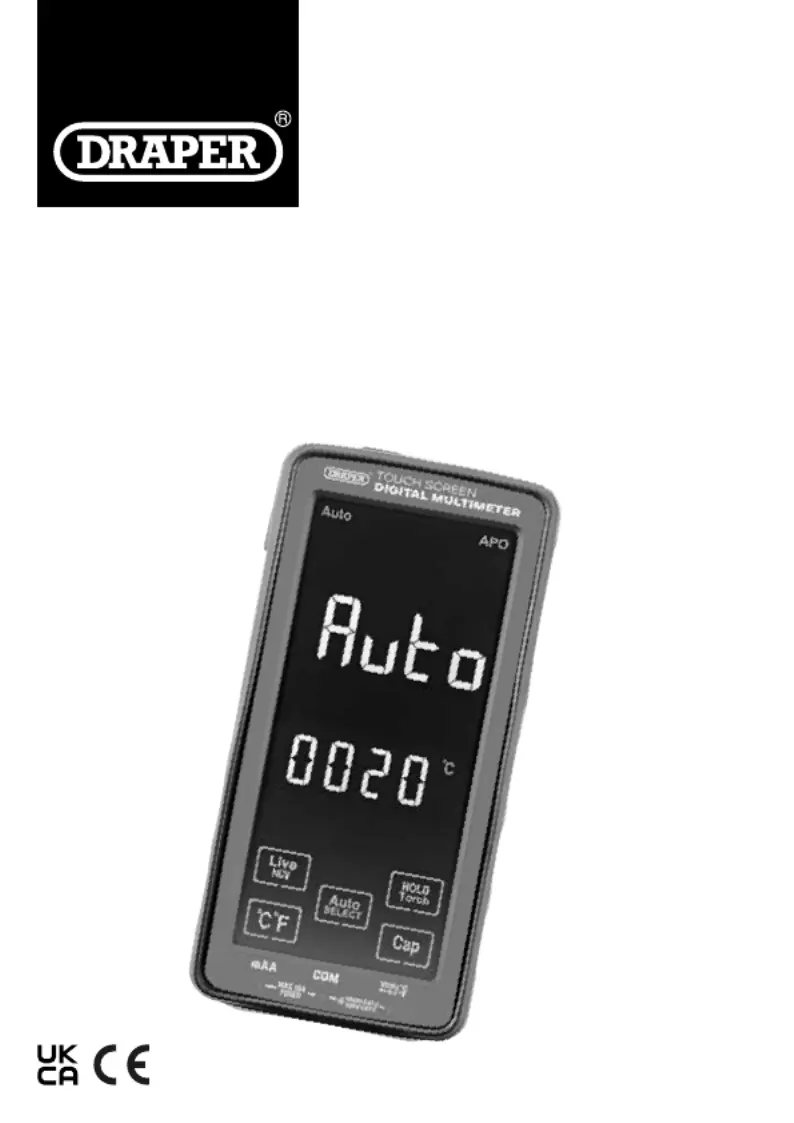

1.1 Product Reference
User Manual for: Touch Screen Digital Multimeter,
Stock No.: 16232
Part No.: DMM500
1.2 Revisions
Version 1: January 2024
First release
Please visit for the latest version drapertools.com/manuals
of this manual and the associated parts list, if applicable.
1.3 Understanding the Safety Content
of This Manual
WARNING! – Situations or actions that may result in
personal injury or death.
CAUTION! – Situations or actions that may result in
damage to the product or surroundings.
Important: – Information or instructions of particular
importance.
1.4 Copyright © Notice
Copyright © Draper Tools Limited.
Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial copying,
redistribution, hiring or lending is strictly prohibited.
No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.
In all cases, this copyright notice must remain intact.
2. Contents
1. Preface 2
1.1 Product Reference 2
1.2 Revisions 2
1.3 Understanding the Safety Content
of This Manual 2
1.4 Copyright © Notice 2
2. Contents 2
3. Product Introduction 3
3.1 Intended Use 3
3.2 Specication 3
4. Explanation of Symbols 4
5. Health and Safety Information 5
6. Identication and Unpacking 6 – 7
6.1 Product Overview 6
6.2 What’s in the Box? 7
6.3 Packaging 7
7. Operating Instructions 7 – 9
7.1 Charging the Multimeter 7
7.2 Operating the Multimeter 7 – 8
7.3 AC/ DC Voltage and Resistance Test
Measurements 8
7.4 AC/DC Current Measurement 8
7.5 Diode Testing 8
7.6 Capacitance Measurement 8
7.7 Temperature Measurement 8
7.8 Frequency 8
7.9 NCV Test Function 9
7.10 Live Circuit Recognition 9
7.11 Data Hold 9
7.12 Torch Feature 9
8. Product Care and Disposal 9
8.1 Maintenance and Storage 9
8.2 Disposal 9
9. Warranty 10
Notes 11
– 2 –
3. Product Introduction
3.1 Intended Use
This device is designed to measures current, resistance,
capacitance, frequency, temperature, diode and
non-contact voltage. It can also automatically identify and
measure AC/DC voltage and resistance.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
Read this manual in full before operating or maintaining
the product and retain it for later use.
3.2 Specication
Stock No.: 16232
Part No.: DMM500
Multimeter rating: CAT III, 600V
Dimensions: W 75 × H 150 × D 24 mm
Battery: 1 × 3.7V/2800mA USB-C Rechargeable
Weight: 220g
Circuit protection: Fuse
Overload protection: 250V DC or AC (RMS)
DC voltage:
Input resistance: 10MΩ
Input sensitivity: 0.8V
Maximum input voltage: 1000V
Measurement range: 0.001V to 1000V,
Accuracy: <60V = +/-(0.5% +3) >60V = +/-(0.8% +10)
Max Resolution: 0.001V
AC voltage:
Input resistance: 10MΩ
Input sensitivity: 0.8V
Maximum input current: 10A DC or AC RMS
Measurement range: 0.001V to 750V,
Accuracy: <60V = +/-(0.8% +3) >60V = +/-(1.0% +10)
Max Resolution: 0.001V
AC/DC current:
Overload protection: FF20A/250V fuse
Current Range: 1mA to 10A
(5A for 15 seconds maximum)
Accuracy: <6000mA = +/-(1.0% +5) >6000mA =
+/-(2.5% +10)
Max Resolution: 1mA
Resistance:
Measurement Range: 0.1Ω to 60MΩ
Accuracy: <600Ω = +/-(0.8% +3), 6MΩ = +/-(1.2% +3)
>6MΩ=+/-(2.5% +5)
Max Resolution: - 0.1Ω
Capacitance:
Measurement Range: 0.01nF to 100.0mF
Accuracy: <6.000mF = +/-(4.0% +20) 60.00mF =
+/-(5.0% +5) >60.00mF =For reference
Max Resolution: - 0.01nF
Frequency:
Measurement Range: 0.001Hz to 999.9kHz
Accuracy: +/-(0.8% +3)
Max Resolution: 0.001Hz
Diode check:
Test current Forward DC: 1mA typical
Test Current Reverse DC: 3.2V typical
Measurement range: 3.2VDC typical
Circuit On/O Test
Open circuit voltage: 1V typical
Temperature Test
Measurement Range:
( Excluding probes) -20 to +1000°C
-4 to +1832°F
Accuracy: 0.1 – 1°C/1°F
Operating conditions:
Operating temperature: 18–28°C
Storage Temperature 10 - 50°C
