Seite 1/8
EN
Original Instructions
Version 2: January 2025

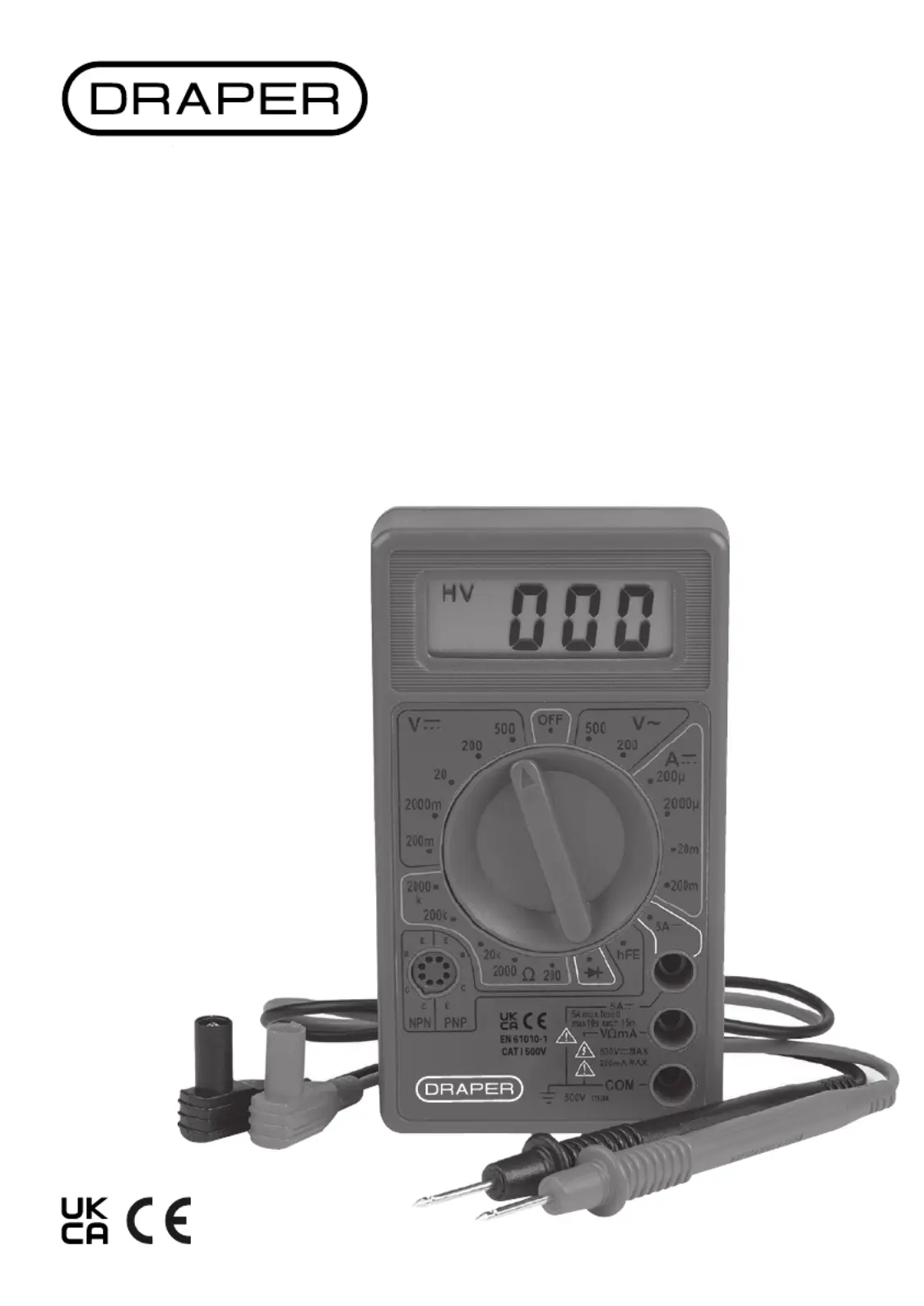

68476
POCKET DIGITAL
MULTIMETER
1. Product Introduction
– 2 –
1.1 Intended Use
This compact multimeter is designed to measure AC/DC
voltage, DC current, resistance, diode and test transistors.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts
no responsibility for improper use of this product.
Read this manual in full before attempting to assemble,
operate or maintain the product, and retain it for later use.
1.2 Specication
Stock No. 68476
Part No. DMM8
Multimeter rating: CAT I, 500V
Dimensions: L 125 X W 70 x H 24mm
Batteries Required: 1 X 9V PP3/6F22 (not supplied)
Fuse Protection: F1 F5AH/500V & F2 F500mAH/500V
Overload Protection:
200mV range 220V AC rms
All other ranges 500V DC/AC rms
Weight (battery tted): 110g
Open Circuit Voltage: 0.25V
Operating Temperature: 10°C to 40°C
Storage Temperature: -10°C to 50°C
Humidity: <75% R.H
Range Selection Range Resolution Accuracy
DC Voltage
Input impedance: 10MΩ
200mV 100µV +/- 0.5% reading +/-3 digits
2000mV 1mV
20V 10mV +/- 1% reading +/-5 digits
200V 100mV
500V 1V +/- 1.2% reading +/-5 digits
AC Voltage
Frequency range 45 – 450Hz
200V 100mV
500V 1V +/- 1.2% reading +/-10 digits
DC Current
200µA 100µA
2000 µA 1µA +/- 1.8% reading +/-2 digits
20mA 10µA
200mA 100µA +/- 2% reading +/-2 digits
5A 10mA +/- 2% reading +/-10 digits
Resistance
200Ω 0.1Ω +/- 1% reading +/-10 digits
2000Ω 1Ω
20kΩ 10Ω +/- 1% reading +/-2 digits
200kΩ 100Ω
2000kΩ 1kΩ
Transistor hFE PNP/NPN Test Current/Voltage 10 µA/VCE 2.8V
Diode Approx. forward voltage drop of the diode displayed.
3. Health and Safety Information
– 3 –
Important: Read all the Health and Safety instructions
before attempting to use this product. Failure to follow
these instructions may result in serious injury or death.
WARNING! Contact with live circuits can result
in severe electrical shock.
−Take care not to touch the exposed contacts as
they may give a serious electric shock.
−Use caution when working with voltage above
60V DC, 30V AC RMS or 42V peak.
−DO NOT measure voltage above 500V DC or AC
(RMS).
−DO NOT apply voltages to the probe while
measuring current or diodes.
• ONLY trained and competent personnel may operate
this device.
• Use this product ONLY as instructed in this manual.
• ALWAYS connect the black test lead before
connecting the red test lead and disconnect the red
test lead rst.
• Use ONLY accessories and spare parts supplied by
Draper Tools.
− If the fuses must be replaced, use identical items
with the same specication.
− If the battery must be replaced, use one with the
same specication.
• Observe all standard precautions and good practice
when working with live electrical currents.
• Inspect the product for damage before every use,
particularly the contact tips.
−DO NOT use this product if the device, case or
probe leads are damaged in any way or if there is
evidence of battery leakage. Contact Draper Tools
for replacement options if the leads become
damaged.
− If battery acid comes into contact with your skin,
wash it o immediately with plenty of clean water.
− If battery acid comes into contact with your eyes,
ush them with plenty of clean water and seek
immediate medical attention.
• Ensure that the device is clean, dry and free from
grease before use.
• DO NOT use this product if it exhibits abnormal
behaviour and have it checked by a qualied and
authorised technician before next use.
• DO NOT exceed the maximum rated capacity per
function for this device as it may expose you to a
shock hazard.
• Ensure that the probe contacts are disconnected from
the load or test circuit before moving the function dial.
• Assess any specic additional risks to the operator
before each use.
• DO NOT expose this product to excessive ambient
temperature, high humidity, ammable substances or
environments that produce a strong magnetic eld.
• DO NOT use this this product around explosive gases,
vapours or dust.
• DO NOT immerse this device in water or expose it to
wet conditions.
• ALWAYS wear protective insulated gloves while using
this product.
• Keep your ngers behind the guards on the test
probes during use.
• ALWAYS turn the function dial to the position ‘OFF’
before opening the back panel to replace the battery
or fuses.
• DO NOT operate this device with the rear housing
open or missing and use it if the rear housing DO NOT
cannot be closed properly.
• DO NOT abuse, mutilate or burn the battery.
• Remove the batteries when the product is stored for
extended periods.
• DO NOT attempt to repair this device; it contains no
user-serviceable parts.
• Keep this product out of reach of children.
WARNING! ALWAYS ensure that the operator is
not in contact with the ground while taking
measurements, using insulating materials to
prevent the current from earthing.
