Steel Mesh Garden Cart
Stock No.58552 Part No.GMC
06/2016ASSEMBLY INSTRUCTIONS
QTY: 4PCS. QTY: 2PCS. QTY: 2PCS.
'Handle beam.
( ) *Steel wheels. Side fences. Bed.
Carriage support
bolts
8mm × 16mm.
QTY: 8PCS. QTY: 1PC. QTY: 9PCS.
QTY: 5PCS. QTY: 1PC.
Nuts
8mm
.
QTY: 4PCS.
M12 Lock nuts.
Fence assembly
pins.
Washers
12mm,
17mm.
Pin.
&Bottom support.
+Front and back
fence.
Carriage support
bolt
8mm × 60mm.
Washer
8mm
QTY: 1PC. QTY: 1PC. QTY: 1PC.
QTY: 1PC.
QTY: 9PCS.
QTY: 8PCS.
QTY: 1PC.
%Axle bar.$Handle.

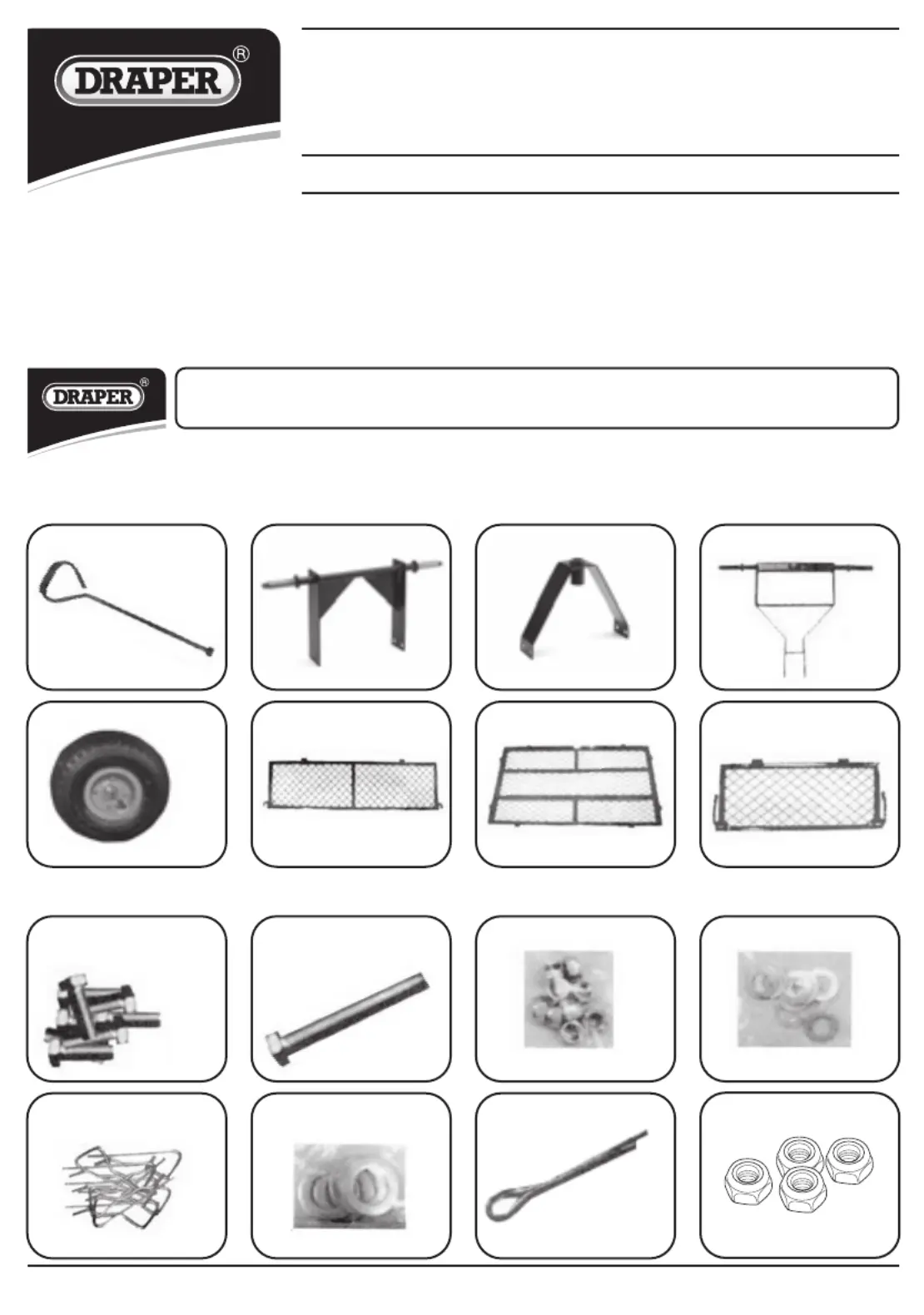

WHAT’S IN THE BOX?
PARTS LIST
Check that all parts are included with your Garden Cart prior to assembly.
HARDWARE LIST
CAUTION: Please read these assembly instructions fully BEFORE attempting to assemble this cart.
Failure to comply with these instructions may result in injury. Do not load the garden cart with more
than 200kg. Always distribute payload evenly over the surface of the bed. Do not operate or use on
objects that can cause damage to the pneumatic tyres. Do not inflate tyres to more than 30psi
(2.1bar). Save these instructions for further reference.
Warning:
This cart is not a toy. Do not allow children to play with this cart at any time.
Do not exceed maximum load capacity 200kg on level ground.
DRAPER TOOLS LTD, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HANTS. SO53 1YF. U.K. www.drapertools.com e-mail: sales@drapertools.com
SRDH0716
%
*

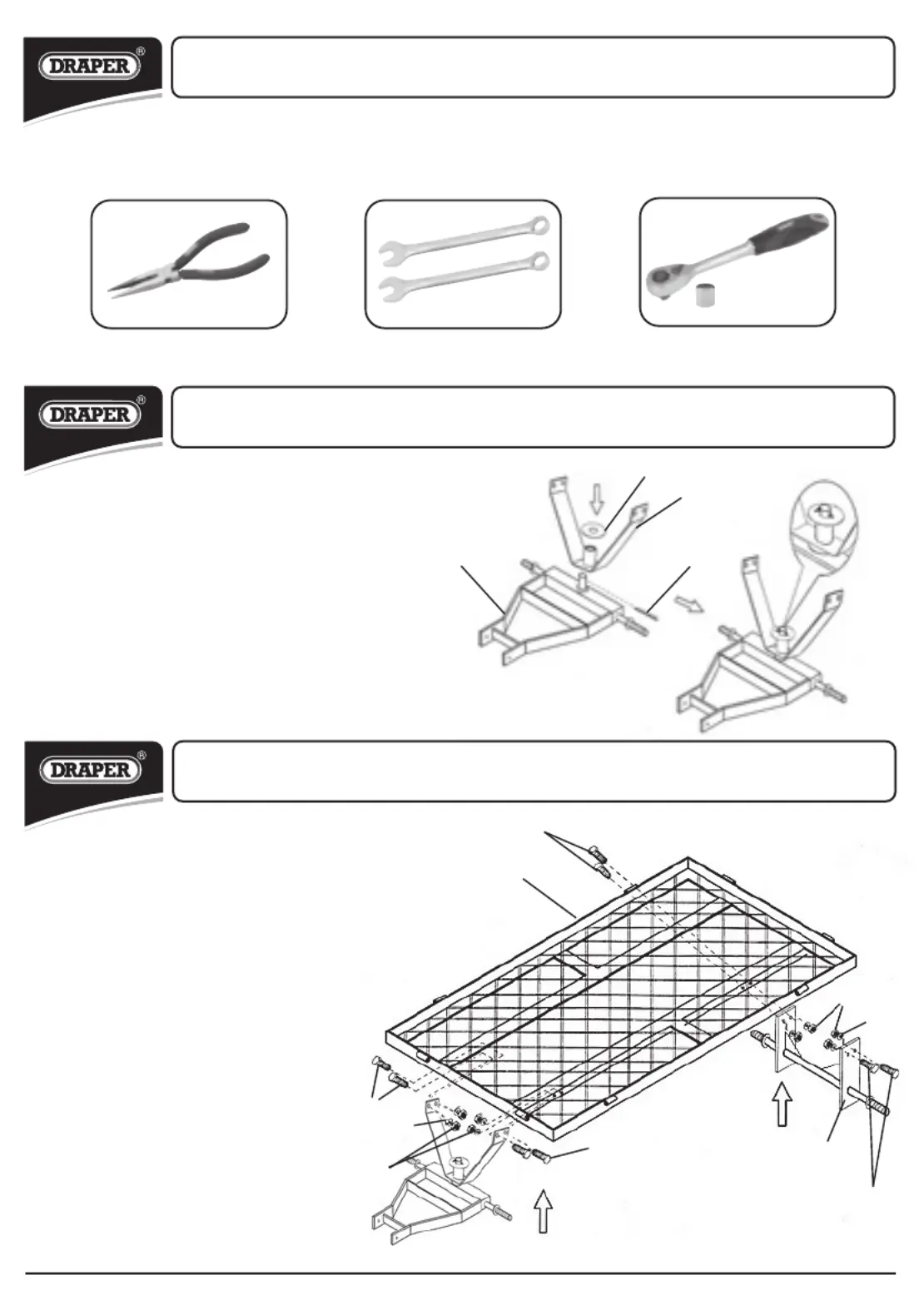

STEP 2: BED AND AXLE BAR
STEP 1: BOTTOM SUPPORT AND HANDLE BEAM
Assemble parts and together. & '
Use washer and pin to secure
as shown in the diagrams.
(1PC) Bottom support &
(1PC) Handle beam '
(1PC) Washers 17mm
(1PC) Pin
Connect assembled parts from step 1
to the front of bed
*, use carriage
support bolts
(4 PCS), nuts (4 PCS)
and washers to fasten to the bed.
Use remaining support bolts
, nuts
and washers
to fasten axle bar %
to the back of the bed.
(1PC) Axle bar %
(1PC) Bed *
(8PCS) Carriage support
bolts 8mm
×
16mm.
(8PCS) Nuts
(8PCS) Washer
8mm
&
'
PREPARATION FOR ASSEMBLY
As your garden cart requires assembly, first check off the included parts and fittings against the
listings on page 1 – ‘What’s in the box?’ section. Tools required for assembly include:
*Tools below are sold separately and shown for visual guidance only.
1 x 150mm
long nose pliers.
2 x 13mm spanners.
19mm Socket
and Ratchet
+ +
SRDH0716
DRAPER TOOLS LTD, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HANTS. SO53 1YF. U.K. www.drapertools.com e-mail: sales@drapertools.com

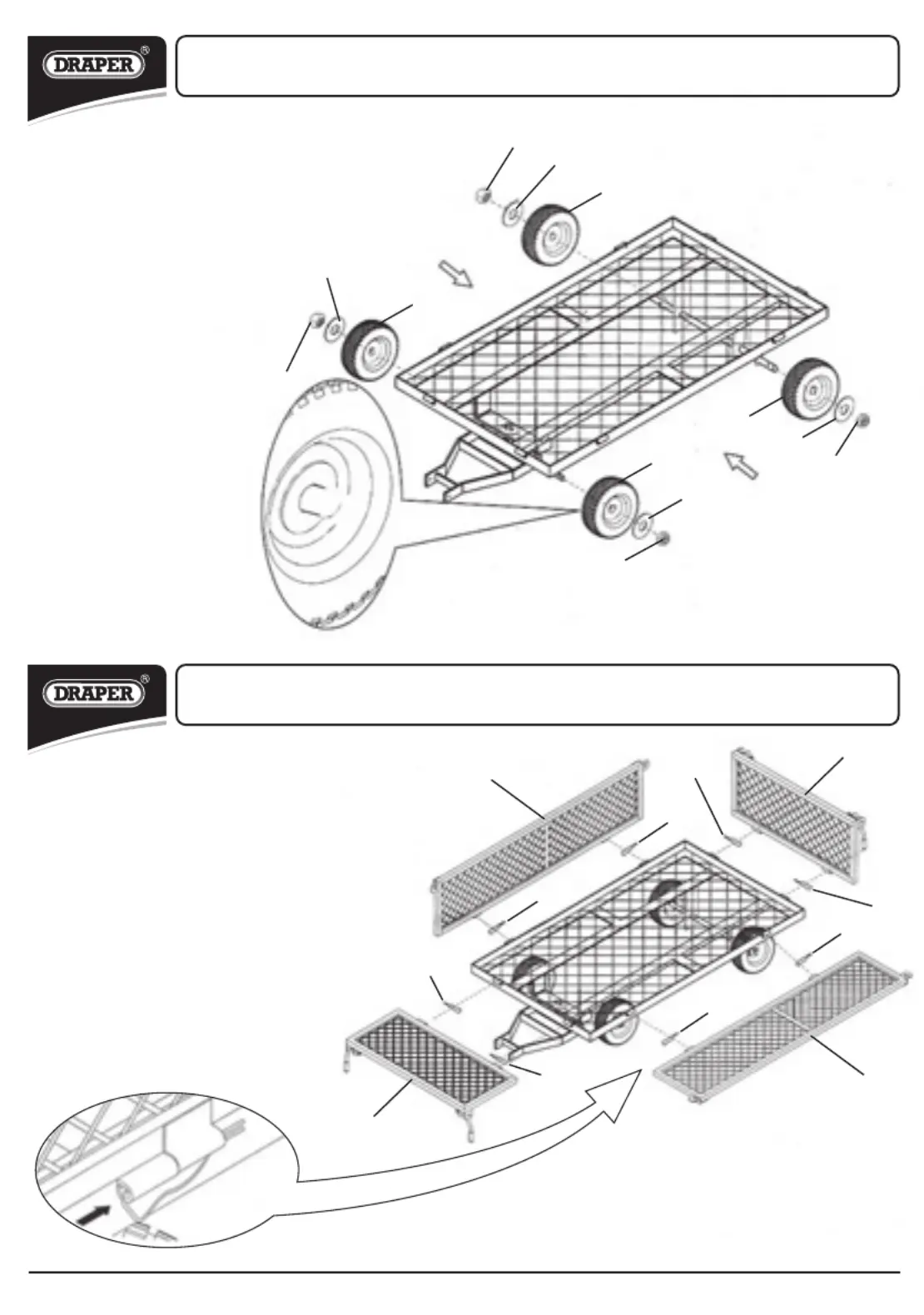

STEP 3: WHEELS
Connect the wheels to the axle bar at
the front and back as shown. Use
washers and nuts to secure each
wheel.
(4PCS) Wheels (
(4PCS) Washers
(4PCS) Nuts
STEP 4: FRAME
Lock side fence ) to sides of bed
using 4 assembly pins as shown.
Use remaining assembly pins to
secure the front and back fence +
to the bed.
(2PCS) Side fences )
(2PCS) Front and back fence +
(8PCS) Fence assembly pins
)
)
+
+
(
(
(
(
