HAND HELD

BRAKE PIPE

FLARING TOOL

3⁄16" SAE

23312 – BPF/HAND/SAE INSTRUCTIONS FOR USE

EN

Original Instructions

Version 1 – December 2023

Read this manual in full before using this product and retain it for future use. Always use the latest version of the manual.

Please visit drapertools.com/manuals for the latest version.

Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com Email: [email protected]

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK 0123

1. Intended Use

This product is designed to are brake pipes of 3⁄16" and

4.75mm according to SAE Convex and SAE Double

standards. Any other application beyond the conditions

established for use will be considered misuse. Draper Tools

accepts no responsibility for improper use of this product.

Important: Ensure that you are familiar with the various

types of ares and their applications before using this

product. ALWAYS consult the vehicle manufacturer’s

instructions before use.

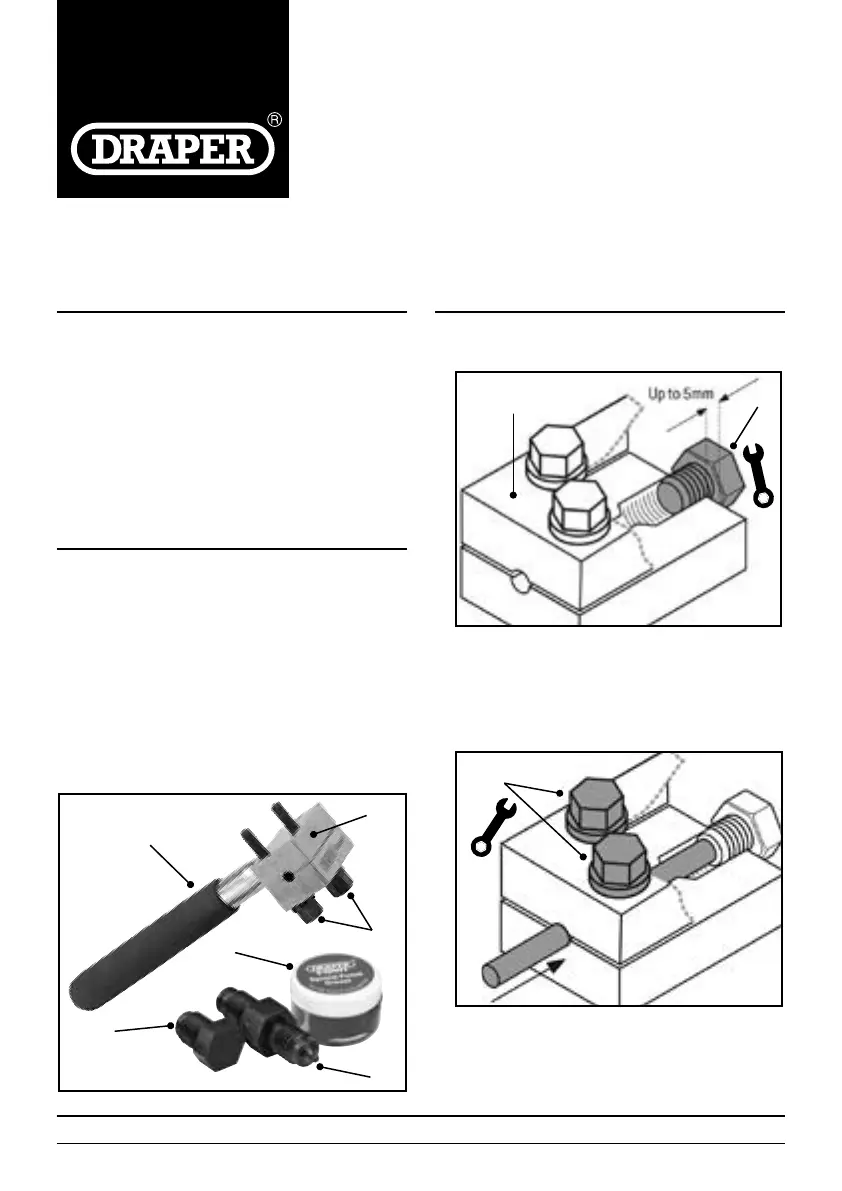

2. What’s in the Box?

Before assembling the product, lay the contents out and

check them against the parts listed below.

If any part is damaged or missing, do not attempt to use the

product; please contact the Draper Helpline.

A. 1 × Flaring tool

A1. Die

A2. Locking screws

B. 1 × Double-ended 3⁄16" punch

C. 1 × Stop punch

D. 1 × Punch grease

3. Operating Instructions

1. Partly screw the stop punch (C) into the aring tool so

that the nut is no more than 5mm from the die (A1).

1 Fig.

(C)

(A1)

2. Ensure that the tube nut is installed onto the brake pipe,

then insert the brake pipe into the open end of the die

and hand-tighten the locking screws (A2) just enough to

grip the pipe.

2 Fig.

(A2)

Important: DO NOT over tighten the locking screws at

this stage as the stop punch may damage the pipe.

(A)

(D)

(C)

(A1)

(A2)

(B)
