Original Instructions

Version 1

STRIPPER

CABLE SHEATH

Version 1: May 2025

Read this manual in full before using this product

and retain it for future use. Always use the latest

version of the manual. Please visit drapertools.

com/manuals for the latest version.

64333/CSS

Draper Tools

Draper Tools Limited

Hursley Road, Chandler’s Ford

Eastleigh, Hampshire, SO53 1YF UK

Delta International

Delta International BV

Oude Graaf 8

6002 NL

Weert

Netherlands

Website: drapertools.com

Email: [email protected]

Product Helpline: +44 (0) 23 8049 4344

Telephone Sales Desk: +44 (0) 23 8049 4333

General Enquiries: +44 (0) 23 8026 6355

© Published by Draper Tools Limited

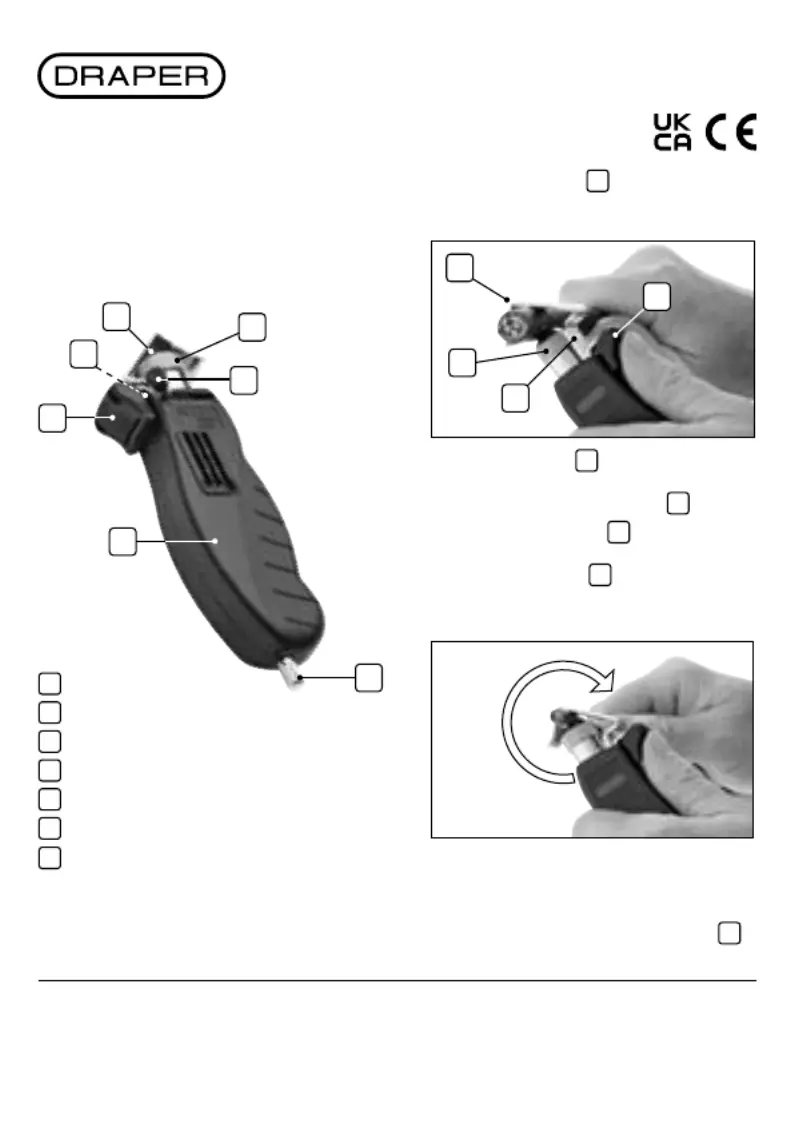

Identication

A

V-shaped cable holder

B

Adjusting nut

C

Insulation lever

D

Adjusting screw

E

Body

F

Pusher

G

Cable diameter guide

Intended Use

Designed to strip cable sheath on cables 6 to

25mm diameter. Fitted with self locking adjustable

cutting depth lever.

C

A

G

D

B

Instructions

1. Turn the adjusting nut

B

to get the correct

exposed length of blade for the cable and

blade height.

A

F

G

B

2. Turn adjusting screw

D

to get the approximate

cable diameter (not critical). This diameter is

indicated on cable diameter guide

G

.

3. Open the tool by pushing

F

upwards, and

insert the cable between the blade and the

V-shaped cable holder

A

, and release.

4. Rotate the tool 2 – 3 times in a clockwise

direction, to cut round the cable.

5. Swivel the blade by pushing the shaft, and pull

the stripper along the cable, to make a

longitudinal cut.

6. Use the sharp edge of the insulation lever

C

to lever insulation from conductor if necessary.

F

E
