Seite 1/25

DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com

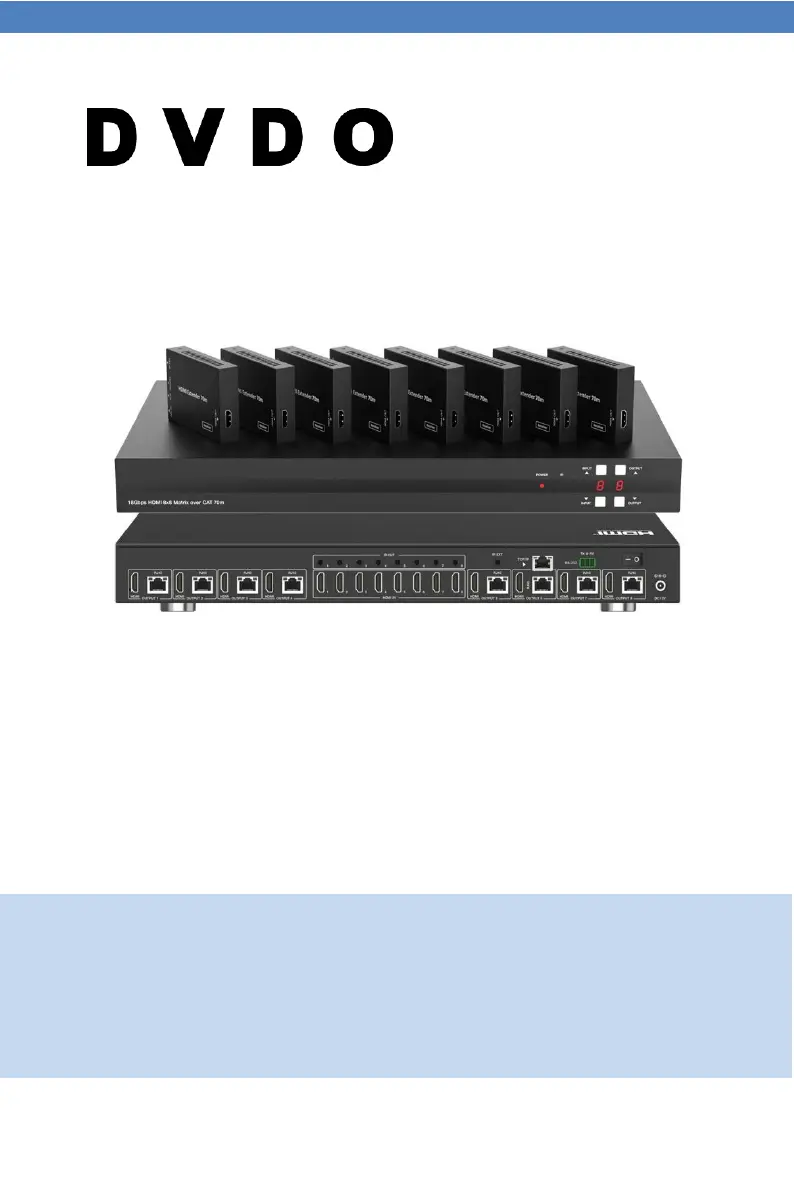

User Manual

Version v1.0

DVDO-Matrix-88-CAT

4K 8x8 HDMI Matrix Switcher with Mirrored Category Outputs

Thank you for purchasing DVDO-Matrix-88-CAT
For optimum performance and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.

Table of Contents
1. Introduction. ....................................................................................................................
1

2. Features. ..........................................................................................................................
1

3. Package Contents. ........................................................................................................
1

4. Specifications. ................................................................................................................
2

5. Operation Controls and Functions. ...............................................................................
3

5.1. Matrix Panel. ..........................................................................................................
3

5.2. CAT Receiver Panel. ..............................................................................................
4

6. IR Remote ........................................................................................................................
5

7. IR Cable Pin Assignment. ...............................................................................................
7

8. IR Control System............................................................................................................
7

9. EDID Management. ........................................................................................................
8

10. Web GUI User Guide. ...................................................................................................
10

11. RS-232 Control Command. ..........................................................................................
17

12. Application Example. ..................................................................................................
22
