User Manual

Version v1.0

DVDO-Matrix-88SS-VW

4K 8x8 Seamless HDMI Matrix Switcher & Video Wall Controller

with Audio Outputs

Thank you for purchasing DVDO-Matrix-88SS-VW
For optimum performance and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges,
electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to
protect and extend the life of your equipment.

Caution
The product requires the use of UTP connectors. Please connect in direct interconnection method and
do not cross connect.




White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown

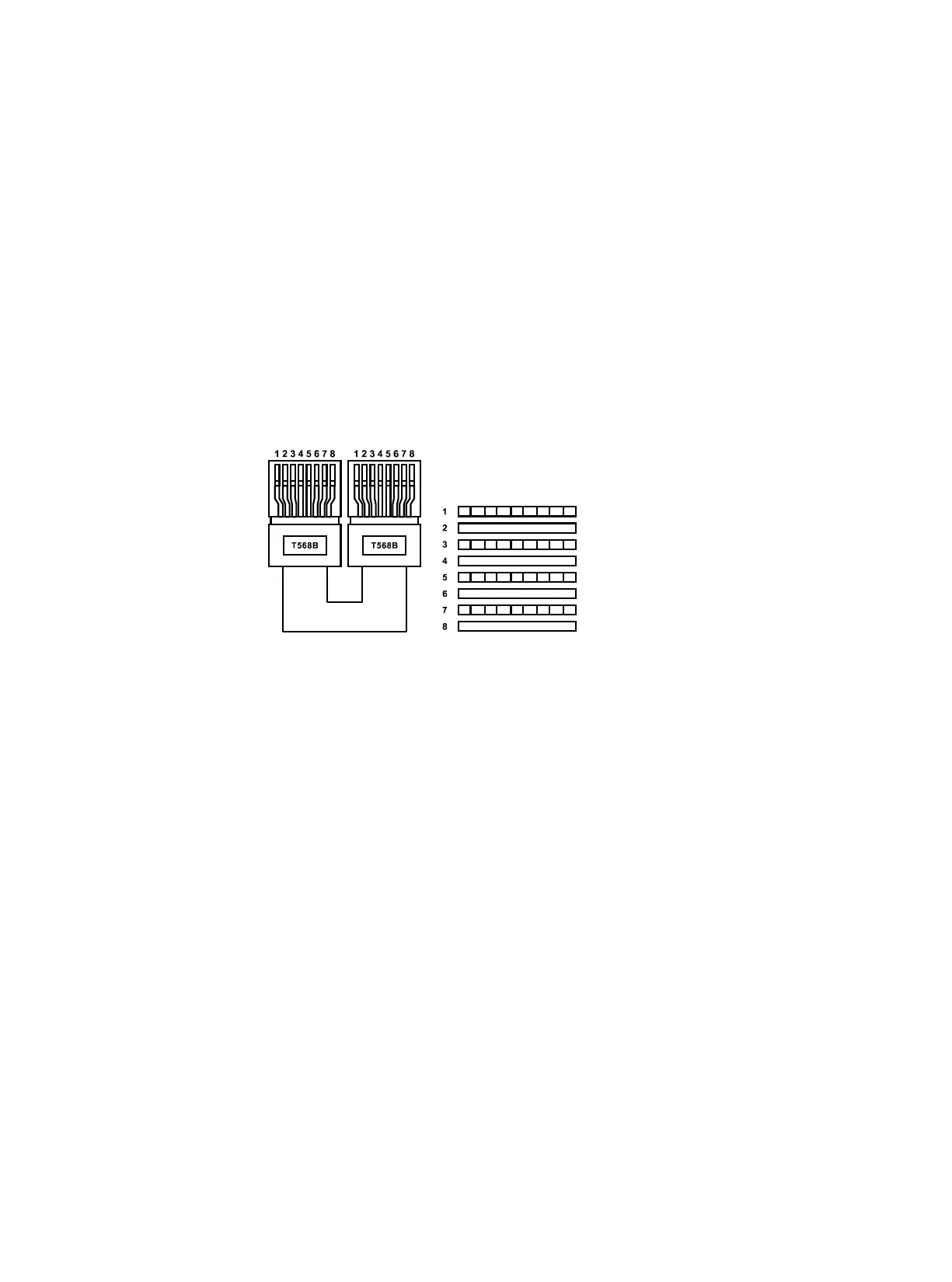

Direct Interconnection Method


Table of Contents
1. Introduction. ...................................................................................................................................... 1
2. Features. ........................................................................................................................................... 1
3. Package Contents. ........................................................................................................................... 1
4. Specifications. .................................................................................................................................................... 2
5. Operation Controls and Functions. .................................................................................................. 3
6. IR Remote. ........................................................................................................................................ 7
7. IR Cable Pin Assignment. ................................................................................................................. 8
8. EDID Management. .......................................................................................................................... 9
9. Web GUI User Guide. ....................................................................................................................... 11
10. RS-232 Control Command. ............................................................................................................ 23
11. Application Example. .................................................................................................................... 31
