The primary current ranges from 1A to 5000A with 3 selectable

scales. The CT1 setting depends on the current input of

Rogowski coils.

If the input of coils is 500A, the CT1 should be set to 0.5kA.

If the input of coils is 1000A, the CT1 should be set to 1kA.

If the input of coils is 5000A, the CT1 should be set to 5kA.

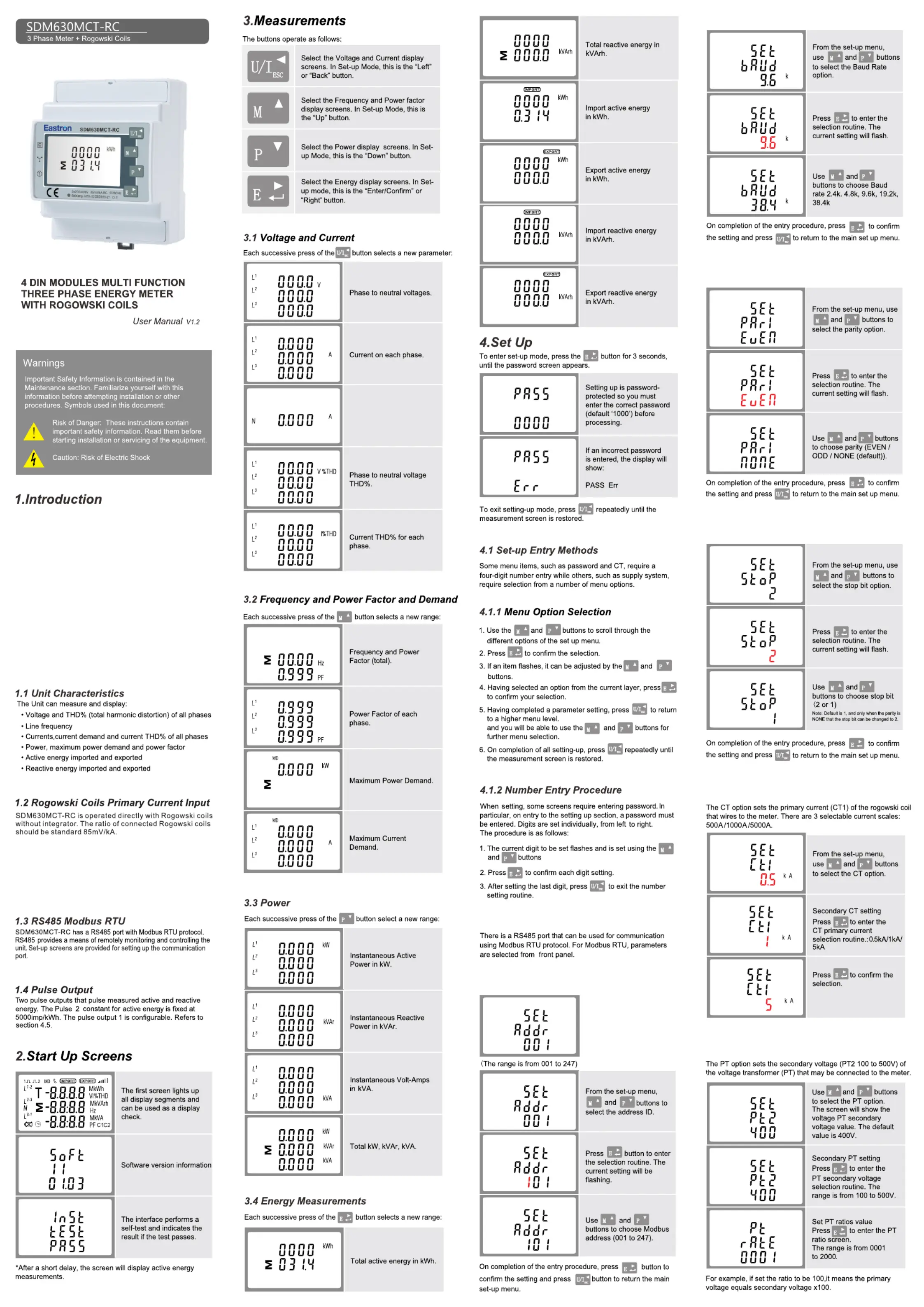

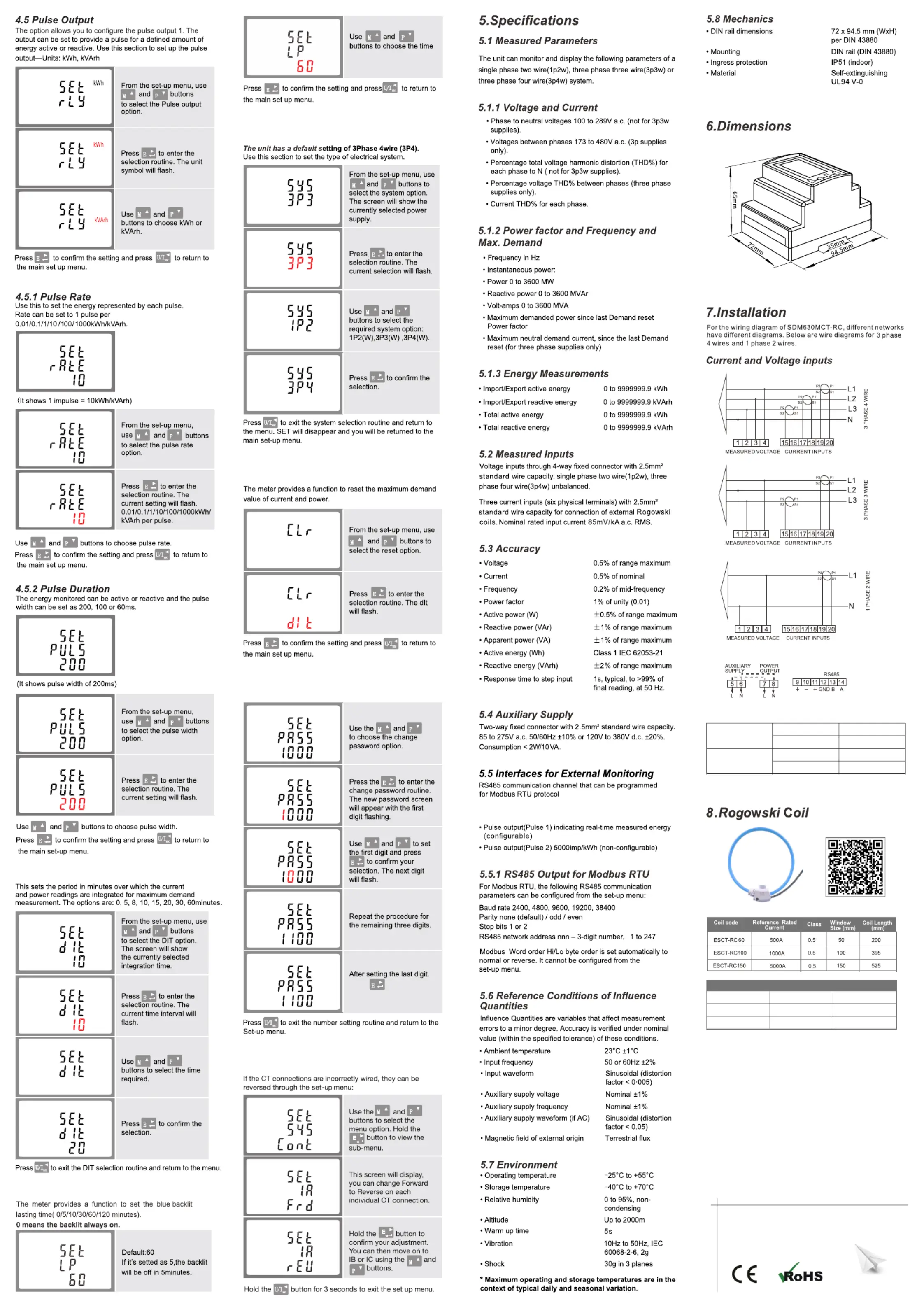

This document provides operating, maintenance and installation

instructions. The SDM630MCT-RC is an innovative instrument

for measurement and recording electrical parameters. It is

particularly suitable for consumption measurement and analysis

with high quality and stability. The meter directly connects with

Rogowski coils for current measurement without integrator. It

measures and displays the characteristics of single phase two

wire(1p2w) and three phase four wire(3p4w) networks. The

measuring parameters include voltage(V), frequency(Hz),

current(A), power(kW/kVA/kVAr), import, export and total

energy(kWh/kVArh).

The unit can also measure Maximum demand current and

power, which is measured over preset periods of up to 60

minutes.

SDM630MCT-RC can communicate through the RS485 serial

port by MODBUS RTU protocol. Configuration is password

protected.

Neutral Current

4.2 Communocation

4.2.1 RS485 Address

4.2.2 Baud Rate

4.2.3 Parity

4.2.4 Stop Bits

4.3 CT

4.4 PT
