Eastron SMARTconnect X835MV User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: sales@eastrongroup.com

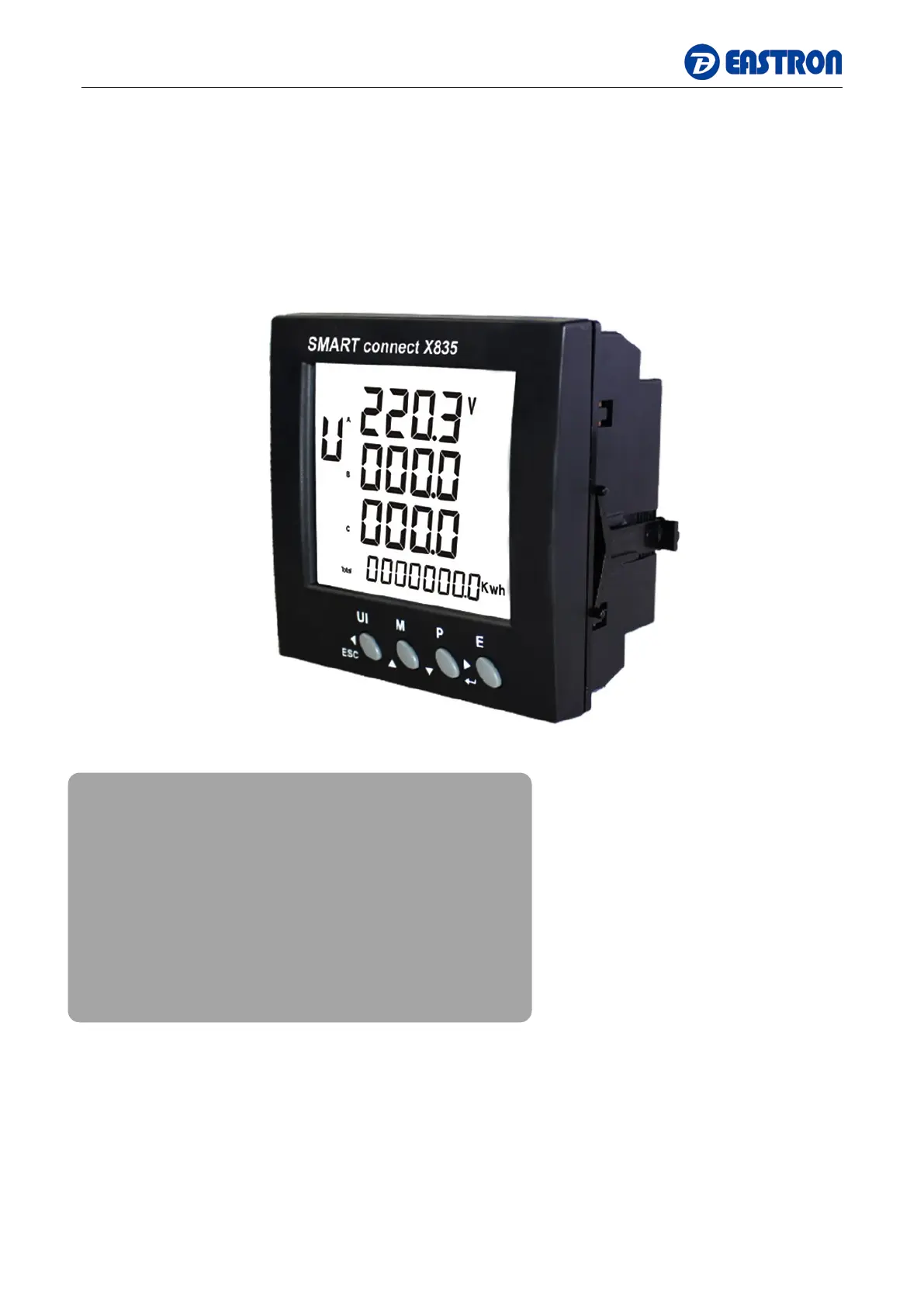

SMARTconnect X835MV
Smart Power Analyzer
Measures kWh, kVArh, kW, kVAr, kVA, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
Total harmonic distortion of voltage and current
RS485 Modbus communication
2 Pulse outputs
CT and PT operated
Plug-in solution saves 80% labor
Easy “clip-in”panel mounting
Self powered, no need auxiliary supply
USER MANUAL V3.5
Eastron SMARTconnect X835MV User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: sales@eastrongroup.com
Application
SMARTconnect X835MV is an economic solution three phase intelligent power analyzer. It used not only in the
electricity transmission and power distribution system, but also in the power consumption measurement and
analysis in low and medium voltage intelligent power grid.
This document provides operating, maintenance and installation instructions for SMARTconenct X835MV. The unit
measures and displays the characteristics of single phase two wire, three phase three wire and three phase four
wire supplies, including voltage, frequency, current, power, active and reactive energy, imported and exported
energy. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset
periods of up to 60minutes. The requisite current input(s) are obtained via current transformers (CT).
The SMARTconenct X835MV can be configured to work with a wide range of 333mV CTs, giving the unit a wide
range of operation. Built-in interfaces provide pulse and RS485 Modbus RTU outputs.
PART 1 Specification
Input
Norminal input voltage 50-276V AC(L-N) 87-480V AC(L-L)
Max.short duration input voltage 2x nominal voltage for 0.5 second
Nominal input voltage burden < 0.2VA per phase
Nominal input current 333mV
Nom. input current burden < 0.1VA
Max. continuous input overload current 120% of nominal
Max. short duration input current 20x nominal current for 0.5 second
Starting current 0.2% Ib
Operating range Self powered(from any of the three phases)
Supply burden <2W/ 10VA
Measured Range
Voltage(V) 50-276V AC(L-N) 87-480V AC(L-L)
Current(A) 5-120% of nominal
Frequency(Hz) 45- 66 Hz
Power(W, VAr, VA) 5-120% of nominal (bi-directional)
Energy 8 digits, up to 9999999.9kWh
Power factor 4 quadrants
THD 0-40% up to 63
rd
harmonic
