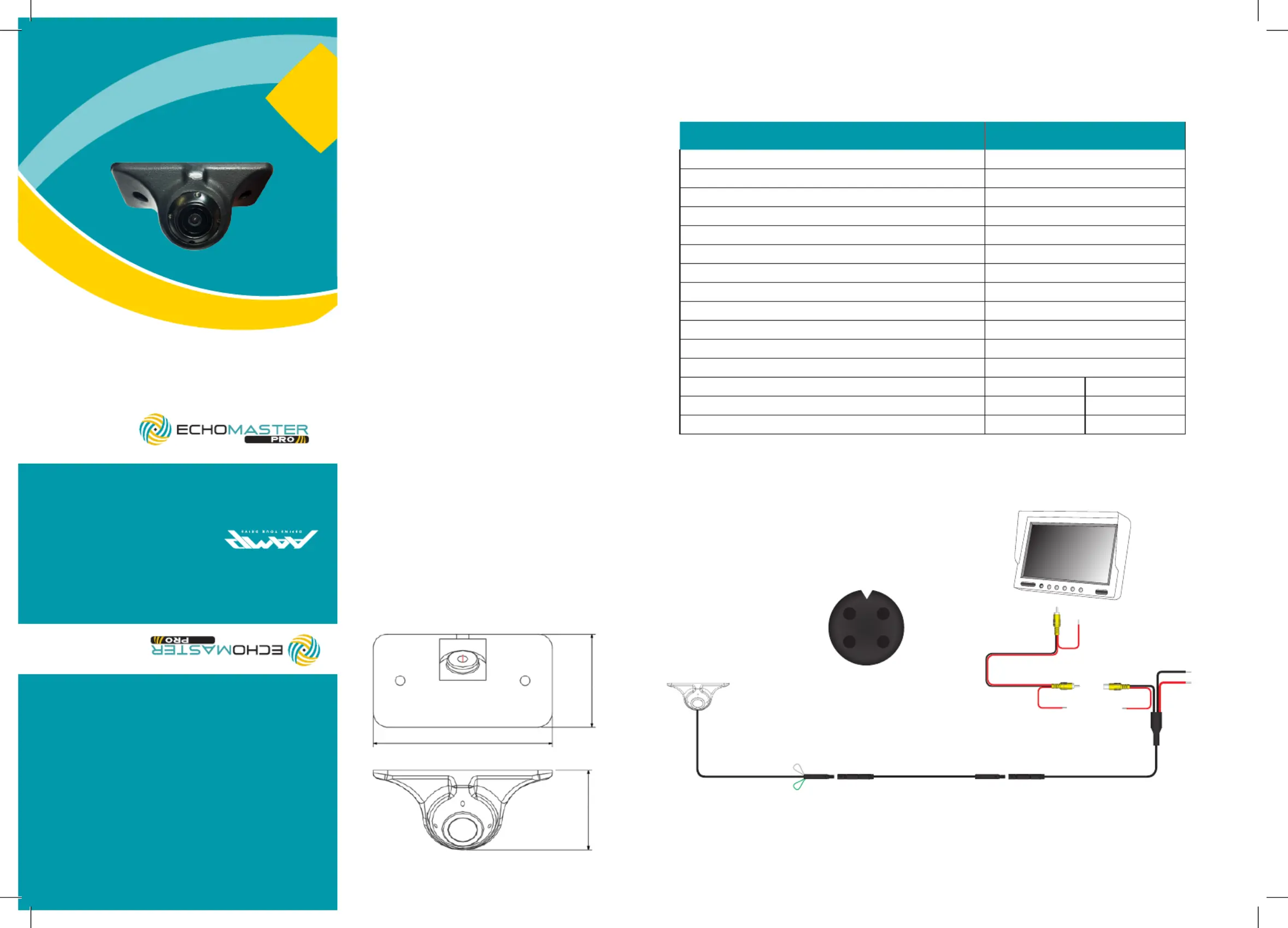

User Manual

Flexible Housing Self-Adhesive

Blind Spot Camera

PCAM-BS1

Introduction

Key Features

u 1/4” CMOS Sensor

u Operates at 0.1 LUX

u IP67 Rated

u 80 Degree Viewing Angle

u Self- Adhesive

u Angle Adjustment Tool

u Adjustable Camera Orientation

Box Contents

u Blind Spot Camera

u Mounting Hardware

u Manual

u U-Shaped Camera Angle Adjustment Tool

Wiring Diagram

Specications

Dimensions (mm)

PCAM-BS1P I PCAM-BS1-N

Sensor1/4” CMOS

IR0

Illumination0.1 LUX

Viewing Angle80 degrees

Mirror ImageYes

Normal ImageYes

Water/Debris-ProofIP67

AudioNo

Power Supply9-16V DC

Current70mA

Working Temperature-30ºC - +70ºC

Dimensions (mm)D (26) x W (50) x H (23)

SystemPALNTSC

TV Lines420420

Resolution (HxV)648 x 448648 x 448

Extension (sold separately)

Parking Lines (Green) On - Cut

O - Joined (Default)

Mirror Image (White) On - Cut (Default)

O - Joined

GND (Black)

VIDEO

+12V (Red)

+12V Out (Red)

+12V Out (Red)

50mm

26 mm

23mm

+V

GND

12

43

Video

Audio

15500 Lightwave Drive, Suite 202

Clearwater, Florida 33760

email - [email protected] (US)

email - [email protected] (Europe)

EchoMaster is a Power Brand of AAMP Global

EchoMaster.com

Thank you for purchasing your EchoMaster Pro

automotive camera.

This manual covers the following part numbers:

u PCAM-BS1-P

u PCAM-BS1-N

EchoMaster Pro cameras are designed to improve safety

during driving by providing high quality images of surrounding

areas and obstacles in the vicinity of the vehicle. They will also

improve vehicle maneuvering capability by displaying blind

spots not normally visible to the driver.

Please ensure you read and understand all aspects of

this manual before tting or using your EchoMaster Pro

Camera. Choose a suitable mounting place dependent on

the application. Ensure that there are no wiring harnesses or

hoses/pipes located behind this panel before drilling.
