ELAC Carina BS243.4 Bedienungsanleitung

ELAC Lautsprecher Carina BS243.4

Lies die bedienungsanleitung für ELAC Carina BS243.4 (36 Seiten) kostenlos online; sie gehört zur Kategorie Lautsprecher. Dieses Handbuch wurde von 22 Personen als hilfreich bewertet und erhielt im Schnitt 4.3 Sterne aus 11.5 Bewertungen. Hast du eine Frage zu ELAC Carina BS243.4 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Download PDF

Seite 1/36

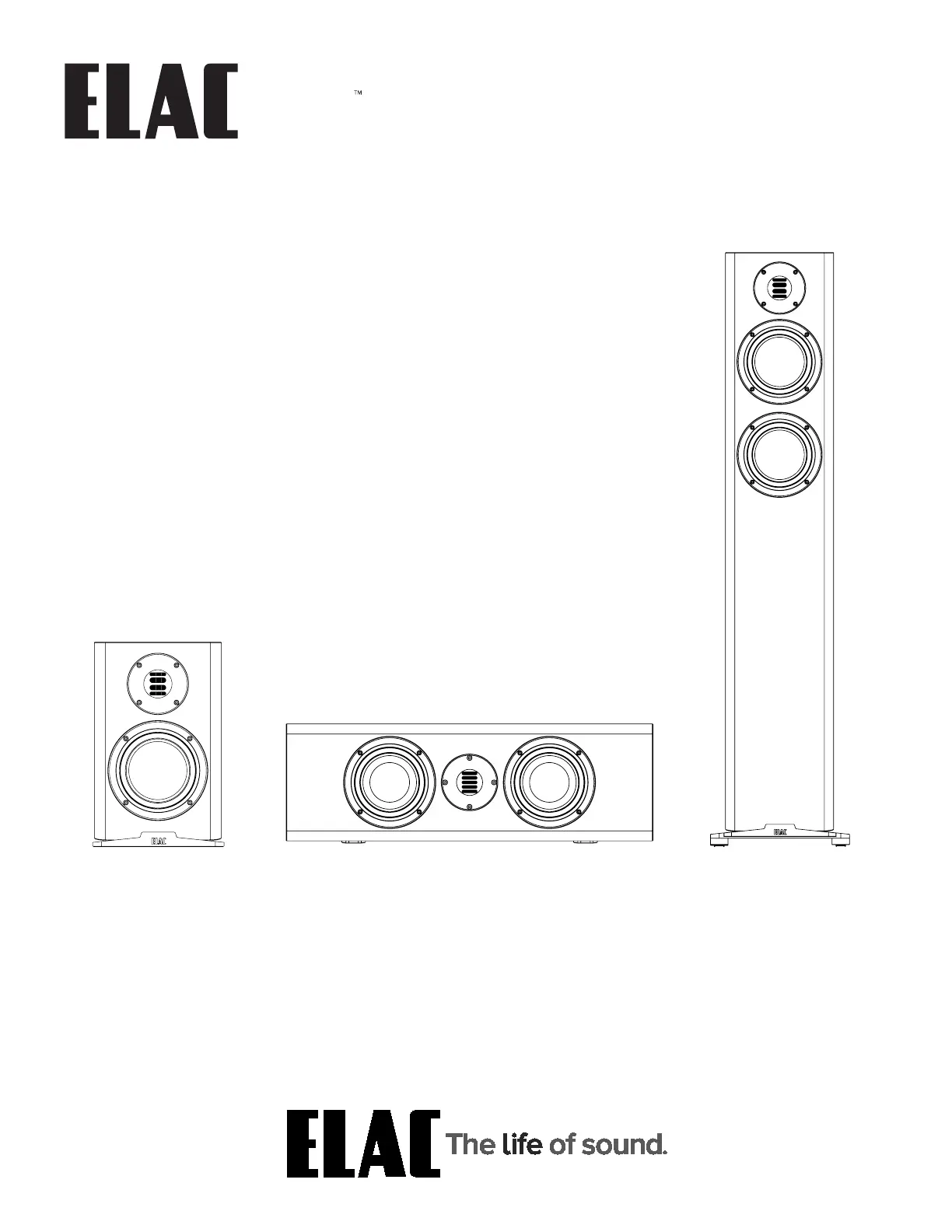

BS243.4 BOOKSHELF SPEAKER

FS247.4 FLOORSTANDING SPEAKER

CC241.4 CENTER CHANNEL SPEAKER

OPERATING INSTRUCTIONS

Carina Series

Ver. 1.0

ELAC Carina Speakers | www.elac.com | Page 1

SAFETY INSTRUCTIONS

1. General information

• Please read and follow these safety instructions.

• Keep them safe for future reference.

• Observe all warnings on the speaker and in the manual. Please check the speaker for damage before

use. The speaker must be in perfect working condition. Damaged parts may lead to personal injury.

2. Use only as directed

• Connect the speaker(s) according to the instructions in the manual.

• Many ELAC speakers are equipped with spikes and/or anti-slip feet. They are explicitly provided for

leveling the speaker. For leveling on an uneven ﬂoor, unscrew the spikes or anti-slip feet by 2-3 turns of

thread. The speaker should always be in perfect vertical alignment: the stability of the speaker must not

be compromised by using spikes or anti-slip feet as the speaker may tip-over.

3. Location

• Install the speakers on a level surface only

• When choosing the location of these speakers do not place them in locations that are:

• In direct sunlight

• Very humid

• Prone to vibrations

• Exceptionally hot or cold

• Near CRT Televisions (the speakers are not magnetically shielded and may cause color issues

with a CRT based TV)

• Close to magnetic cards (Since the speakers are not magnetically shielded placing magnetic

cards such as credit cards or commuter cards may cause them to fail).

WARNING! Please ensure the product is perfectly stable to avoid injury from tip-over. Please note, that stability

can be increased by using spikes on carpeted surfaces. However, the mounting of spikes must be carried out

carefully due to their very sharp ends which may cause injuries. The stability on slippery ﬂoors can be increased

by using Velcro fastening tape or double-sided adhesive tape. Do not install the speaker near any heat sources

such as radiators, heating valves, stoves, or other apparatus (including ampliﬁers) that produce heat, or in areas

where there is a risk of explosion.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install the speaker in a closed rack or in a closed cupboard.

• Do not put burning candles on or near the speaker.

• Do not install the speaker near transformers because electromagnetic stray ﬁelds can cause hum noise

on woofers.

• In combination with certain materials / lacquers / material surfaces, anti-slip feet or spike washers may

cause colored imprints on the surfaces.

4. Overload

Extreme overload of the device due to very high volume may cause damage to individual components. Because

of the possible danger, you should never leave loudspeakers under extreme overload conditions unattended.

ELAC Carina Speakers | www.elac.com | Page 2

5. Service

DANGER! Do not open the cabinet because the components and conductors may carry current! Servicing to be

carried out by qualiﬁed service personnel only.

Servicing is required when the loudspeaker has been damaged in any way, such as damage to the power supply

cord or the plug, or when liquid has been spilled or objects have fallen onto the loudspeaker, the speaker has

been exposed to rain or moisture, does not operate normally, or has been dropped. To reduce the risk of electric

shock, do not open the loudspeaker. Servicing should be carried out by qualiﬁed service personnel only.

6. Cleaning

NOTE: Clean only with a soft, smooth cloth or with a dust brush. Do not use scouring agents, alcohol, benzene,

furniture polish or other agents for cleaning! Modern furniture is often coated with multiple varnishes and

plastics which can be treated with chemical agents. Some of these agents contain substances which degrade or

soften the rubber feet. Therefore we advise that you place an anti-slip mat underneath the loudspeaker(s).

7. Volume

CAUTION! Continuous high volume may cause severe damage to your hearing. Please listen responsibly.

8. Disposal

The packaging is made from recyclable materials. Dispose of this in an environmentally friendly manner. At the

end of life do not dispose of the speaker(s) with standard household waste. The speaker must be recycled in

accordance with local legislation. Ask your local government for further information on recycling as the device

contains valuable raw materials. Disable the speaker(s) before disposal.

Produktspezifikationen

Marke:	ELAC
Kategorie:	Lautsprecher
Modell:	Carina BS243.4
Bluetooth:	Nein
Breite:	216 mm
Tiefe:	245 mm
Gewicht:	6700 g
Empfohlene Nutzung:	Universal
Produktfarbe:	Schwarz
Übertragungstechnik:	Kabelgebunden
Impedanz:	6 Ohm
Höhe:	319 mm
RMS-Leistung:	100 W
AC Eingangsspannung:	2.83 V
Zertifizierung:	CE
Audio Kanäle:	1.0 Kanäle
Anzahl des Antriebs:	2
Frequenzbereich:	46 - 30000 Hz
Woofer:	Ja
Tieftönerdurchmesser (imperial):	5 "
Hochtöner:	Ja
Lautsprecherplatzierung:	Tischplatte/Bücherregal
Anzahl der Hochtöner-Antriebe:	1
Anzahl der Tieftöner-Antriebe:	1
Hochtönerdurchmesser:	150 mm
Empfindlichkeit:	85 dB
Übergangsfrequenzen:	2700 Hz
Lautsprechertyp:	2-Wege
Bass-Reflex:	Ja
Treiberdurchmesser Mitteltöner (imperial):	1.4 "
Empfohlene Verstärkerleistung (max):	150 W
Empfohlene Verstärkerleisung (min):	30 W
