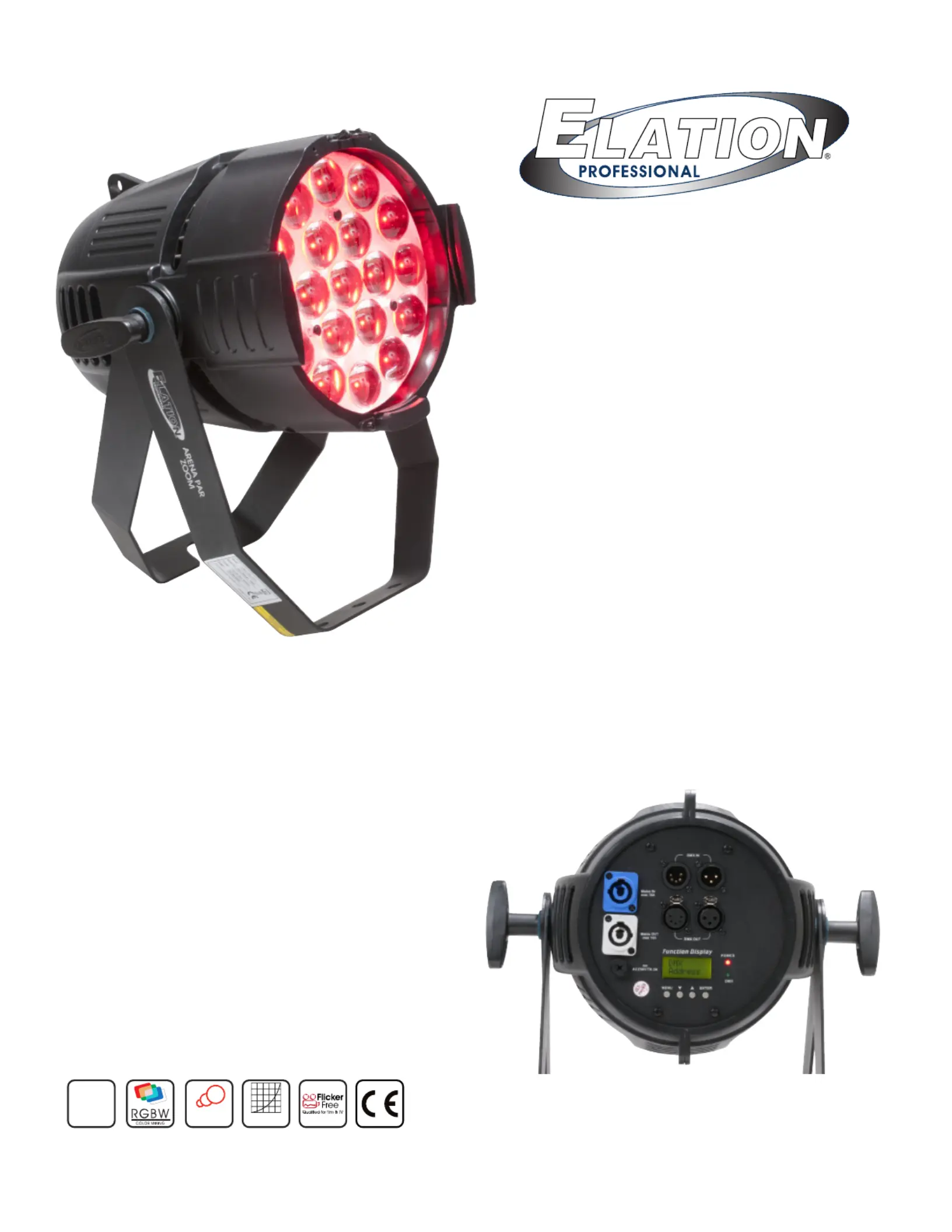

ARENA PAR ZOOM
SKU# ARE801
The new Arena Par Zoom™ features (19) 10W QUAD
Color LEDs fr
om Osram™, 10° to 60° motorized zoom,
electronic dimming and variable dimming curves,
selectable color temperatures (3,200K - 7,200K), icker
free operation for TV and FILM, 3 and 5pin in/out DMX
and ower in/out connections, 4 button P Cable
touch control panel, integrated dual rigging yoke /
floor stand, linkable power for up to 4 units at 120V and
up to 8 units at 230V, 220W max power consumption,
and a multi-voltage universal auto switching power
supply (100-240v).
FEATURES
1000-Watt Comparable Output LED PAR 64
19 x 10W Quad Color (RGBW) LEDs
10° - 60° Motorized Zoom
Electronic Dimming and Variable Dimming Curves
Selectable Color Temperatures (3,200K- 7,200K)
Flicker Free Operation for TV and FILM
Integrated Dual Rigging Yoke / Floor Stand
Power Link Up To (4) Units at120V (8) Units at 230V
Optional Barn Door
Specications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

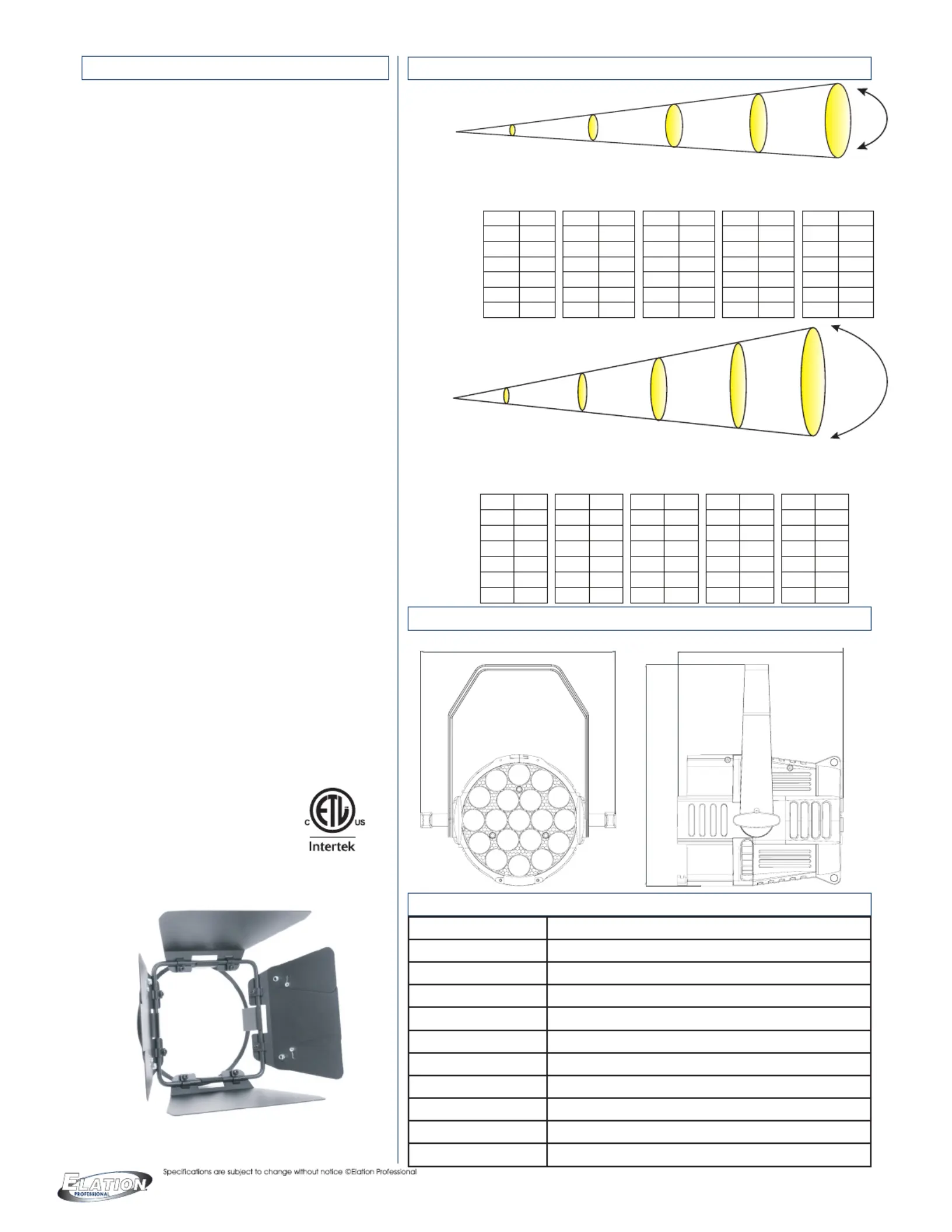

ELATION I ARENA PAR ZOOM I Product Specification Sheet
IP20
VARIABLE
D IM M I N G CU R V E
z o o m
FEATURES
1000-Watt Comparable Lumens Output
Motorized 10° - 60° Zoom
Variable Dimming Curves
Selectable Color Temperatures (3,200K - 7,200K)
Flicker Free Operation for TV and FILM
SOURCE
19x 10W Osram™ QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
12,600 LUX @3M 10° Min Zoom
900 LUX @3M 60° Max Zoom
EFFECTS
Strobe + Variable Strobe Macros
Electronic Dimming and Variable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
7 DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16)
3pin & 5pin DMX In/Out
4 Button Control Panel
LCD Menu Display
Power In/Out
Power Link Up To (4) Units at 120V (8) Units at 230V
SIZE / WEIGHT
Length: 12.8” (324mm)
Width: 10.9” (276mm)
Vertical Height: 14.5” (368mm)
Weight: 15.9 lbs. (7.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
220W Max Power Consumption
-4°F (-20°C) to 104°F (40°C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Dual Yoke / Floor Stand
Yoke Hole Diameter: 0.47” (12mm)
Working Position: Any (360°)
INCLUDED ITEMS
6 ft (1.8m) Power Cable
12.8” (324mm) 10.9” (276mm)
)mm863( ”5.41
sp atecific ions
I
ELA R TION A NA PARE ZOOM
I
www.elationlighting.com
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
DI L I RAMMEN ONASI D AG
OP ONA ESTI L ACC SO ESRI
PR A SODUCT SPECIFIC TION
PHOT TAOMETRIC DA
60°
Beam
1m
2m
3m
4m
5m
m ft m ft m ft m ft m ft
Distance
1 3.3 2 6.6 3 9.8 4 13.1 5 16.4
60° Beam Diameter 1.7 5.6 3 9.8 4.4 14.4 5.8 19.0 7.5 24.6
lux fc lux fc lux fc lux fc lux fc
RED LEDs 1,000 93 2,800 260 130 12 84 8 55 5
GREEN LEDs
3,000 279 800 74 380 35 220 20 140 13
BLUE LEDs
1,100 102 31 3 16 1 10 1 8 1
WHITE LEDs
3,600 334 951 88 460 43 250 23 170 16
FULL ON
7,200 669 2,000 186 900 84 540 50 360 33
MAX ZOOM
10°
Beam
1m
2m
3m
4m
5m
m ft m ft m ft m ft m ft
Distance
1 3.3 2 6.6 3 9.8 4 13.1 5 16.4
10° Beam Diameter 0.4 1.3 0.5 1.6 0.7 2.3 0.9 3.0 1.1 3.6
lux fc lux fc lux fc lux fc lux fc
RED LEDs 8,500 790 4,200 390 1,700 158 970 90 620 58
GREEN LEDs
26,000 2,415 10,800 1,003 5,000 465 2,700 251 1,700 158
BLUE LEDs
8,800 818 380 35 160 15 90 8 63 6
WHITE LEDs
31,500 2,926 1,400 130 6,000 557 3,300 307 2,100 195
FULL ON
65,000 6,039 29,500 2,741 12,600 1,171 6,900 641 4,400 409
MIN ZOOM
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
BD-08 Barn Door
EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver)
EWDMXT Wireless DMX Transmitter
EWDMXR Wireless DMX Receiver
PLC3
3’ (1m) PRO Link Cable
PLC6 6’ (1.8m) PRO Link Cable
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
AC5PDMX10PRO 10 ft. (3m) 5pin PRO DMX Cable
Additional Cable Lengths Available
Optional Barn Door
4000358
Produktspezifikationen
