Seite 1/3
F t neaturing he ew
MSD P 5r latinuM
PLATINUM BEAM
5R PRO
Wide Frost
(
Hybrid
)
and eWdMX
Sku# EPB832
Specications are preliminary & are subject to change without notice ©Elation Professional • Los Angeles, Ca USA • Kerkade, Netherlands
www.elationlighting.com
Toll Free
(
866
)
245-6726
The Platinum Beam 5R Pro is a compact, light weight, high power
ACL beam aerial effect moving head xture. Featuring a Wide Frost
(
Hybrid
)
and EWDMX, the new MSD Platinum 5R lamp from Philips a
189W lamp offering output comparable to 575W xtures and with
the specialized optical design in the Platinum Beam 5R creating
a concentrated beam of light “ACL / Searchlight” type effect, it
competes even with the most powerful units on the market. Featuring
12 dichroic colors, 8 Rotating indexing gobos, Rotating 8 facet prism,
Frost Filter for “wash” effect and lighting fast 3-phase motors for pan/tilt.
Product Features
• Wide Frost
(
Hybrid
)
• EWDMX
• Extreme ACL / beam effect
• 2.5° Beam angle
• Rotating gobos and 8 facet prism
• Frost effect for wash
• Featuring new Philips MSD Platinum 5R lamp
• 12 dichroic colors
• 8 rotating replaceable rotating / indexing gobos
• Gobo Size 14mm OD / 8mm ID
• 3 Facet rotating prism
• Frost lter (hybrid effect for wash)
• ETL listed
Technical Specifications
• DMX Channels: 11/13/16
- 3 x DMX channel modes
• Control: 3-pin & 5-pin DMX
• Dimmer: Mechanical Dimmer 0-100%
• Strobe: Variable speed Shutter / Strobe
• Pan/Tilt: 540/630 x 265
• Power Supply: 120v-240V 50/60hz
• Power Consumption: 350W MAX
• Lamp: MSD Platinum 5R Philips
• Lamp life: 2,000hr
• Lux: 28,360 Lux / 2,634 fc @ 75’
• Dimensions: ( L x W x H ) 14.1” x 13.2” x 18.5 /
358 x 335 x 470 mm
• Weight: 34.2 lbs / 15.5 kg
PLATINUM BEAM
5R PRO
Wide Frost
(
Hybrid
)
and eWdMX
Sku# EPB832
Specications are preliminary & are subject to change without notice ©Elation Professional • Los Angeles, Ca USA • Kerkade, Netherlands
www.elationlighting.com
Toll Free
(
866
)
245-6726

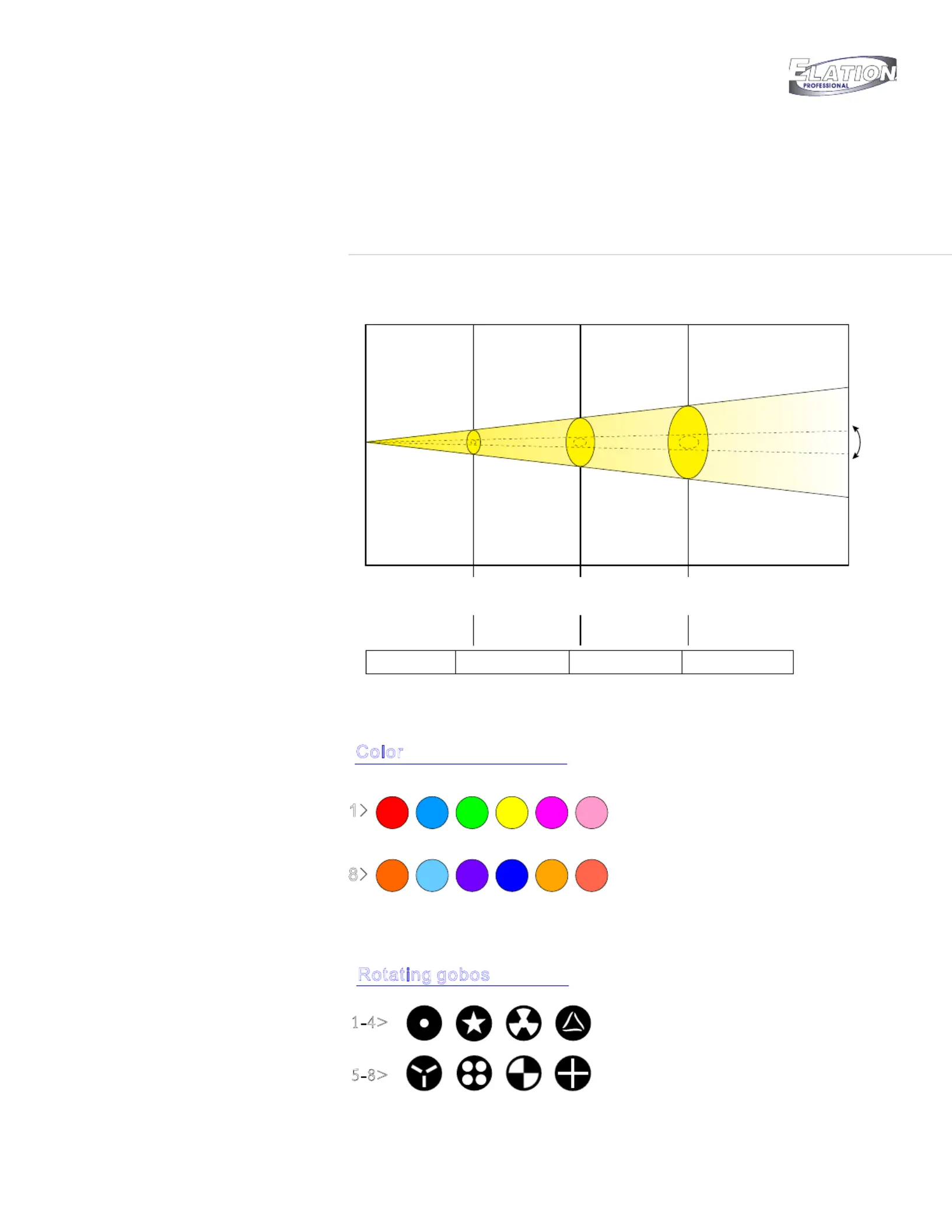

Colors and Gobos
Photometric Data
1 4- >
5 8- >
Color
Rotatin obosg g
1
>
8
>
5207 FC / 56230 LUX 2635 FC / 28360 LUX 1680 FC / 18080 LUX
2.5° Beam Angle
0 m
0 ft
2.5 m
8.20 ft
7.5 m
24.60 ft
5.0 m
16.40 ft
Ø 0.65 m / Ø 2.13 ft
Ø 0.86 m / Ø 2.82 ft Ø 1.06 m / Ø 3.50 ft
Beam Diameter
2.5° Beam Angle
PLATINUM BEAM
5R PRO
Wide Frost
(
Hybrid
)
and eWdMX
Sku# EPB832
Specications are preliminary & are subject to change without notice ©Elation Professional • Los Angeles, Ca USA • Kerkade, Netherlands
www.elationlighting.com
Toll Free
(
866
)
245-6726
DMX Traits
Value Function
STAND BASIC EXTEND
PAN MOVEMENT [8 Bit]
0-255
PAN Movement By 360/540
PAN MOVEMENT [16 Bit]
0-255
Fine Control Of PAN Movement
TILT MOVEMENT [8 Bit]
0-255
TILT Movement By 270
TILT MOVEMENT [16 Bit]
0-255
Fine Control Of TILT Movement
COLOR WHEEL
0-9 Open / WHITE
10-19 Color 1
20-29 Color 2
30-39 Color 3
40-49 Color 4
50-59 Color 5
60-69 Color 6
70-79 Color 7
80-89 Color 8
90-99 Color 9
100-109 Color 10
110-119 Color 11
120-129 Color 12
128-189 Forward Rainbow Effect From FAST to SLOW
190-193 No Rotation
194-255 Backward Rainbow Effect From SLOW to FAST
COLOR WHEEL FINE ADJUSTMENT
0-255 Color Wheel FINE Adjustment to Any Position
ROTATING GOBOS, CONTINOUS ROTATION
0-9 Open
10-19
Rotating Gobo 1
20-29
Rotating Gobo 2
30-39
Rotating Gobo 3
40-49
Rotating Gobo 4
50-59
Rotating Gobo 5
60-69
Rotating Gobo 6
70-79
Rotating Gobo 7
80-89
Rotating Gobo 8
90-104
Rotating Gobo 1 SHAKE
105-119
Rotating Gobo 2 SHAKE
120-134
Rotating Gobo 3 SHAKE
135-149
Rotating Gobo 4 SHAKE
150-164
Rotating Gobo 5 SHAKE
165-179
Rotating Gobo 6 SHAKE
180-194
Rotating Gobo 7 SHAKE
195-209
Rotating Gobo 8 SHAKE
210-255
Rotating Gobo Wheel Continous Rotation SLOW to FAST
ROTATING GOBOS, INDEX ROTATION
0-127 Gobo Indexing
128-189
Forward Gobo Rotation from FAST to SLOW
190-193
No Rotation
194-255
Backward Gobo Rotation from SLOW to FAST
ROTATING GOBO, INDEX FINE ADJUSTMENT
0-255
Gobo Fine Indexing
ELATION - PLATINUM BEAM 5R PRO [ver 1.0]
DMX Channel Functions / Values
Mode/Channel
111
2 2
323
6
5
4 4
35
9
647
758
