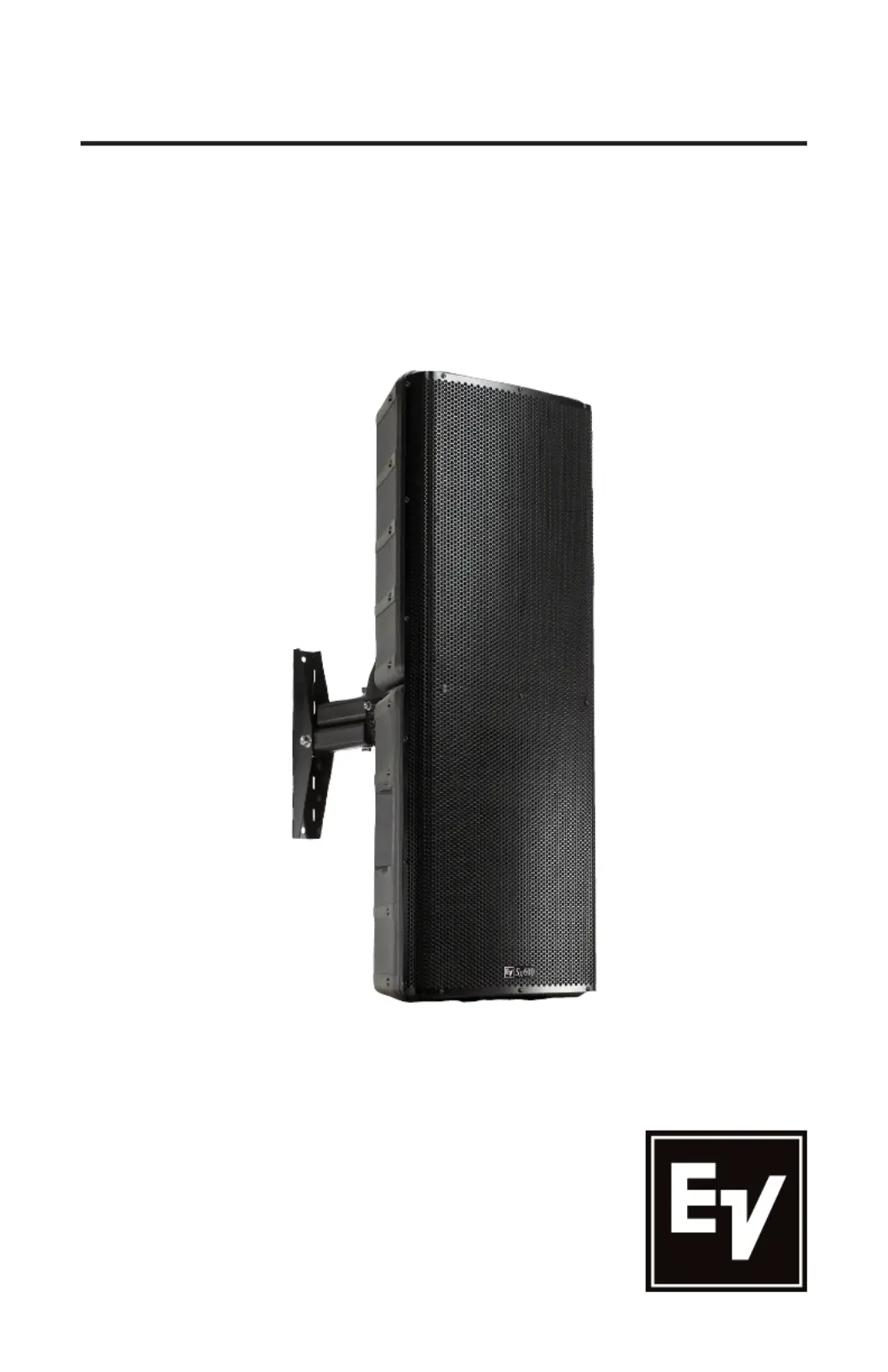

Sx600 User Manual
Table of Contents
Product Description .................................................................................................... 1
Important Features ....................................................................................................... 1
Product Feature Identification ................................................................................... 2
System Acoustic Design Considerations ............................................................... 3
Installation Precautions ............................................................................................... 4
Installation Notes.......................................................................................................... 4
Pole Mounting ............................................................................................... 5
Block Wall Mounting ................................................................................... 5
Stud Wall Mounting ..................................................................................... 6
I-Beam Mounting .......................................................................................... 6
Mounting Surface Reinforcement ............................................................. 6
Installation Procedure ................................................................................................. 7
Step 1: Selection and Preparation of the Mounting Surface ............. 7
Step 2: Mounting the SuperSAM
TM
Bracket .......................................... 7
Step 3: Mounting the Speaker and Aligning ......................................... 7
Step 4: Completing the Electrical Connections ................................... 8
Step 5: System Adjustment and Acoustic Tuning .............................. 10
Appendix A: Troubleshooting .................................................................................. 10
Appendix B: Warranty Statement ..........................................................................12
Appendix C: Technical Specifiations .....................................................................13
TOC Electro-Voice Sx600 User Manual
Product Description
The Sx600 Series is a remarkably flexible indoor/outdoor speaker system
designed to produce high-fidelity high-level audio in distributed applications
such as stadiums, racetracks, amusement parks, fairgrounds, etc. Utilizing
a 65° x 65° high frequency horn and a unique 2-element vertical midbass
array, Sx600 gives you the clarity of a direct radiator with the high SPL and
directivity of a properly designed horn system, especially in the important
vertical plane. While intended primarily for vocal applications, the Sx600
accurately reproduces music if heavy bass is not required.
Important Features
The Sx600 is available as either a conventional 4 ohm low impedance
system, the Sx600PI, or as a “constant voltage” system, the Sx600PIX. The
PIX version features a 100% duty cycle rated 600 watt full isolation line
transformer for operation with 70volt, 100volt, 140volt, or 200volt distrib-
uted systems.
The Sx600 comes with an all-new Super Strong Arm Mount, called the
SuperSAM
TM
. This exclusive 2-part EV mounting system allows the installer
to pre-set the exact down angle on the ground, fasten the separate mount-
ing bracket by itself, and then mount the speaker to the bracket quickly and
easily with a single bolt, setting the pan angle anywhere within a 180° arc in
the process.
The three-layer stainless steel grill design is an acoustically transparent yet
effective barrier to both condensation and heavy rain. The light-weight poly-
propylene enclosure has strategically placed internal passages to conduct
moisture that may accumulate internally out to the side channels where it
drains away.
Electro-Voice User Manual 1
