This user guide provides detailed information for using the BrightEye™11-HD
HD/SD SDI to Analog Converter module.
The information is organized into the following sections:
• Product Overview
• Functional Description
• Rear Connectors
• Operation
• Front Panel Controls and Indicators
• Using the BrightEye Control Application
• Warranty and Factory Service
• Specifications
• Glossary
BrightEye-1
TM
BrightEye 11-HD
HD/SD SDI to Analog
Converter
Revision 2.0 SW v1.0
ENSEMBLE
DESIGNS
BrightEye 11-HD HD/SD SDI to Analog Converter
PRODUCT OVERVIEW
BrightEye 11-HD provides HD or SD digital to analog video conversion with the
full range of analog output formats available for HD and SD. When an HD input
is present, HD RGB or YPrPb are output. When an SD input is present, Beta,
SMPTE, RGB, or composite with simultaneous Y/C is put.
12 bit processing and conversion at 8x oversampling produce the best looking
images possible. Output format and gain are controlled from the front panel. A
status display indicates input presence. Video levels can be adjusted through
BrightEye Mac or PC software.
FUNCTIONAL DESCRIPTION
As shown in the functional block diagram below, serial digital video is fed to the
converter on a single BNC connector. The SDI input is routed directly to the SDI
Out BNC and the reclocking and deserializing circuitry before entering the D to A
converter.
The converted analog signal is then encoded to the desired output format as
chosen on the front panel or with BrightEye PC. During this stage, gain can be
adjusted for the correct output levels.
BrightEye 11-HD is powered by a 12 volt DC universal power supply. This power
supply can accept an input voltage between 90 and 230 volts, at 50 or 60 Hertz. It
uses a standard IEC line cord and can be used anywhere in the world. It is
normal for the converter to be quite warm to the touch when operating.
BrightEye-2
HD or SD
SDI In
Y, Pb, B Out
Reclocker
Deserializer
12-bit
D to A
Converter
and
Video Encoder
HD SDI In Yields HD Analog Out.
SD SDI In Yields SD Analog Out.
C, Pr, R Out
Cpst, Y, G Out
SDI Out
Front Panel Controls
Gain Adjust

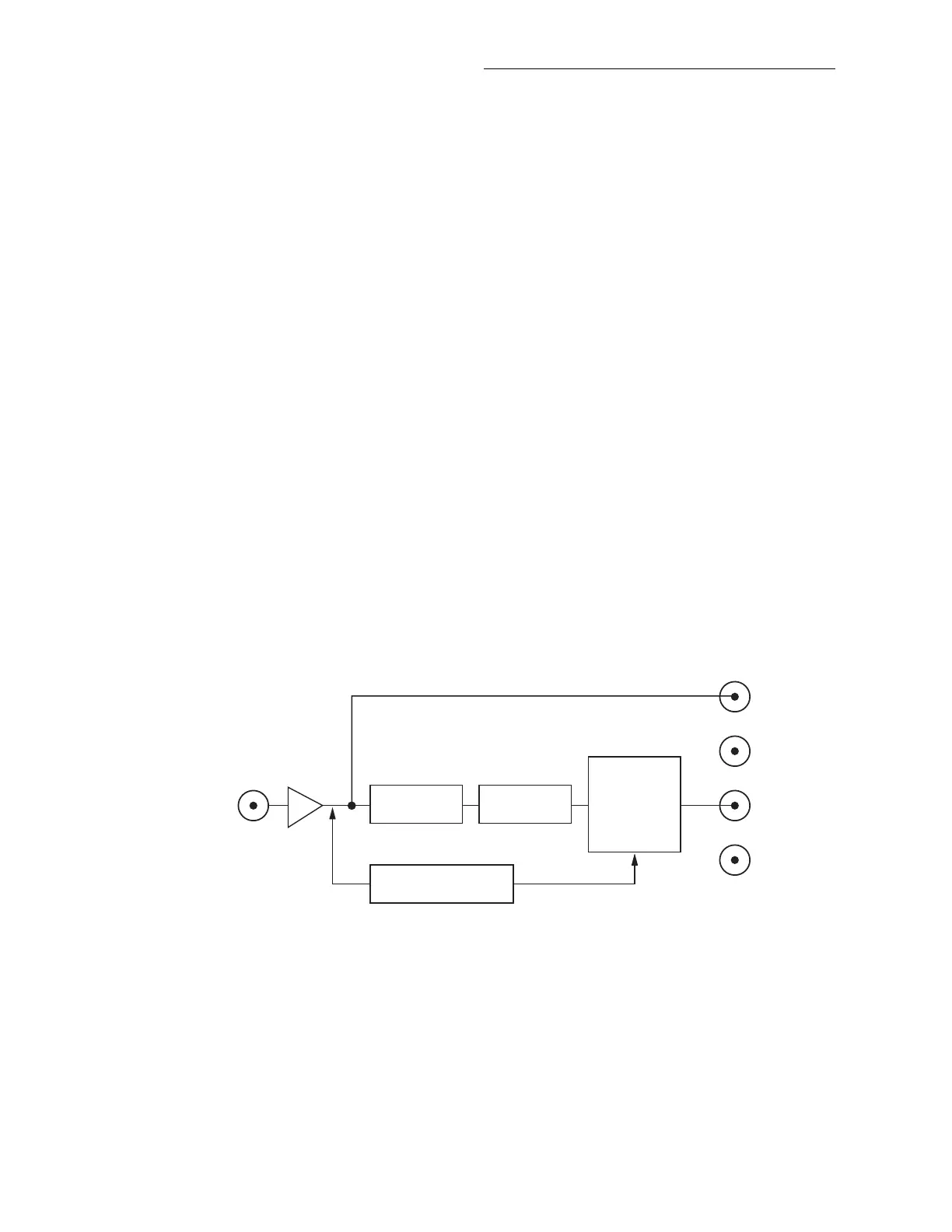

BrightEye 11-HD Functional Block Diagram
