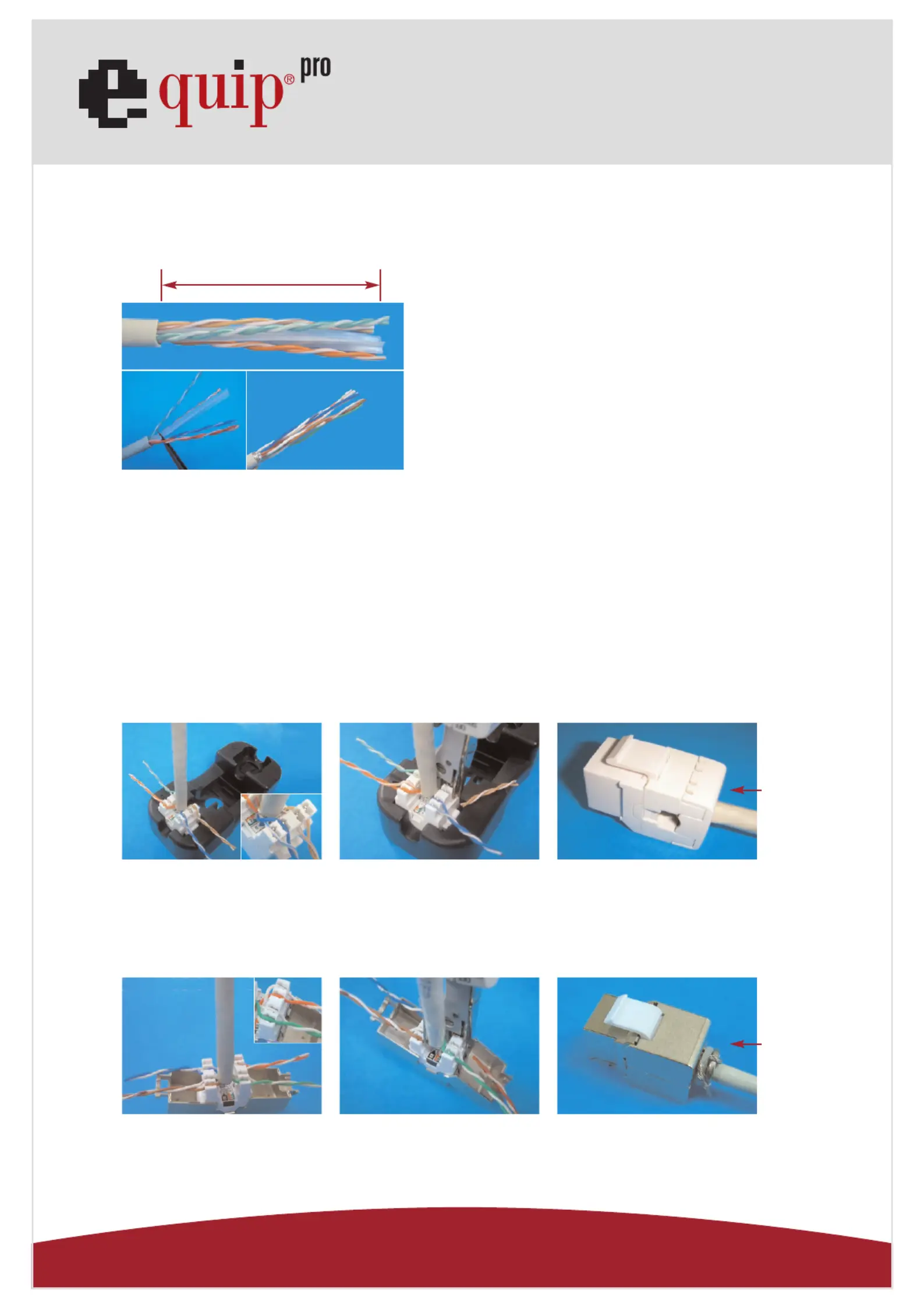

2.Follow the color-coding to position T568A or T568B wiring.
T568AT568B
Pin 1Pin 1White/GreenWhite/Orange
Pin 2Pin 2GreenOrange
Pin 3Pin 3White/OrangeWhite/Green
Pin 4Pin 4BlueBlue
Pin 5Pin 5White/BlueWhite/Blue
Pin 6Pin 6OrangeGreen
Pin 8Pin 8BrownBrown
Cap
Cable tie
www.equip-info.net
1.Strip approximately 40mm of the cable jacket.
3.Follow the wiring sticker to place the wires into IDC slot.
Make sure to keep the pairs twisted as long as possible.
4.Punch the wires with a 110 or Krone impact tool and cut
off the surplus wires.
Unshielded Type:
5.Snap in the IDC cap to fix the wires, and finish the installation.
Shielded Type:
5.Tie up the cable by cable tie, and finish the installation.
40mm
Cat.6 Keystone Jack LSA+
