THANK YOU FOR PURCHASING

ERICA BLACK SERIES MODULE!

Erica Black Series includes high‑end,

unique functionality and superior

quality modules. Only the best,

highest quality components are used,

all inputs and outputs are protected

against undesired overvoltage. When

designing Black Series, we put design

and usability superior. Big knobs

are assigned to functions that make

dierence in sound. Erica Black series

consist of range of modules that are

needed to put together entire synth.

Enjoy!

Erica Black CV Processor allows you

to manage CV signal levels and

polarity. It contains two parts; the

input of the bottom one is normalled

to the output of the top one, and if

signal is plugged in Input of the top

part only, it is split in two signals,

each of which can be independently

altered.

FEATURES:

CV/audio signal attenuverter/booster

CV/audio signal oset

Direct and inverted signal outputs

Output signal indicator LEDs

TECHNICAL SPECIFICATIONS:

CV input level ........................‑10V – +10V

Signal attenuation/boost ............0 – x2

Power consumption .....+20mA, ‑20mA

Module width ....................................6HP

Module depth ...............................25mm

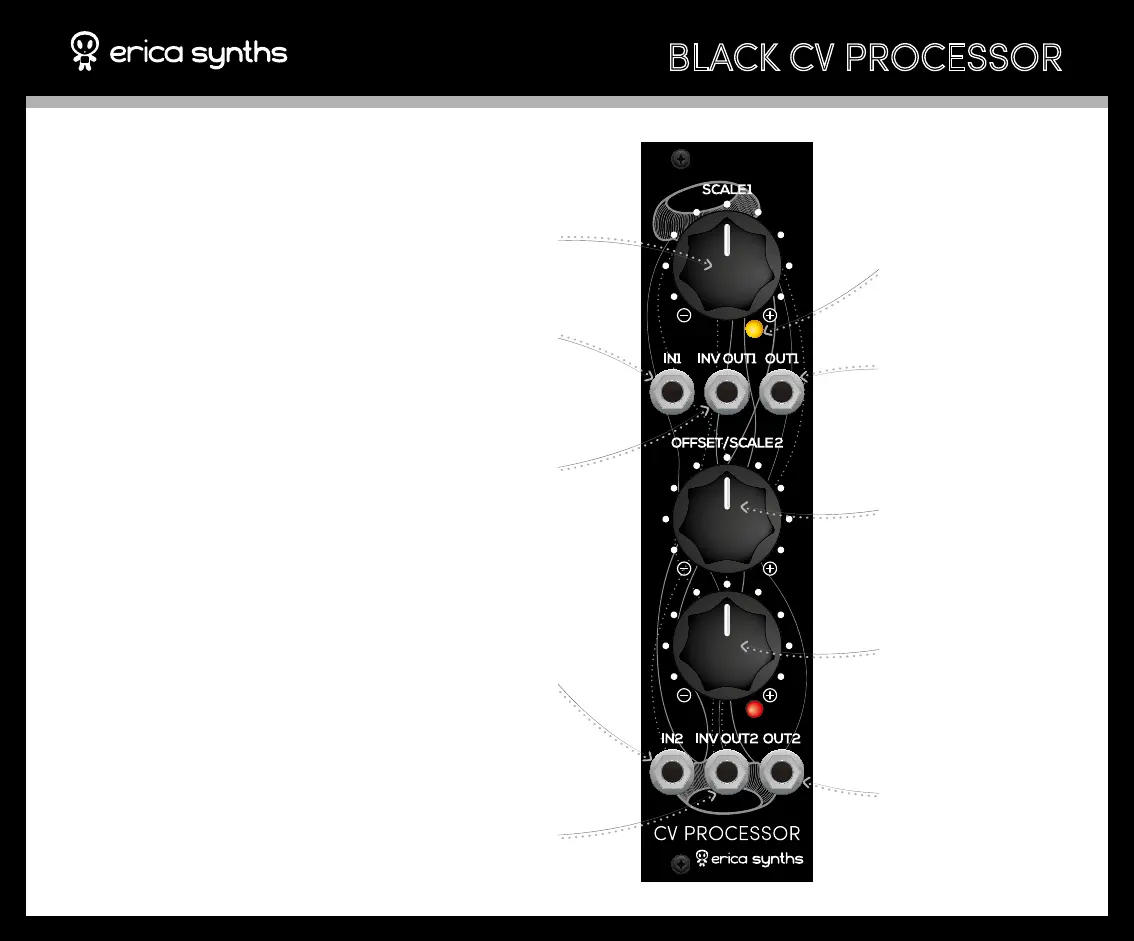

Bicolour LED gives visual

indication on signal state (positive

or negative)

Here’s output of the top section

of the module

Oset knob adds ‑5V to +5V

oset to incoming signal. Use it

to alter initial CV value applied

to, for example, VCA CV input

to keep the VCA partly open for

tremolo eects

The second Scale knob has

exactly same function as the top

one, but if only top IN is used, it

alters the signal, which comes

from top OUT. Use this feature to

send the same CV, for example,

to VCA (top OUT) and VCF

(bottom OUT) simultaneously,

and by adjusting both knobs get

interesting modulation eects

This is the output of the bottom

section of the module

The knob sets desired signal

level: when turned clockwise

from full attenuation at

12 o’clock to 2x boost, when

turned counter clockwise, it

does the same, but inverts

the signal

Patch a CV or audio signal, you

want to alter here. Inputs are

DC coupled

This is inverted output of the

top section of the module

This is inverted output of the

bottom section of the module

Patch second CV or audio

signal, you want to alter, here.

In case nothing is patched

in this jack, it is normalled

to OUT of top part of the

module, thus you split a CV in

two independent, buered

CV signals
