BLACK VCA

INPUTCV1CV2OUT

IN LEVELRESPONSE

CV1 LEVELCV2 LEVEL

THANK YOU FOR PURCHASING ERICA

SYNTHS BLACK SERIES MODULE!

Erica Black Series include high-end,

unique functionality and superior

quality modules. Only the best, highest

quality components are used, all

inputs and outputs are protected

against undesired overvoltage. When

designing Black Series, we put design

and usability superior. Big knobs

are assigned to key functions of the

module, which makes Black Series

ideal for live performances. Enjoy!

Erica Synths Black Voltage Controlled

Amplifier is unique design, hi-fi level

VCA with improved attenuation and

CV reject levels, and bias control

for great tremolo eects. Smooth

fading between linear and logarithnic

response allows you create versatile

percussion sounds. LED bargraph gives

visual feedback on the output level.

FEATURES:

Manual bias control

Manual fading between linear and

logarithmic response

Two CV inputs

Output level indicator bargraph

TECHNICAL SPECIFICATIONS:

CV level ...................................-10V - +10V

Attenuation level:

CV = 0V (max attenuation) ..........-80dB

CV = +10V (unity gain) .......................0dB

Power consumption ......+45mA, -32mA

Module width ...................................10HP

Module depth ...............................25mm

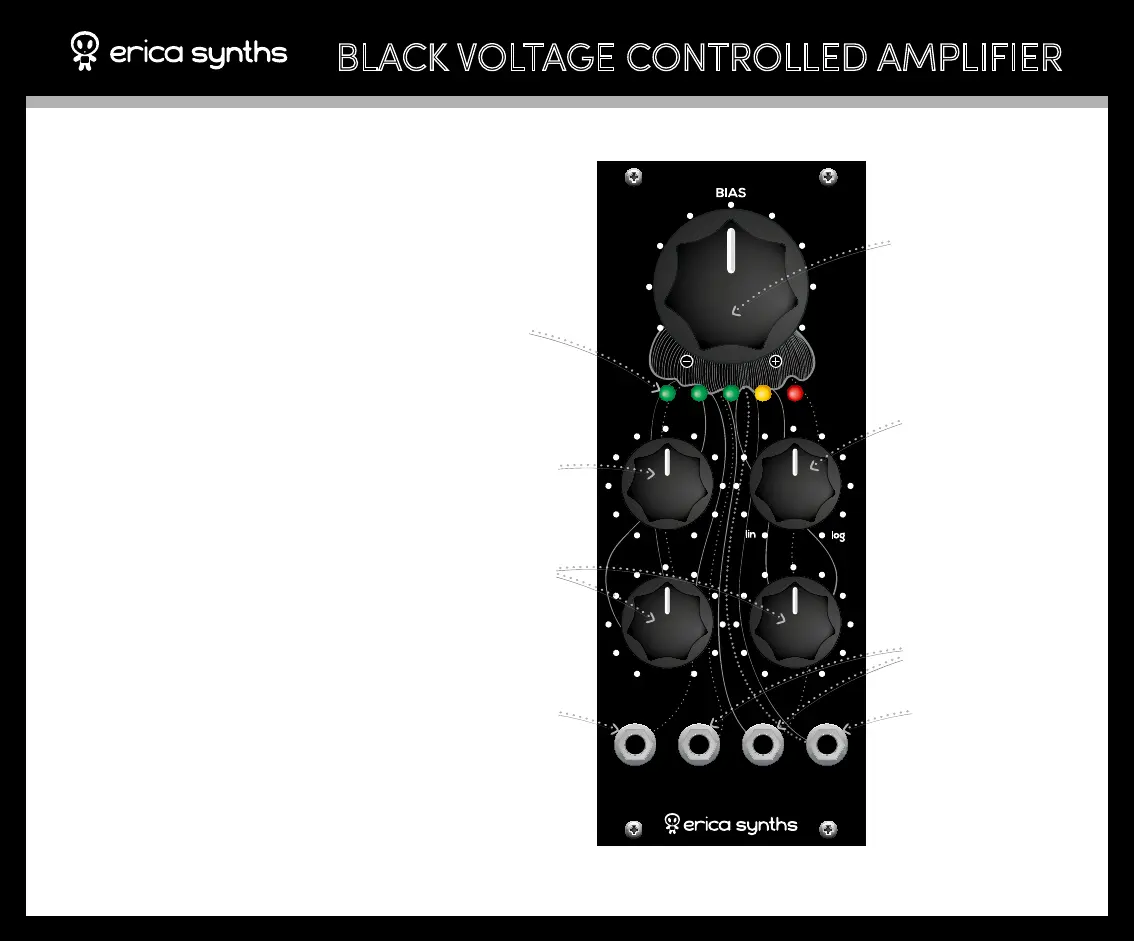

Adjust VCA bias

for desired initial

attenuation level! Set it

to 12 o’clock for standard

operation with 0-10V

envelope. If -5V - +5V CV

from LFO is applied, set

bias knob to 2PM and

get nice tremolo eect!

Adjust CV signal levels!

Patch audio signals here!

Adjust audio input level.

LED bargraph gives

visual feedback on the

output level.

Smoothly fade from

linear to more punchy

logarithmic response

modes. This knob is

assigned to CV2 only.

These are CV inputs.

This is VCA output.

BLACK VOLTAGE CONTROLLED AMPLIFIER
