GUIDE TO ASSEMBLY OF ERICA SYNTHS SWAMP MODULE

If you are reading this, most probably, you are

about to build Erica Synths DIY SWAMP module. The

module is 35mm deep, skiff friendly, has solid

mechanical construction and doesn’t require wiring.

The SWAMP is random CV and audio generator

inspired by famous WiardWogglebugmodule; it’s

often a heart of self-generating patches and brings

controllable randomness in your modular system.

Random sounds and CVs in the Wogglebugare

generated by interaction between two linear

CD4046-based VCOs (Tone and Woggle), where

frequency of each VCO is controlled by sample and

hold circuit that takes input CV from Woggle VCO

output. In addition Tone and Woggle audio

ringmodulatedoutput –Ring -is available.

In SWAMP module we introduced numerous

modifications and improvements to extend

potentiometer range, added audio input, which,

when connected, replaces internal Tone oscillator,

replaced expensive dual vactrol, built S&H circuit

around made in Riga S&H IC AS1100CK2, added

audio waveform selection switches, CV output

configuration jumpers and many more.

The SWAMP kit comes in three versions:

1)Set of 2 PCBs + S&H IC + mechanical parts (PCB

connectorsand spacer),

2)Set of 2 PCBs + S&H IC + mechanical parts (PCB

connectors and spacer)+ panel,

3) Full kit.

FEATURES:

•Three random audio frequency outputs

•External audio input routed to ringmodulator

•Three random CV outputs

•Clock input and output to sync the module to

your modular system

•CV control over internal clock for even more

extreme randomness

•Skiff-friendly design

SPECIFICATIONS:

•Audio output amplitude10Vptp

•CV output amplitude0-10V or -5V -+5V

•Panel width12HP

•Module depth35mm

•Power consumption60mA (max)@+12V,

39mA@-12V

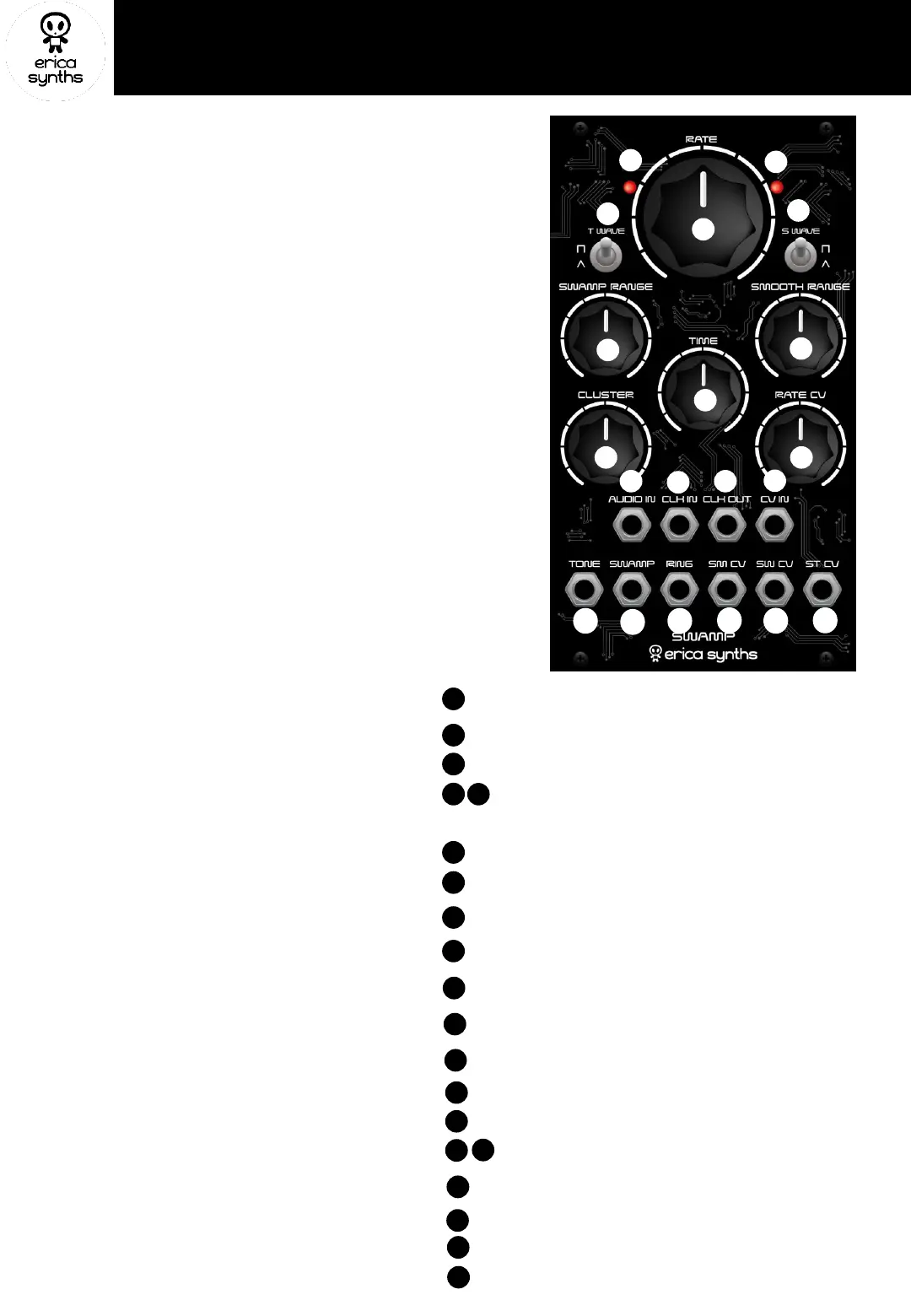

1

3

4

2

5

6

7

8

9

1

2

3

4

5

6

7

8

RATE knob sets internal clock rate or –the frequency of random

changes of output CVs and audio

LED gives visual feedback on the internal clock rate

LED gives visual feedback on STEPPED CV output

WAVE switches select waveform on the TONE and SWAMP

audio outputs. The middle position of the switch give you

waveform that is crossfade between triangle and pulse

This knob defines the range of CV changes on SW CV output

This knob defines range of CV changes on SM CV output

This knob defines frequency of random changes on SW CV output

9

CLUSTER knob defines, how much of random change happen on

SM CV and SW CV outputs

10

11

12

13

14

15

16

17

18

19

20

10

This is RATE CV attenuator –adjust, how much external CV will affect

internal clock rate

11

This is external audio input. External audio signal replaces internal

Tone oscillator and is ringmodulatedwith Swamp oscillator.

12

This is external clock input –you can sync SWAMP to the master

clock of your modular system

13

This is clock output –you can sync other modules to SWAMP clock

14

This RATE CV input

15

16

These are TONE and SWAM audio outputs

17

This is RING audio output –ringmodulatedTONE (or external audio,

if used) and SWAMP signal

18

This smooth fluctuating CV output

19

This SWAMP CV output

20

This is Stepped CV output –similar what you find in in S&H

modules, but with adjustable parameters
