Seite 1/10

English EX-42378

6. Driver Installation

Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8/ Server 200x

After starting Windows it recognizes a new and opens the hardware “PCI Controller“

assistant. Please choose manual installation and put the driver CD into your CD-Rom

drive. Now enter the Path and then the directory of your sys-"D:\IO\SYSTEMBASE\"

tem or“32bit_Win2000,XP,2003,Vista,2008,7,8“ “64bit_WinXP,2003,Vista,2008,7,8”

into the box for the Path/Source and click at . Now Windows will >next/continue<

search for the drivers in the specied directory. Follow the hardware assistant and nish

the installation. If Windows recognizes other new devices repeat the above described

steps. Restart Windows in any case after installing the drivers. Attention!

CHECK THE INSTALLED DRIVER

Click at <> < then enter and click at . In the windows Start Run “compmgmt.msc“ >OK<

that open select Under >Device Manager<. ”Ports (COM and LPT)“ you should nd

one or more new as sample If you see this or similar entries the ”PCI Ports“ (Com3).

card is installed correctly.

CHANGE PORT NUMBER

If you like to change the port number for example COM3 to COM5, open the >Device

Manager< click at >COM3<, >Settings< and then >Advance<. There you can change

between COM3 till COM256.

Windows NT 4.0

Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).

Click at > < > < and enter " then click Start Run „D:\IO\SYSTEMBASE\WinNT\Install.exe

>OK<. Windows NT will now start the setup program and install the driver. Please Re-

start Windows NT after installing the drivers.

CHECK THE INSTALLED DRIVER

Click at > < > < > < >Start Programs Administrative Tools[Common] Windows NT-

Diagnostics Resource IRQ „09 o < then click at > < > <. Here you should nd the entry

0 PCI“I/O-Port D400-D407 sysba-. Then click at > < here you should see the entries „

se 0 PCI“ „D800-D802 sysbase 0 PCI „DC00-DC1F sysbase 0 PCI“ “ and for

the ports. The I/O addresses can change depends which system and card is installed.

If you see these or similar entry's the card is installed correctly.

SCO UNIX / LINUX

The drivers are located in the following folder on our driver CD:

"D:\IO\SYSTEMBASE\SCO"

Because each individual distribution and kernel version of Linux is dierent, sadly we

cant provide a installation instruction. Please refer to the installation manual for stan-

dard IO ports from your Unix/Linux version! In some newer versions of Linux the card

will even be installed automatically after starting Linux.

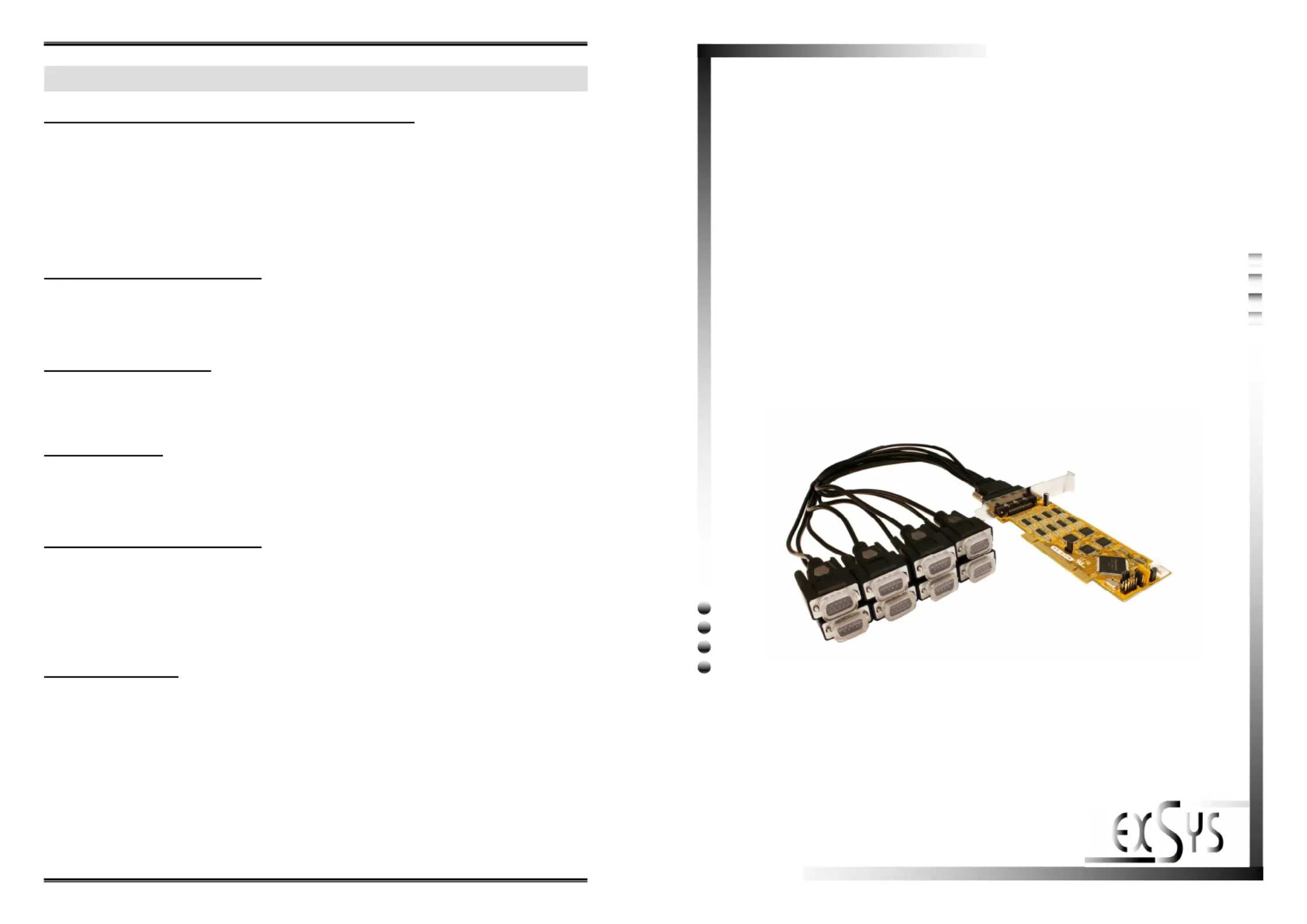

Bedienungsanleitung

Vers. 1.0 / 19.11.14

RS-232/422/485 PCI Karte

mit 8 x 9 Pin Anschluss

EX-42378

Manual

EX-42378

Inhaltsverzeichnis

1. Beschreibung ······················································································ 3

2. Lieferumfang ······················································································ 3

3. Aufbau und Anschlüsse ········································································ 4

3.1 Aufbau······································································································ 4

3.2 Anschlüsse ································································································ 4

4. Switch und Jumper Einstellungen ·························································· 5-8

4.1 Switch Einstellungen ················································································· 5-7

4.2 Jumper Einstellungen ················································································ 7-8

5. Hardware Installation ············································································ 8

6. Treiber Installation ··············································································· 9

Index

1. Description ························································································ 10

2. Extent of Delivery ··············································································· 10

3. Layout and Connections ······································································· 11

3.1 Layout ····································································································· 11

3.2 Connections ····························································································· 11

4. Switch and Jumper Settings ····························································· 12-15

4.1 Switch Settings ···················································································· 12-14

4.2 Jumper Settings ··················································································· 14-15

5. Hardware Installation ··········································································· 15

6. Driver Installation ················································································ 16

EX-42378 English

4. Switch and Jumper Settings

ENA | DIS

4.2 Jumper Settings

JP3:

DIS = The function PME is disable (Factory Setting)

ENA = The function PME is enable. Now the card can be activate

the computer through the serial ports.

But this should not be adjusted for standard applications.

5. Hardware Installation

If you are ready with the jumper settings, please proceed with the following installation

instructions. Because there are large differences between PC’s, we can give you only a

general installation guide for the EX-42378. Please refer to your computer’s reference

manual whenever in doubt.

1. Turn o the power to your computer and any other connected peripherals.

2. Remove the mounting screws located at the rear and/or sides panels of your Com-

puter and gently slide the cover o.

3. Locate an available expansion slot and remove its covers from the rear panel of

your computer. Make sure it is the right expansion slot for the card (see card de-

scription)

4. Align the card with the PCI slot and then gently but rmly, insert the card. Make sure

the card is seated and oriented correctly. Never insert the card by force!

5. Then connect the card with a screw to the rear panel of the computer case.

6. Gently replace your computer’s cover and the mounting screws.

English EX-42378

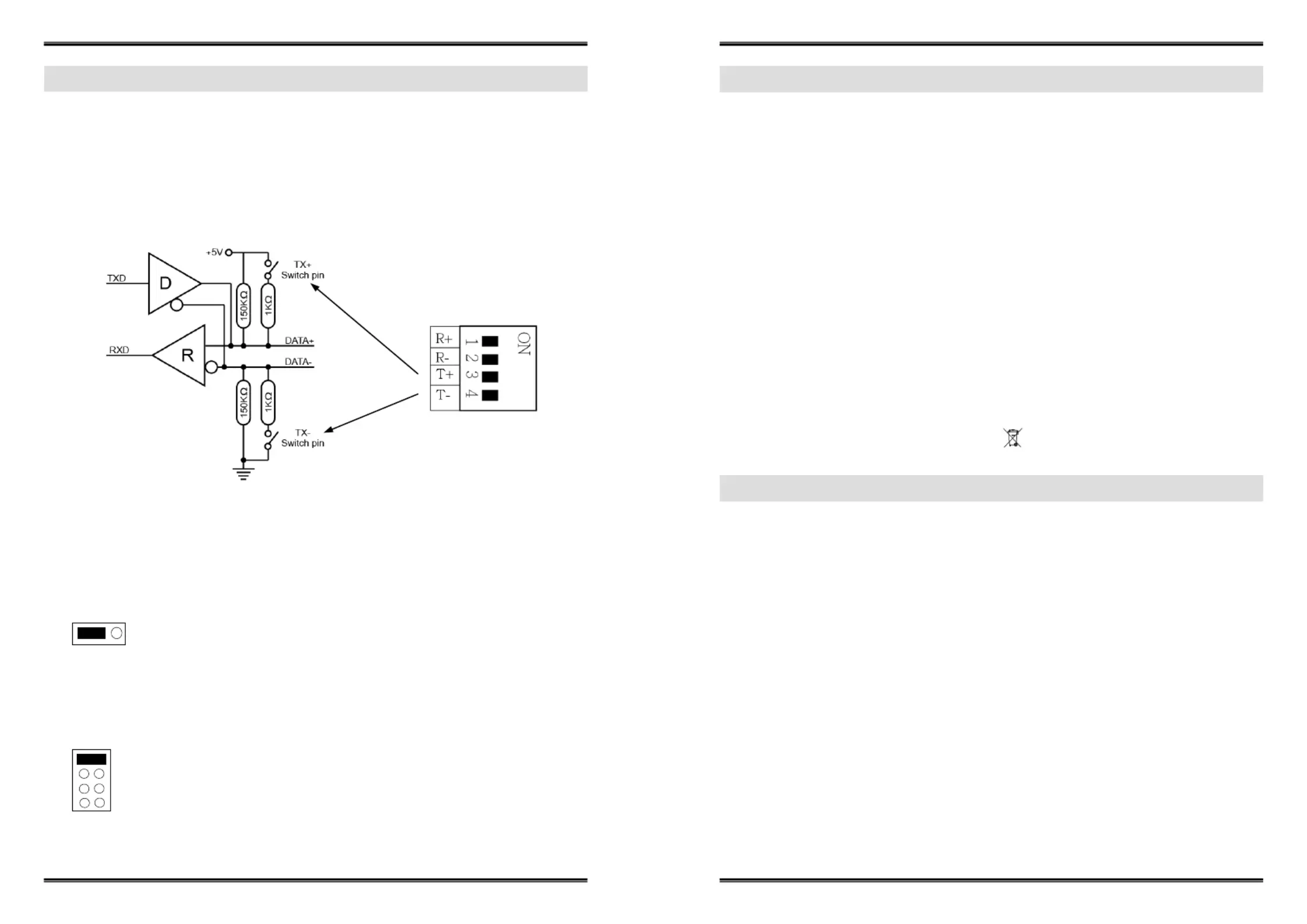

Terminator Switch (SW3)

Terminator for RS-485 2-wire mode:

4. Switch and Jumper Settings

4.1 Switch Settings

4.2 Jumper Settings

If you have the jumper JP2 set to PWR, you can adjust the voltage with

the jumper JP1. There are 4 dierent power sources.

(Attention! Connector J2 must be connected to the power supply!)

I5V = 5Volt from Mainboard (Factory Setting)

X5V = 5Volt from PC Power Supply

X12V = 12Volt from PC Power Supply

I12V = 12Volt from Mainboard

JP1:

I5V

X5V

X12V

I12V

JP2:

DIS = The pin 9 is connected with RI (Ring Indicator) signal.

(Factory Setting)

PWR = At pin 9 now you can set a voltage of +5V or +12V DC.

The power source is controlled by jumper JP1

DIS | PWR

EX-42378 Deutsch

Die EX-42378 ist eine PCI serielle RS-232/422/485 Karte mit 8 seriellen FIFO 16C95x

Ports, für den Anschluss von High-Speed seriellen Peripherie Geräten (z.B. Terminal,

Modem, Plotter usw.). Der serielle PCI Bus unterstützt dabei optimal die Leistung des

schnellen SystemBase Chipset mit 256byte FIFO Cache. Die EX-42378 gewährleistet

so eine sichere Datenübertragung und exzellente Performance von bis zu 921KBaud/s

für jedes angeschlossene Gerät! Sie unterstützt den 32-Bit PCI & PCI-X Bus mit 5 Volt

und 12 Volt. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustellen,

da die Einstellungen der Karte vom System (BIOS) und beim installieren des Betriebs-

systems automatisch vorgenommen werden. Die Ausgänge können einheitlich als RS-

232, RS-422, RS-485 mit 2 Draht oder RS-485 mit 4 Draht konguriert werden. Es wird

zusätzlich für den Einbau in schmale Computergehäuse ein 8 cm Low Prole Slot Bügel

mitgeliefert.

Merkmale:

•

Kompatibel zu PCI und PCI-X Bus

•

Bis 921.6 Kbps Baud Rate

•

Unterstützt wird RS-232, RS-422, 2 Draht RS-485 und 4 Draht RS-485

•

Unterstützt Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Linux

•

Zertiziert für CE

CECE

/ FCC / RoHS / WEEE DE97424562

/ FCC / RoHS / WEEE DE97424562/ FCC / RoHS / WEEE DE97424562

/ FCC / RoHS / WEEE DE97424562

Bevor Sie die EX-42378 in Ihren PC installieren, überprüfen Sie bitte zuerst den Inhalt

der Lieferung:

•

EX-42378

•

Treiber CD

•

Bedienungsanleitung

•

Octopus Kabel

•

Low Prole Bügel

1. Beschreibung

2. Lieferumfang

Produktspezifikationen

Marke:	EXSYS
Kategorie:	Nicht kategorisiert
Modell:	EX-42378
Breite:	150 mm
Tiefe:	60 mm
Gewicht:	1200 g
Betriebstemperatur:	-40 - 75 °C
Relative Luftfeuchtigkeit in Betrieb:	5 - 95 %
Betriebsanleitung:	Ja
Eingebaut:	Ja
Serielle Schnittstelle:	RS-232/422/485
Treiber enthalten:	Ja
Nachhaltigkeitszertifikate:	RoHS
Unterstützte Linux-Betriebssysteme:	Ja
Anzahl serielle Anschlüsse:	8
Hostschnittstelle:	PCI
Unterstützte Server-Betriebssysteme:	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64
Ausgangsschnittstelle:	Seriell
FIFO (First In, First Out):	256 B
