FOX3 Matrix Series — Network Ports, Protocols, and
Licenses
This guide provides information about network port requirements and third-party software packages used for Extron
FOX3 Matrix Series products. The following diagram and tables show the network ports and protocols that are
required for communication between the Extron software and hardware. Consult your network administrator to
confirm the connectivity for the network ports mentioned in this guide.
Network Port Requirements
The following tables provide network port information for network planning and troubleshooting.
l
Inbound/Outbound refers to the flow of traffic to and from the device.
l
Inbound indicates that traffic is received on the specified port on the device.
l
Outbound indicates that traffic is sent out from the specified port.
l
Both indicates that traffic is received by and also sent out from the specified port.
Devices
l
l
l
ll
FOX3 Matrix 840x
l
l
l
ll
FOX3 Matrix 560x
l
l
l
ll
FOX3 Matrix 320x
l
l
l
ll
FOX3 Matrix 160x
l
l
l
ll
FOX3 Matrix 80x
l
l
l
ll
FOX3 Matrix 40x
l
l
l
ll
FOX3 Matrix 24x
l
l
l
ll
PowerCage 411
l
l
l
ll
FOX3 T 301 PC
l
l
l
ll
FOX3 T 311 PC
l
l
l
ll
FOX3 T 301 PC
l
l
l
ll
FOX3 T 301
l
l
l
ll
FOX3 T 311
l
l
l
ll
FOX3 T 321
l
l
l
ll
FOX3 T 331
l
l
l
ll
FOX3 T 201
l
l
l
ll
FOX3 SR 301
l
l
l
ll
FOX3 SR 311
l
l
l
ll
FOX3 SR 201
l
l
l
ll
FOX3 R 301
l
l
l
ll
FOX3 R 311
l
l
l
ll
FOX3 SR 321
l
l
l
ll
FOX3 SR 331
Port Protocol Inbound/Outbound Service Description
23 TCP Both Telnet SIS (Simple Instruction Set)
NOTE: This port is disabled by default.
53 UDP Both DNS DNS service
67 UDP Both DHCP DHCP server
68 UDP Both DHCP DHCP client
80 TCP Both HTTP Port redirects to HTTPS
123 UDP Both NTP NTP service
161 UDP Both SNMP SNMP service
443 TCP Both HTTP Default web page
4523 TCP Both SSH Internal system messaging
22022 TCP Both SFTP Internal system file transfer
1
Port Protocol Inbound/Outbound Service Description
22023 TCP Both SSH SIS (Simple Instruction Set)
2001-2840 TCP Both SSH Input RS-232 UART insertion
3001-3840 TCP Both SSH Input RS-232 UART insertion
Toolbelt Software
Port Protocol Inbound/Outbound Service Description
4502 UDP Both Discovery Broadcast network discovery
4503 TCP Both SSH Internal system messaging
4522 TCP Both SFTP Internal system file transfer
Product Configuration Software (PCS)
Port Protocol Inbound/Outbound Service Description
4502 UDP Inbound Discovery Broadcast network discovery
4503 TCP Both SSH Internal system messaging
FOX3 Matrix Series— Network Ports, Protocols, and Licenses
2
Network Port Requirements for Configuration, Maintenance, and Control

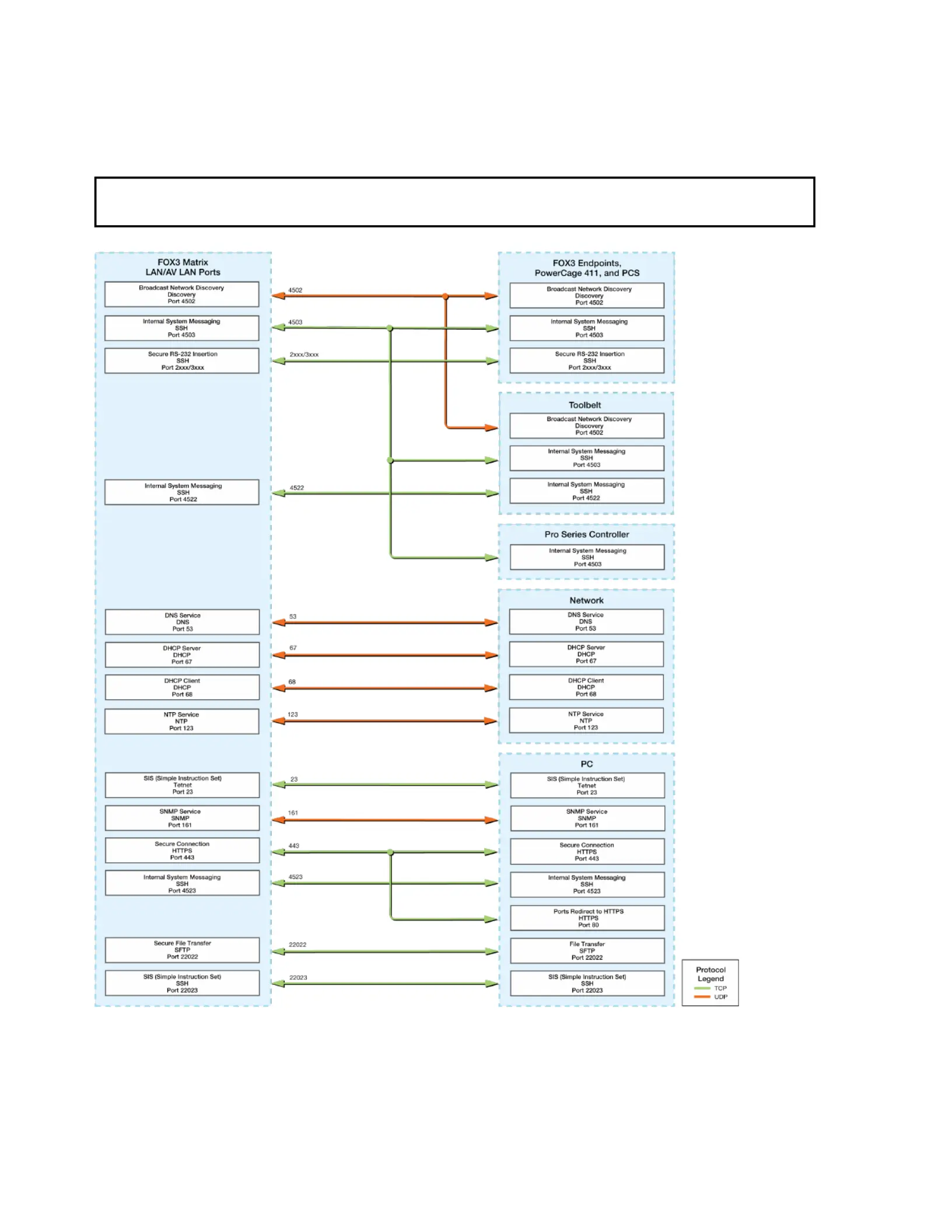

The following diagram shows the interaction of network functions, protocols, and ports.
NOTE: The diagram below includes a FOX3 matrix in the FOX3 system. The ports are the same when the
FOX3 system is configured endpoint to endpoint directly.
FOX3 Matrix Series— Network Ports, Protocols, and Licenses
3
