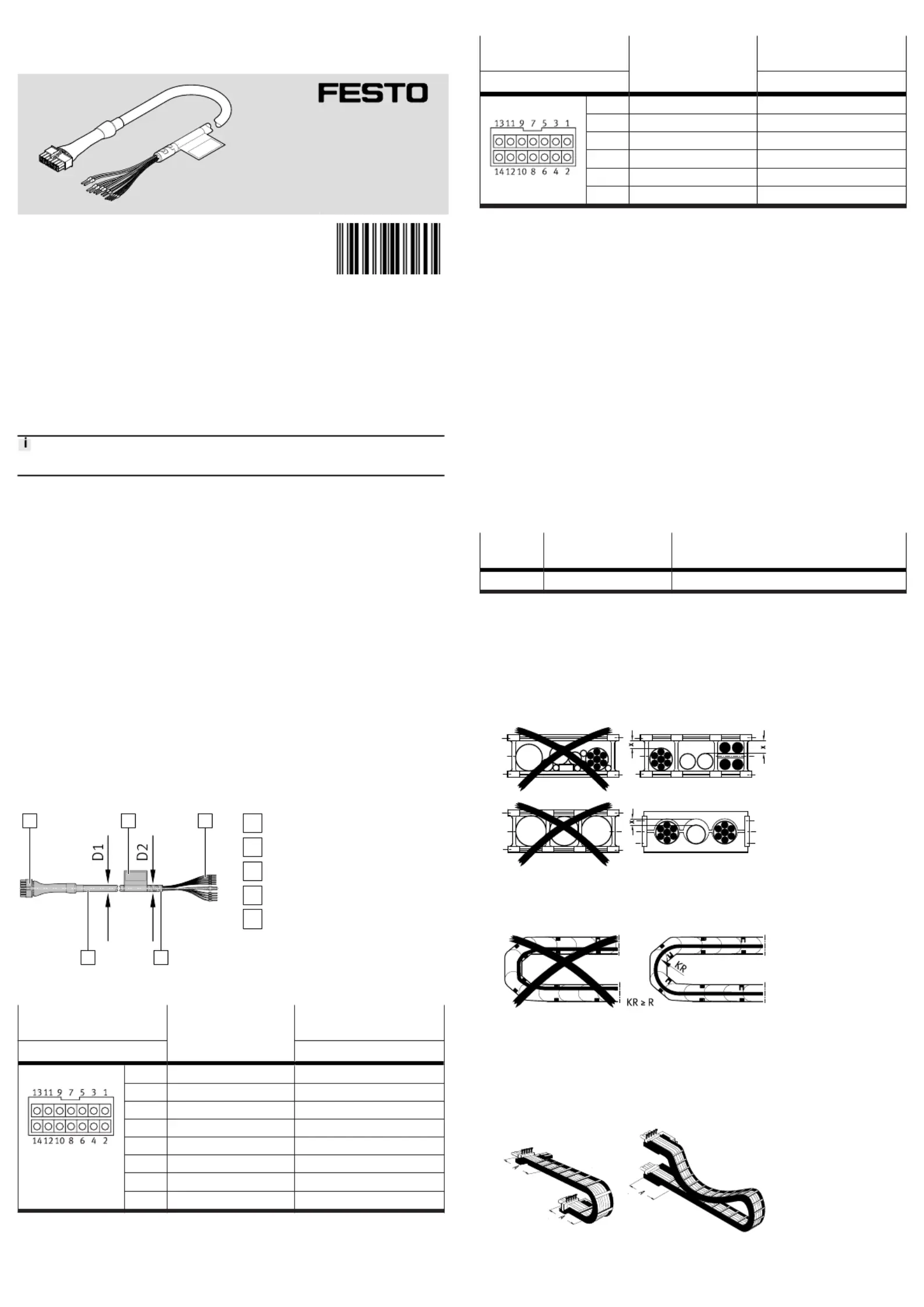

NEBM-L10G14-EH-...-Q...-LE12

Motor cable

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

Assembly instructions

8156480

2024-03

[8156482]

8156480

Original instructions

© 2024 all rights reserved to Festo SE & Co. KG

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

2Safety

2.1

Safety instructions

–Before working on the product: Switch off the power supply, ensure that it is off

and secure it against being switched on again.

2.2Intended use

The motor cable connects the stepper motor EMMB-ST with the servo drive

CMMT-ST.

2.3

Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers. The qualified personnel are trained in

electrical engineering.

3Additional information

–Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–

Accessories

è

www.festo.com/catalogue.

4Structure

4.1

Product design

12

34

5

Fig. 1:

Product design

1

Hybrid socket L10

2

Wire end (12x)

3

Shielded connection

4

Cable

5

Contact assignment identification

4.2

Contact assignment for motor and brake

Electrical connection1

Field device side

SignalElectrical connection2

Controller side X6

[1]Hybrid socket[2]Wire ends

1)

1Phase ARD

2Phase A/BN

3BR+GNWH

4BR-BUWH

5Shielding–

6Not assigned–

13Phase BBK

14Phase B/WH

1)

Colour code in accordance with IEC 60757:2021-06

Tab. 1:Contact assignment for motor and brake

4.3Encoder contact assignment

Electrical connection1

Field device side

SignalElectrical connection2

Controller side X2

[1]Hybrid socket[2]Wire ends

1)

7SLO+VT

8SLO-YE

9MA+GY

10MA-PK

11+5VRD

12GND(0V)BU

1)Colour code in accordance with IEC 60757:2021-06

Tab. 2:Encoder contact assignment

5

Mounting

5.1

Mounting electrical connection1

1.Align the hybrid socket[1].

2.

Plug the hybrid socket[1] into the connection and click it into place.

5.2

Strain relief for electrical connection 1

•Fix the cable sheath in the section before the hybrid socket.

Ä

No strain on the hybrid socket.

5.3

Mounting electrical connection2

1.

Attach the shield connection[3] to the servo drive with the shield clamp

èServo drive operating instructions CMMT-ST.

2.

Connect the wire ends[2] in accordance with the contact assignment. Note

the contact assignment identification[5].

5.4

Strain relief for electrical connection 2

•

Fix the cable sheath in the area in front of the wire ends.

Ä

No strain on the wires.

5.5

Wiring

Character-

istics

Cable characteristicsWiring

-ESuitability for energy chainsIn energy chain or flexible

Tab. 3:

Wiring

5.6

Mounting in energy chain

1.

Lay out the energy chain lengthways.

2.

Place the cables in the energy chain without twisting them.

3.

Separate cables from each other using separators/drilled holes.

4.

Do not bind cables in bundles.

5.

Maintain spaceX. X10%of the cable diameterD.>

With the energy chain hanging vertically: increase the spaceX.

Align the energy chain in the working position:

–

Make sure that the radius is greater than the bending radiusR of the

cables.

–The cables can move freely in the bending radius KR of the energy chain.

Ä

The cable movement is not forced by the energy chain.

7.Mount the energy chain corresponding instruction manual.è

Fasten the cables:

–for short energy chains with a length 1m at both ends of the energy<

chain

–for long sliding energy chains with a length 1m at the driver end only>

9.Do not move cables all the way to the fastening point.

Ä

The mounting spaceA between the fastening point and bending move-

ment is maintained.
