VOVK miniature solenoid valve

†‡

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347

-0

www.festo.com

AssemblyInstruction s

8149389

2020

- 11a

[8149390]

Miniature switching valve VOVKsolenoid ......................................... English

1Other applicable documents

All documents for the product are available at

 www.festo.com/sp

2 Safety

2.1S afety instructions

- Switch off the power supply before carrying out any assembly work.

-Switch off the media supply before carrying out any assembly work.

- Only mount product on components that are in a safe condition.

-Only use the product in its original condition without unauthorized

modifications.

-The product must not be used if the product is dirty or damaged as a

result of damaged packaging.

-Assembly and installation by qualified personnel only.

2.2Intended Use

The valves are solenoid switching valves for air and are intended to release,

block or change the flow of air.

2.3Foreseeable Misuse

-The product may not be used outside the limits of the product defined

by the technical data.

- The product must not be used in a potentially explosive atmosphere.

- The product cannot be used for oxygen or aggressive gases

- The product cannot be used for liquids

3Scope of Delivery

Each VOVK valve comes with a set of mounting plates and screws:

- 2 mounting plates for ends

- 2 screws

The VOVK-…-FB type ( flange mount)comes with one additionalplate:

- 1 mounting plate for intermediate position

For the VOVK valves with cable/connector also the 30cm cable is always

included with the valve.

4 Assembly

Assembly and installation by qualified personnel only.

- Switch off the power supply before carrying out any assembly work.

-Switch off the media supply before carrying out any assembly work.

4.1VOVK-…-FB type (flange mount)

This type of VOVK valve has the flange connection at the bottom and fits to

the manifold for a single valve or for 10 valves.

D10--epending on the position of the valve on the valvemanifold you will

n eed the mounting plates for end and/or intermediate position.

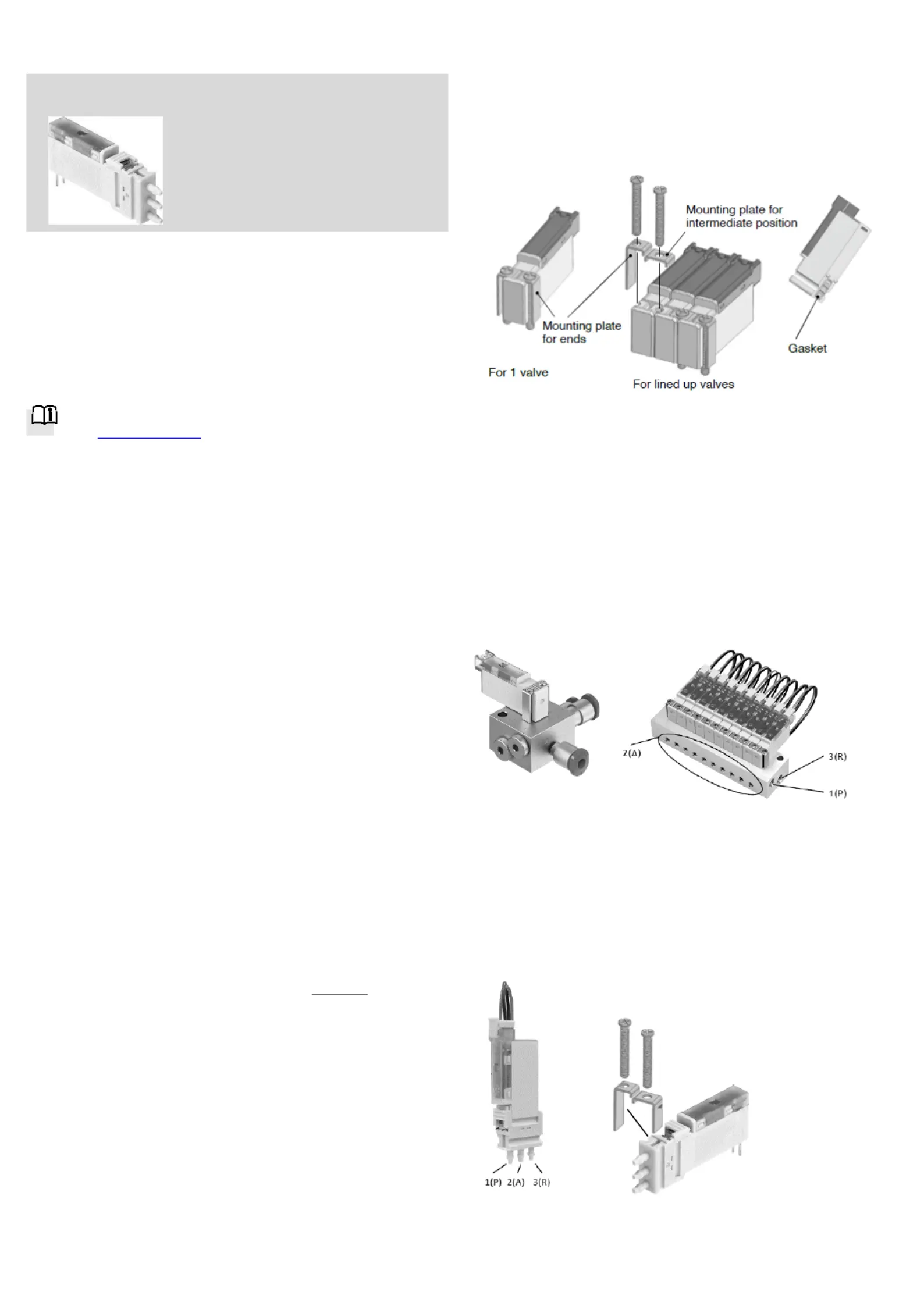

For 1 valve

1. Put the valve on the base, attach mounting plates for ends.

2. Tighten the screws provided to a tightening torque of 17.6 Ncm

[1.558 in･lbf].

Note: Tighten the screws evenly so the valve does not tilt.

For multiple valves that are lined up

1. Line up the valves on the base, attach the mounting plates for

intermediate positions and for ends.

2. Tighten the screws provided to a tightening torque of 17.6 Ncm

[1.558 in･lbf].

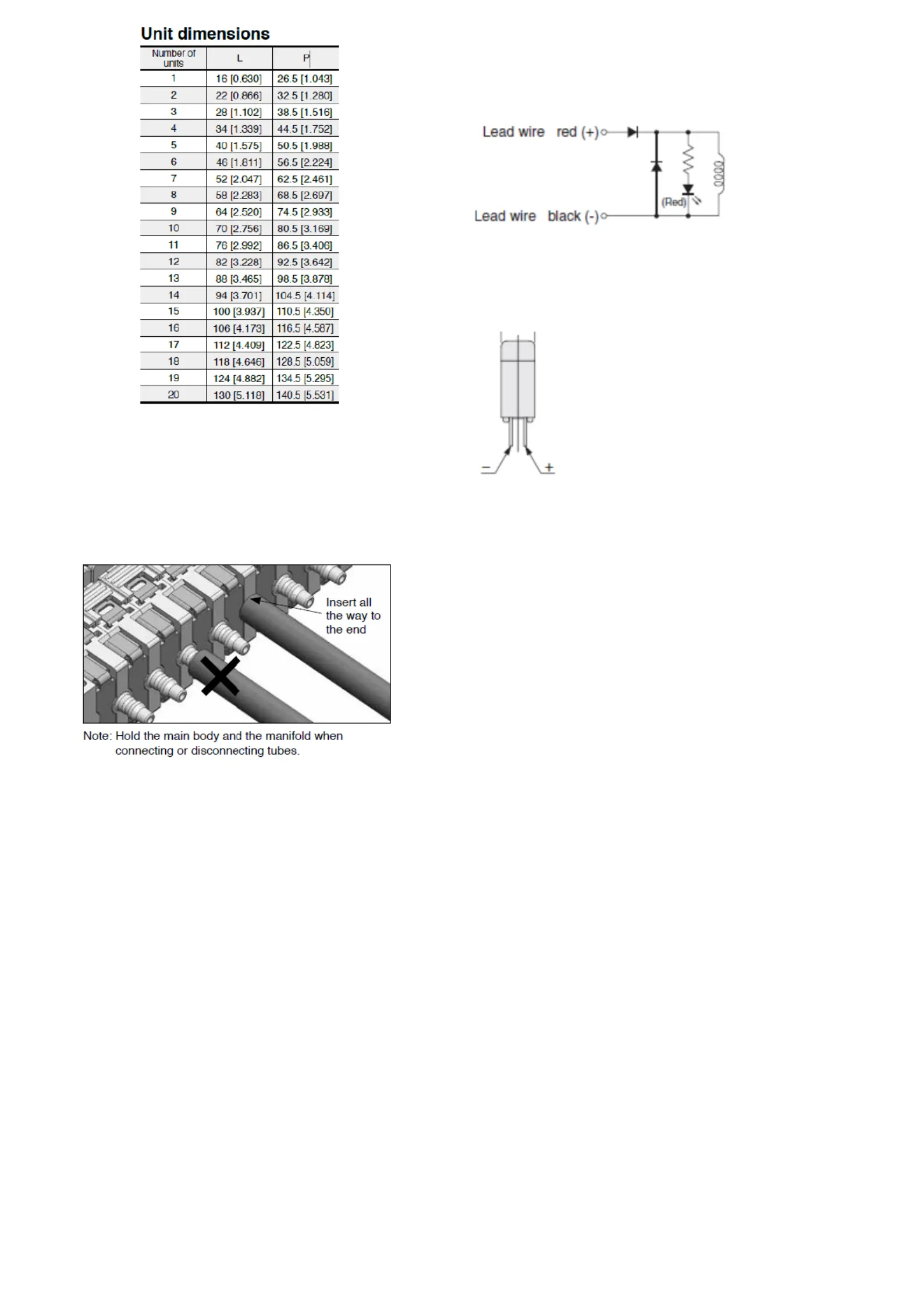

Note: Use the valves in a line at a 6 mm [0.236 in] pitch.

The mounting plates provided (intermediate) are for a 6 mm [0.236 in] pitch.

4.2VOVK-…- B3F/B3.2F (single valves)

This type of VOVK valve has the direct barb connections.

You will need the two mounting plates for the ends and the screws to mount

them in a similar way as the VOVK-...-FB type above.
