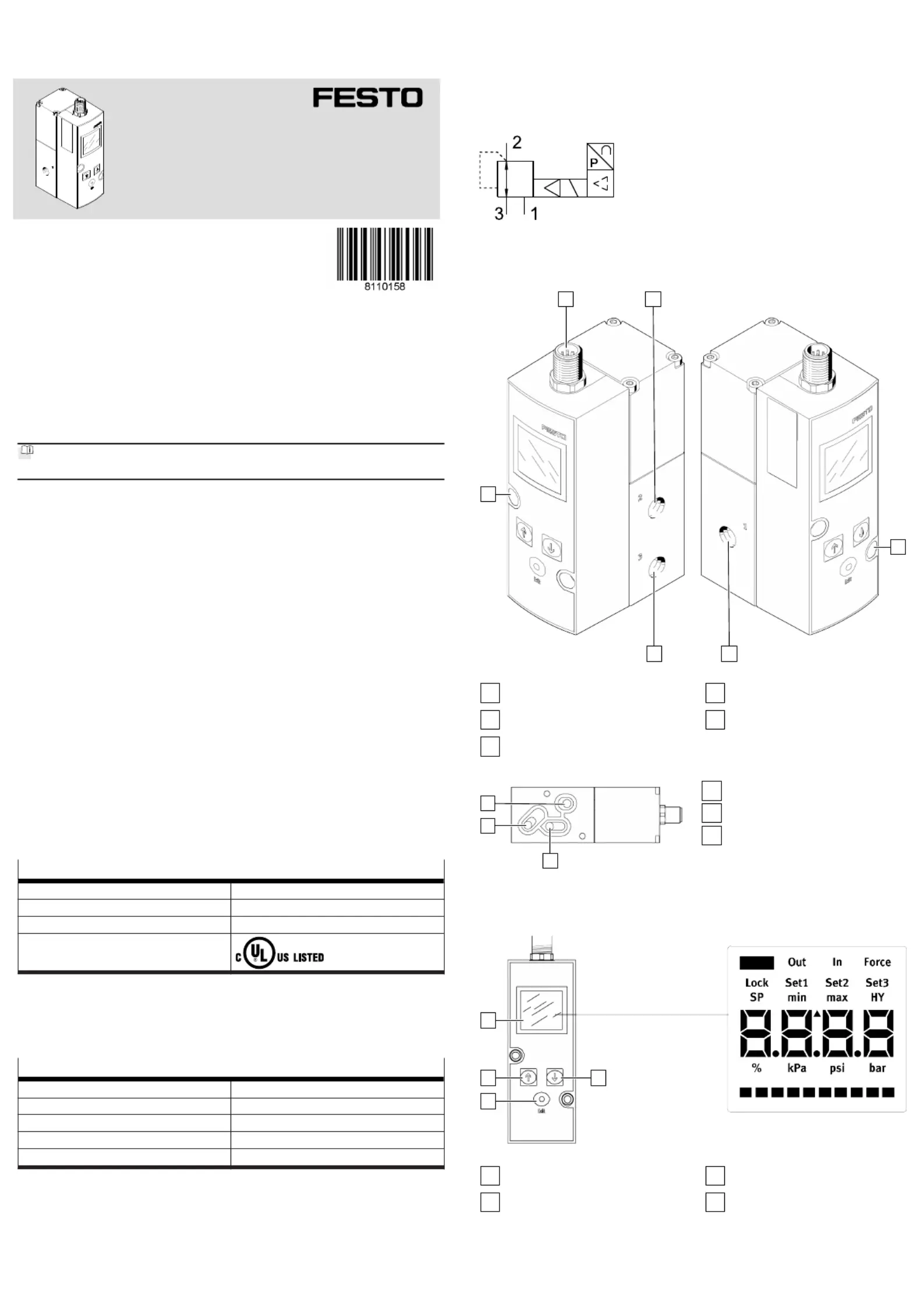

VPPM-...-C1

Proportional-pressure regulator

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Deutschland

+49 711 347-0

www.festo.com

Operating instructions

8110158

2021-11f

[8110160]

Translation of the original instructions

© 2021 all rights reserved to Festo SE & Co. KG

1

Applicable Documents

All available documents for the product

è

www.festo.com/sp.

2Safety

2.1Safety instructions

–

Only use the product in its original condition without unauthorised modifica-

tions.

–

Only use the product if it is in perfect technical condition.

–

Take into account the ambient conditions at the location of use.

–Before working on the product, switch off the power supply and secure it

against being switched on again.

–Store the product in a cool, dry environment protected from UV and corrosion.

Keep storage times short.

2.2Intended use

The proportional-pressure regulator is intended to regulate a pressure propor-

tional to a specified setpoint value. The product is intended for use in industrial

environments.

2.3Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers. The qualified personnel have skills and

experience in dealing with electropneumatic (open-loop) control technology.

2.4Approvals

In combination with the UL inspection mark on the product, the information in this

section must also be observed in order to comply with the certification conditions

of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL certification information

Product category codeQUYX, QUYX7

File numberE322346

Considered standardsUL 610101, CAN/CSAC22.2 No. 610101

UL mark

Tab. 1:

UL certification information

–

The unit shall be supplied by a power source which fulfils the requirements

on a limited-energy circuit in accordance to IEC/EN/UL/CSA 61010-1 or on

a Limited Power Source (LPS) in accordance to IEC/EN/UL/CSA 60950-1 or

IEC/EN/UL/CSA 62368-1 or a Class 2 circuit in accordance to NEC or CEC.

Electrical data and ambient conditions

Supply voltage24 V DC

Max. power VPPM-6, VPPM-87 W

Max. power VPPM-1212 W

Rated pressureup to 1.1 MPa

Max. installation height2000 m

Tab. 2:

Electrical data and ambient conditions

3Additional information

–Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–Accessories and spare parts

è

www.festo.com/catalogue.

4Product overview

4.1Function

The proportional-pressure regulator controls the pressure proportionally to a

specified setpoint value. A built-in pressure sensor records the pressure at the

working port and compares this value with the setpoint value. If there are devia-

tions between the setpoint value and actual values, the proportional-pressure

regulator is actuated until the output pressure has reached the setpoint.

Fig. 1:Pneumatic circuit symbol

4.2

Structure

4.2.1

Product design

1

23

1

45

Fig. 2:Connections and mounting holes (in-line valve)

1

Through-holes for fastening

2

Electrical connecting plug

3

Working air port (2)

4

Compressed air port (1)

5

Exhaust air port (3)

2

1

3

Fig. 3:Pneumatic ports (sub base

valve)

1

Exhaust air port (3)

2

Working air port (2)

3

Compressed air port (1)

4.2.2

Display and control elements

1

2

3

4

Fig. 4:

Display and control elements

1

[Edit] key

2

[UP] key

3

Display

4

[DOWN] key
