Full Display Mirror® Installation Instructions
Congratulations and thank you for
purchasing a Gentex brand Full Display
Mirror (FDM®). This intelligent rear
vision kit consists of a unique display-
integrated mirror and custom-designed
camera engineered speci cally for
automotive rear vision.
1/9
Tools required
T-15
Full Display Mirror®, FDM®, HomeLink® and the HomeLink house icon are registered trademarks of Gentex Corporation.
*550-0748-000*
550-0748-000 Rev. AAA
T-20
T-10
2/9
3
If needed, remove body panels for mirror and camera installation.
For example, the a-pillar may require removal as shown above.
2
Remove the factory mirror from the windscreen.
Most mirrors are removed by loosening the T20 Torx screw on the
mirror base and sliding mirror upward towards the headliner.
*Mirror removal process may vary by vehicle.
-
+
1
Turn car o . Remove the negative battery cable and safely tuck
cable out of the way.
4
Mount the Full Display Mirror on the windshield by sliding the
mirror mount over the button. Tighten the T20 Torx set screw to
13.3 - 17.7 in-lbs.
*Speci c vehicle adaptors may be needed.
3/9

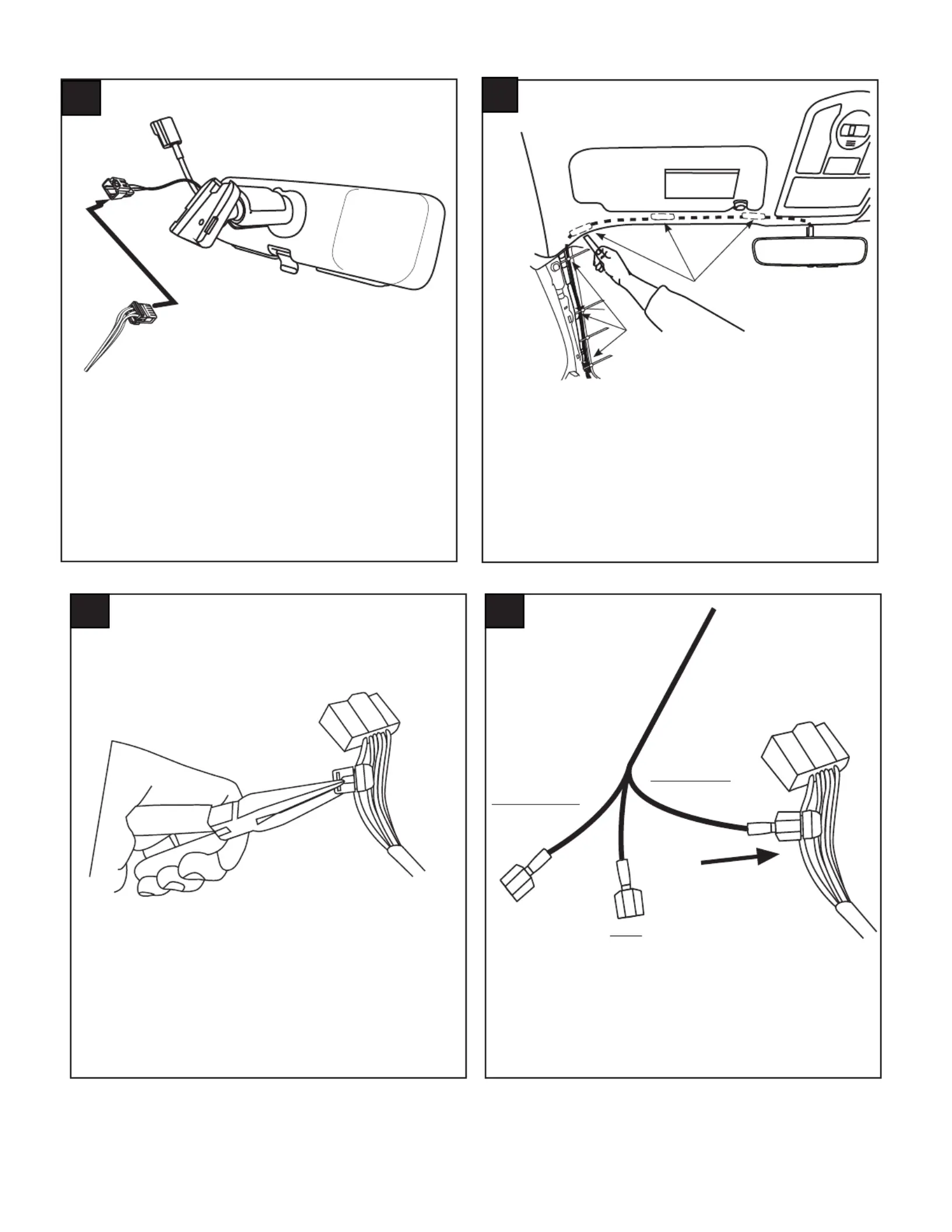

5
Plug mirror power harness into the connector on the mirror.
7
Find 12V switched ignition and attach t-tap using pliers. Repeat for
ground supply. Ensure t-tap is snapped together.
8
Plug the mirror harness into t-tap’s as noted above. Ensure the
spade is properly seated into t-tap.
Black w/ white:
12V Switched Ignition
Black:
Ground
Black w/ orange:
12V Switched
Ignition
Cable
Ties
Foam Tape
6
Route the mirror power harness to a location where 12v igni-
tion and ground lines are present. Secure the harness along
the route with foam tape and wire ties.
* Ignition and ground tap point are typically found in the
A-pillar, Junction Block or Overhead compartment.
