Current transformer

The 60052 load controller comes with a current

transformer. This current transformer must

be installed on the phase that begins from

the branch circuit breaker. It informs the load

controller of the total power consumed by the

installation.

When this consumption exceeds the limit set on

the load shedding threshold potentiometer, a

load shedding cycle is triggered.

Load shedding

Should the subscribed power be exceeded, the

load controller will carry out a rotating load shed

between the 2 channels. The load shedding

cycle is 6 minutes.

Configuring the output type

The switches d define the type of output.

• outputs in “closing switch” mode.

To be used when the outputs

control a closing switch (C or NO).

In this mode:

- Load shedding = O = 0 V

- On = 230 V

• outputs in “openin switch” mode.

To be used when the outputs

control an opening switch (O or NC).

In this mode:

- Load shedding = O = 230 V

- On = 0 V

• outputs in “pilot wire” mode.

To be used when the outputs

control pilot wire input devices.

In this mode:

- Load shedding = “o” signal.

- 6 compatible pilot wire sequences.

Test button

Pressing this button launches a load shedding

test. This test consists of gradually ooading

outputs 1 and 2 over 30 seconds.

The LEDs flash 5 times to indicate that test

mode is now in progress, then the LED corres-

ponding to the ooaded channel lights up.

At the end of the test, all of the LEDs switch o.

Frost protection input (terminal 1)

This input allows you to force the pilot wire outputs

in frost protection mode. You can connect a

switch, the output of your telephone controller, etc.

G

This input only operates in “pilot wire” mode.

Programming input (terminal 2)

•

In pilot wire mode: using this input, you can

connect a heating timer via the pilot wire.

Whatever the timer instructions, the load

shedding sequence takes priority.

•

In contactor mode: these inputs allow you to

force OFF.

Input

Position of switch

4

Outputs 1

and 2

230 V

Closing switchOff = 0 V

Opening switchOff = 230 V

0 V

Closing switchOn = 230 V

Opening switchOn = 0 V

What to do if... ?

•

One or more “output” indicator lights are flashing:

- there is a short circuit on the output (pilot

wire/phase inversion in a convector,

for example).

- There is overconsumption on this output:

check how many devices are connected

to this output and their consumption.

Call your electrician.

•

The counter indicator light is flashing:

- the tele-information link is not active, check

the connection or call your power company.

Technical features

Power supply: 230 V~ +10/-15% 50 Hz

Power consumption: < 10 W

Break capacity:

- in contact mode: 1 A/230 V~ upon call,

so, for example,10 x 25 A contactors (2 modules)

for 3 outputs.

- in pilot wire mode: 60 mA/230 V~ per output.

Load shedding cycle: 6 minutes

Operating temperature: 0°C to +50°C

Storage temperature: -20 °C to +60 °C

Protection rating: IP 20

Connection capacity: flexible: 1 to 6 mm

2

rigid: 1.5 to 10 mm

2

60052

6LE007124A

z

3-output universal load controller

Operating principle

The 60052 load controller optimises your electrical

service. It manages excesses of subscribed power,

thereby helping you to keep your electrical usage

to a minimum.

It limits the power used by disrupting non-priority

circuits and prevents the branch circuit breaker

from being triggered.

The 60052 is intended for single-phase and

three-phase installations equipped with an

electronic counter. The setting does not need to

be adjusted. The exceedance information is sent

directly to the counter via the tele-information link.

The 60052 outputs are configurable and can

therefore be adapted to all installation types:

load shedding by means of the pilot wire,

opening switch and closing switch.

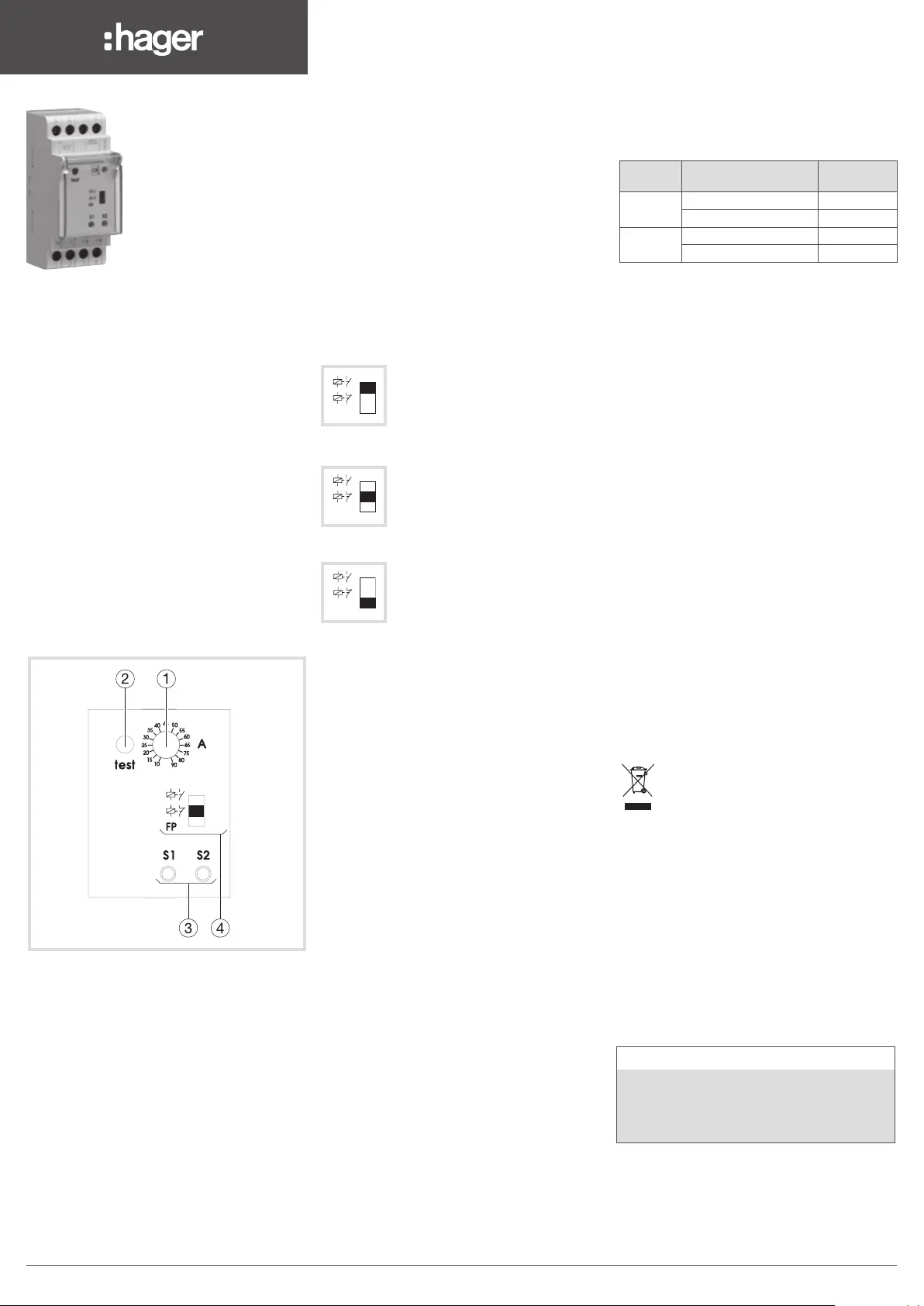

About the product

1

Load shedding threshold setting.

2

Test button

3

Indicator lights for outputs 1 and 2

- lit = the corresponding output is ooaded

- flashing = output error

(see What do I do if…? section).

4

Selection switch for output type

- installation with closing switch

- installation with opening switch

- installation with pilot wire.

Correct Disposal of This product

(Waste Electrical & Electronic

Equipment).

(Applicable in the European Union and other European

countries with separate collection systems).

This marking shown on the product or its literature

indicates that it should not be disposed with other

household wasted at the end of its working life. To

prevent possible harm to the environment or human

health from uncontrolled waste disposal, please separate

this from other types of wastes and recycle it responsibly

to promote the sustainable reuse of material resources.

Household users should contact either the retailer where

they purchased this product, or their local government

oce, for details of where and how they can take this

item for environmentally safe recycling.

Business users should contact their supplier and check

the terms and conditions of the purchase contract. This

product should not be mixed with other commercial

wastes of disposal.

Usable throughout Europe å and in Switzerland

Hager Controls hereby declares that the device complies with

the essential requirements and other relevant provisions of

Directive 2014/53/EU.

The CE declaration is available on the:

www.hagergroup.com

FP

FP

FP

FP

FP

FP

FP

FP

FP

6LE007124A1
