Motion detectors 140°, 200°
Description
IP55
IP 55
+/- 80°
0 to 30°
Terminal block (detachable)
Quick Connect
Swivelling detection head
Setting potentiometersPlate for wall xing
Setting
Detection zone
Luminosity
Shutters
Installation Accessories for corner fixing
Fixed time
(length of time of
lighting)
The optimal height of installation is 2.5 m.
The detection eld must remain free.
2,5 m
8 m 16 m
EE82. α = 140°
EE83. α = 200°
1
2
DETECTOR 140°
EE820 White
EE821 Charcoal
DETECTOR 200°
EE830 White
EE831 Charcoal
q
2 6LE001205A
Support for ceiling fixing
Product presentation and operating
principles
This detector allows automatic control of a
light source for a dened length of time when a
movement is detected in the surveillance zone.
Settings and Test
The detectors have 2 modes of operation:
Fixed time and Control by timer.
Power supply
The detector switches the light on for 40 s.
After 40 s, it activates the Normal mode.
Testing and validating the detection
zone
Put the potentiometer 1 on Test mode and if
necessary, use the shutters to dene the detection
zone.
The Test mode is available for 3 min.
Every movement detected switches on the light for
1 s.
After 3 min without detection of movement, the
product returns to normal operation.
Limiting the detection zone
You can limit the detection zone by using the
shutters provided.
“Normal” operation (on/off)
The lighting is activated whenever the level of
luminosity dened by the potentiometer 1 is
judged to be insufcient and a movement is
detected.
After detection, the light stays on for the length of
time predened by the potentiometer 2.
The xed timing is reset after each detection.
Please note : when the potentiometer is on “auto
test”, the settings are predened.
Control by timer
An impulse is generated every 10 s whenever the
level of luminosity is judged to be insufcient and
a movement is detected when the potentiometer
2 is on
.
Operating precautions
In order to obtain optimal detection conditions, it is recommended that the following advice :
- The detector is sensitive to sun rays and wind and rain, avoid exposing it to direct sunlight and rain.
- It is preferable to maintain à distance of 1 m between a light source and the detector.
Assembly
Jutting out or on the ceiling:
- x the wall plate using the screws provided,
- connect the detector (see cabling plans in annex),
- clip the detector to the wall plate,
- screw to close.
For corner xing, the wall plate is to be xed between the accessory and the detector.
Cable entry (breakable partitions) are possible :
- by the back (box mounting), by the bottom or by the top,
- via a mould.

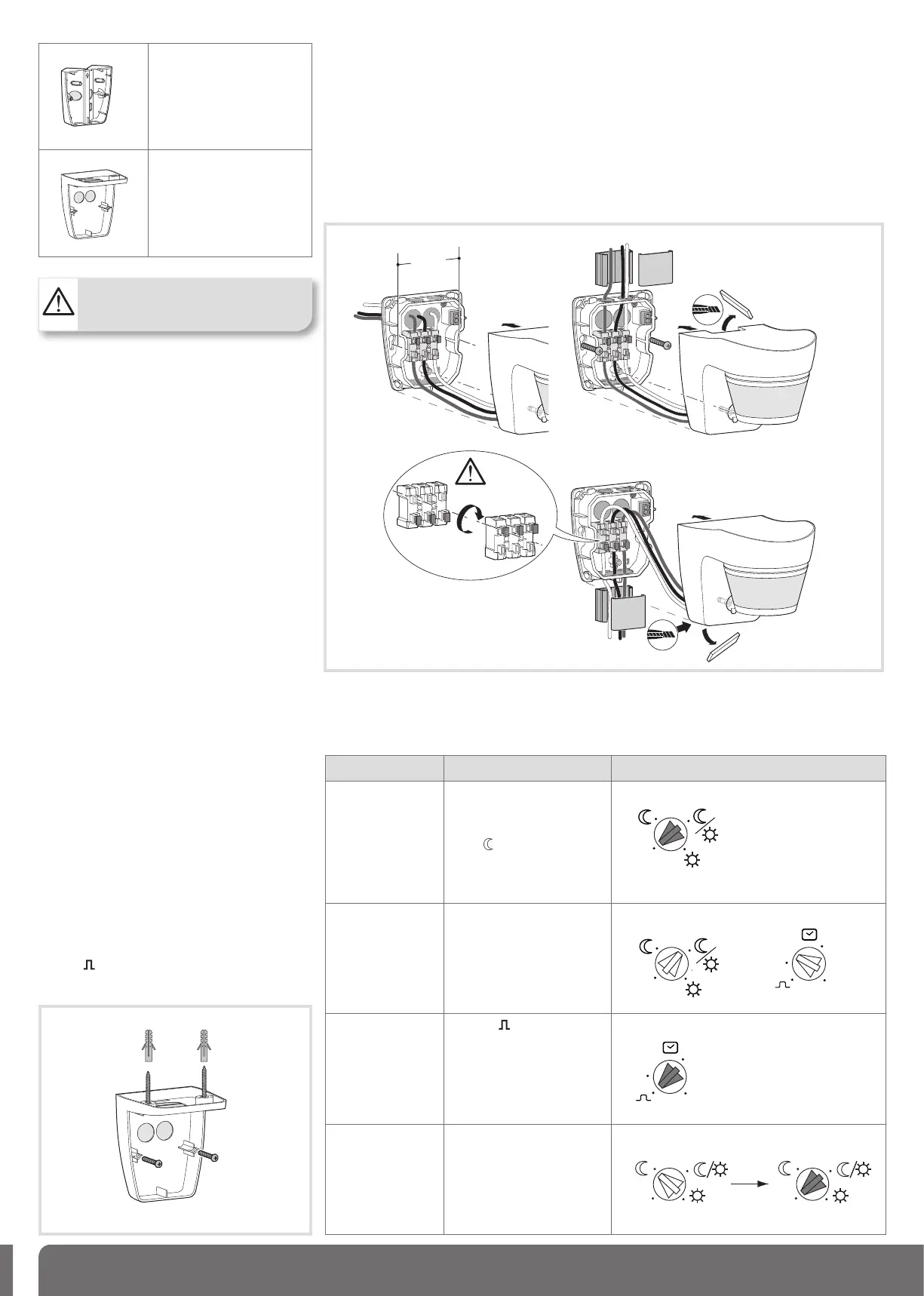

Wiring and connections (provide installation with fixed wiring)
IP 55
IP 55
IP 55
N
L
L'
N LL'
L' LN
IP 55
60 mm
Action Settings Potentiometer
Use Auto settings
(factory).
Auto Settings
Put the Lux potentiometer
1 on “auto test”.
The settings are predened :
Lux =
,
(operating at night only)
time = 3 min.
ECHELLE1
Markings PIR basicmodel
forref. hager EE82., EE83. and EE84.
forref.Flash 5211., 5221. and 5231.
15 min
5s
5min
auto
lux
test
EE82.
15 min
5s
5 min
auto
lux
test
EE82.
15 min
5s
5min
auto
lux
test
auto
lux
test
15 min
5s
5min
15 min
5s
5min
auto
lux
test
auto
test
auto
lux
lux
test
auto
lux
test
auto
lux
test
15 min
5s
5min
auto
lux
test
Automatically
switch on the light
for a dened time.
Installer settings
ECHELLE1
Markings PIR basicmodel
forref. hager EE82., EE83. and EE84.
forref.Flash 5211., 5221. and 5231.
15 min
5s
5min
auto
lux
test
EE82.
15 min
5s
5 min
auto
lux
test
EE82.
15 min
5s
5min
auto
lux
test
auto
lux
test
15 min
5s
5min
15 min
5s
5min
auto
lux
test
auto
test
auto
lux
lux
test
auto
lux
test
auto
lux
test
15 min
5s
5min
auto
lux
test
Control a timer,
a bell, etc.
Impulse
Auto settings are usable with
time = 1 s.
(cannot be changed).
ECHELLE1
Markings PIR basicmodel
forref. hager EE82., EE83. and EE84.
forref.Flash 5211., 5221. and 5231.
15 min
5s
5min
auto
lux
test
EE82.
15 min
5s
5 min
auto
lux
test
EE82.
15 min
5s
5min
auto
lux
test
auto
lux
test
15 min
5s
5min
15 min
5s
5min
auto
lux
test
auto
test
auto
lux
lux
test
auto
lux
test
auto
lux
test
15 min
5s
5min
auto
lux
test
Test and validate
the detection zone.
Test mode
Move the potentiometer 1
to “auto test”.
ECHELLE1
Markings PIR basicmodel
forref. hager EE82., EE83. and EE84.
forref.Flash 5211., 5221. and 5231.
15 min
5s
5min
auto
lux
test
EE82.
15 min
5s
5 min
auto
lux
test
EE82.
15 min
5s
5min
auto
lux
test
auto
lux
test
15 min
5s
5min
15 min
5s
5min
auto
lux
test
auto
test
auto
lux
lux
test
auto
lux
test
auto
lux
test
15 min
5s
5min
auto
lux
test
ACCESSORY FOR
CORNER FIXING
EE825 White
EE826 Charcoal
ACCESSORY FOR
CEILING FIXING
EE827 White
EE828 Charcoal
Ateha raceways
ref. ATA 12200
or ATA 63000
This device is to be installed only by a
professional electrician tter according to
local applicable installation standards.
