Haws 7261-7271 Bedienungsanleitung

Lies die bedienungsanleitung für Haws 7261-7271 (1 Seiten) kostenlos online; sie gehört zur Kategorie Nicht kategorisiert. Dieses Handbuch wurde von 8 Personen als hilfreich bewertet und erhielt im Schnitt 4.3 Sterne aus 2 Bewertungen. Hast du eine Frage zu Haws 7261-7271 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Ø 10mm

3X

Ø 8"

Ø 3/8"

Ø229mm

Ø 9"

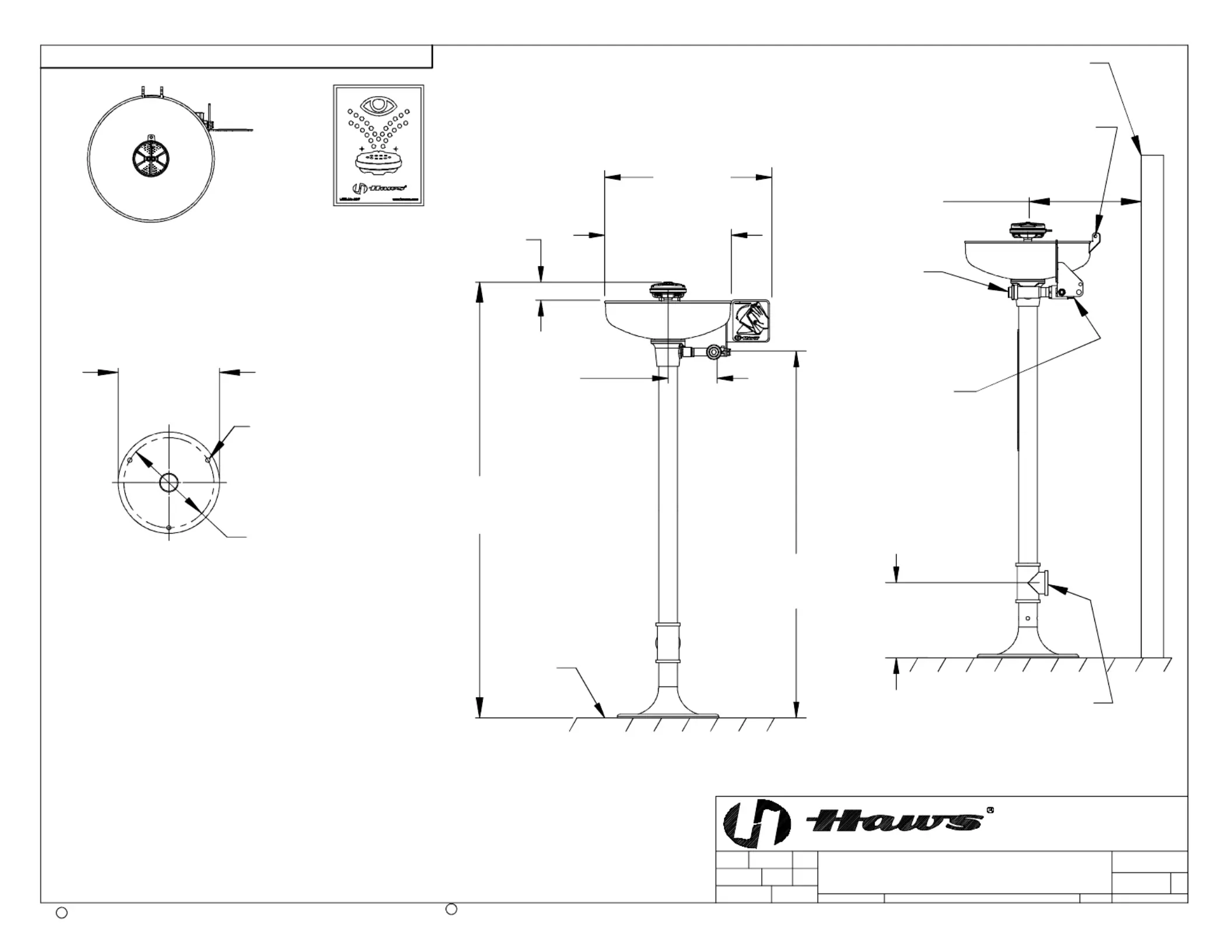

MOUNTING DETAIL

Ø 203mm

B.C.

TOP VIEW

OBSTRUCTION

FOR OPTIONAL

BRACKET

DUST COVER

STRAINER

1/2" IPS

SUPPLY

*6-3/4"

171mm

1-1/4" IPS

WASTE

LINE

FLOOR

*32-3/8"

822mm

4-1/8"

105mm

1-1/4"

32mm

381mm

Ø 11-1/4"

Ø 286mm

15"

*38"

965mm

6" MIN.

152mm

1. TO COMPLY WITH ANSI Z358.1-2009 FOR EMERGENCY EYEWASH AND EYE/FACE WASH:

- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS

- EYEWASH OR EYE/FACE WASH SHALL BE POSITIONED WITH NOZZLES NOT LESS THAN

83.8 CM (33IN.) AND NO GREATER THAN 114.3 CM (45 IN.) FROM SURFACE ON WHICH

USER STANDS AND 15.3 CM (6 IN.) MINIMUM FROM WALL OR NEAREST OBSTRUCTION.

2. *THESE DIMENSIONS MAY VARY

AND ACCEPTABLE PLUMBING PRACTICES.

± 1/2" [12.7mm]

NOTES:

APPROVED:

DRAWN:

PART NUMBER

DRAWING NO.

SCALE:

SHEETOF

REV

DRAWING TYPE:SIZE: A

BY:ECN NO.

DATE:

DATE:

ECN:

REVISED PER

CHK'D.:

Haws Corporation - All Rights Reserved.

HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.

C

R

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (755) 359-7424

E-MAIL: [email protected]

WEBSITE: WWW.HAWSCO.COM

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS

MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

CJL

04/92

09398A0018

0002080043.D

7261-7271

1:1

11

HM

INSTALLATION

4910

2014

SIGN IS TO BE POSITIONED SUCH

THAT IT IS VISIBLE WITHIN THE

AREA SERVED BY THE EYEWASH
