HOLE SEALS Hole SealS

EQUIPMENT PROTECTION SOLUTIONSSUBJECT TO CHANGE WITHOUT NOTICEACCESSORIES1

Spec-00182

763.422.2211763.422.2600

ACCESSO RIES

Hole SealS

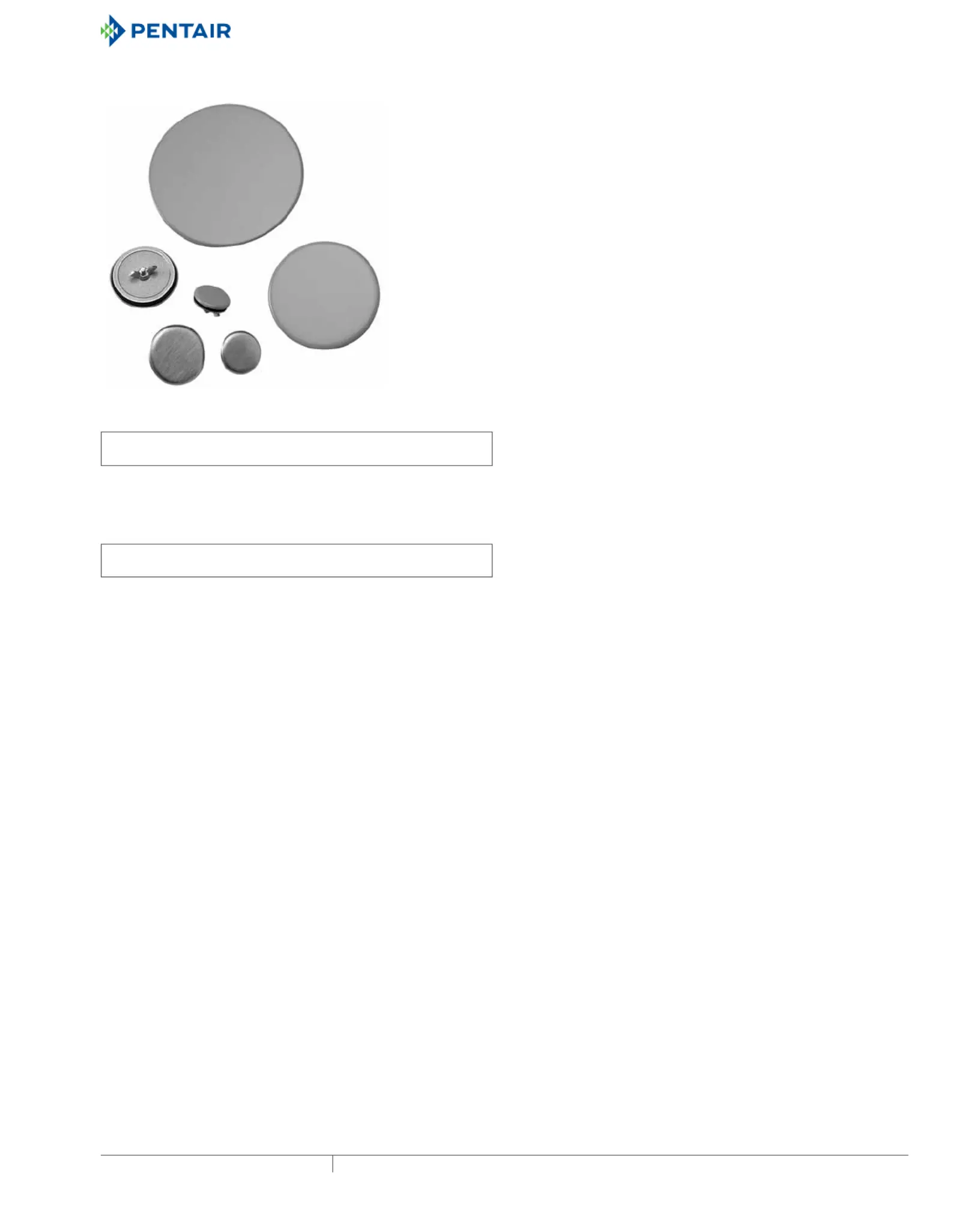

HOLSEALERS™ HOLE SEALS

INDUSTRY STANDARDS

Steel Hole Seals

UL 508A Component Recognized; Type 3R, 4, 12, 13; File No.

E61997

CSA File No. 42186; Type 3R, 4, 12, 13

NEMA/EEMAC Type 3R, 4, 12, 13

IEC 60529, IP66

Stainless Steel Hole Seals

UL 508A Component Recognized; Type 3R, 4, 4X, 12, 13; File No.

E61997

CSA File No. 42186; Type 3R, 4, 4X, 12, 13

NEMA/EEMAC Type 3R, 4, 4X, 12, 13

IEC 60529, IP66

APPLICATION

Seal extra pushbutton holes, conduit openings and knockout

openings against dust, dirt, oil and water with Hoffman HOL-

SEALERS™ . Seals will cover any size or shape of hole from .19-in.

diameter to maximum diameter shown in table. Can be used on

enclosure walls up to .31-in. (8-mm) thick.

FEATURES

• Available in multiple colors and sizes

• Oil-resistant gasket provided

SPECIFICATIONS

Steel Models

• 16 gauge galvanized steel backplate

• Plated stud (10-32x5/8) and wing nut

Stainless Steel Models

• 16 gauge stainless steel backplate

• Seal, backplate, stud (10-24x5/8) and wing nut are 300 series

stainless steel

FINISH

Steel seals have polyester powder paint finish over galvanized front

surface.

Stainless steel seals have polished front surface.

Bulletin: A80HS

Spec-00182 D

Hole SealS Hole SealS

PH 763.422.2211 • FAX 763.422.2600 • HOFFMANONLINE.COMEQUIPMENT PROTECTION SOLUTIONS acceSSorieS 2

Standard Product

Catalog Number

Material Finish/Color For

Maximum Hole Diameter

in./mm

Hol-Sealer Diameter

in./mm

AS056M Steel ANSI 61 gray Micro 0.56

0.80

AS056MSS Stainless Steel Stainless Steel Micro 0.56

0.80

AS056CB Steel Chrysler beige Micro 0.56

0.80

AS056MFB Steel Ford brown Micro 0.56

0.80

AS056MLG Steel Light gray Micro 0.56

0.80

ASPBG Steel ANSI 61 gray 22.5-mm pushbutton holes 0.88

1.22

ASPBGSS Stainless Steel Stainless Steel 22.5-mm pushbutton holes 0.88

1.22

AS050 Steel ANSI 61 gray 1/2-in. conduit holes 0.88

1.38

AS050LG Steel Light gray 1/2-in. conduit holes 0.88

1.38

AS050SS Stainless Steel Stainless Steel 1/2-in. conduit holes 0.88

1.38

AS075 Steel ANSI 61 gray 3/4-in. conduit holes 1.06

1.56

AS075SS Stainless Steel Stainless Steel 3/4-in. conduit holes 1.06

1.56

AS075LG Steel Light gray 3/4-in. conduit holes 1.06

1.56

ASPB Steel ANSI 61 gray 30.5-mm pushbutton holes 1.25

1.75

ASPBSS Stainless Steel Stainless Steel 30.5-mm pushbutton holes 1.25

1.75

ASPBLG Steel Light gray 30.5-mm pushbutton holes 1.25

1.75

AS100 Steel ANSI 61 gray 1-in. conduit holes 1.38

1.88

AS100SS Stainless Steel Stainless Steel 1-in. conduit holes 1.38

1.88

AS100LG Steel Light gray 1-in. conduit holes 1.38

1.88

AS125 Steel ANSI 61 gray 1 1/4-in. conduit holes 1.69

2.19

AS125SS Stainless Steel Stainless Steel 1 1/4-in. conduit holes 1.69

2.19

AS125LG Steel Light gray 1 1/4-in. conduit holes 1.69

2.19

AS150 Steel ANSI 61 gray 1 1/2-in. conduit holes 2.00

2.50

AS150SS Stainless Steel Stainless Steel 1 1/2-in. conduit holes 2.00

2.50

AS150LG Steel Light gray 1 1/2-in. conduit holes 2.00

2.50

AS200 Steel ANSI 61 gray 2-in. conduit holes 2.50

3.00

AS200SS Stainless Steel Stainless Steel 2-in. conduit holes 2.50

3.00

AS200LG Steel Light gray 2-in. conduit holes 2.50

3.00

AS250 Steel ANSI 61 gray 2 1/2-in. conduit holes 3.00

3.50

AS250SS Stainless Steel Stainless Steel 2 1/2-in. conduit 3.00

3.50

AS300 Steel ANSI 61 gray 3-in. conduit holes 3.62

4.12

105

AS300SS Stainless Steel Stainless Steel 3-in. conduit holes 3.62

4.12

105

AS350 Steel ANSI 61 gray 3 1/2-in. conduit holes 4.12

105

4.62

117

AS350SS Stainless Steel Stainless Steel 3 1/2-in. conduit holes 4.12

105

4.62

117

AS400 Steel ANSI 61 gray 4-in. conduit holes 4.62

117

5.12

130

AS400SS Stainless Steel Stainless Steel 4-in. conduit holes 4.62

117

5.12

130

Spec-00182 D

HOLE SEALS Hole SealS

EQUIPMENT PROTECTION SOLUTIONSSUBJECT TO CHANGE WITHOUT NOTICEACCESSORIES3

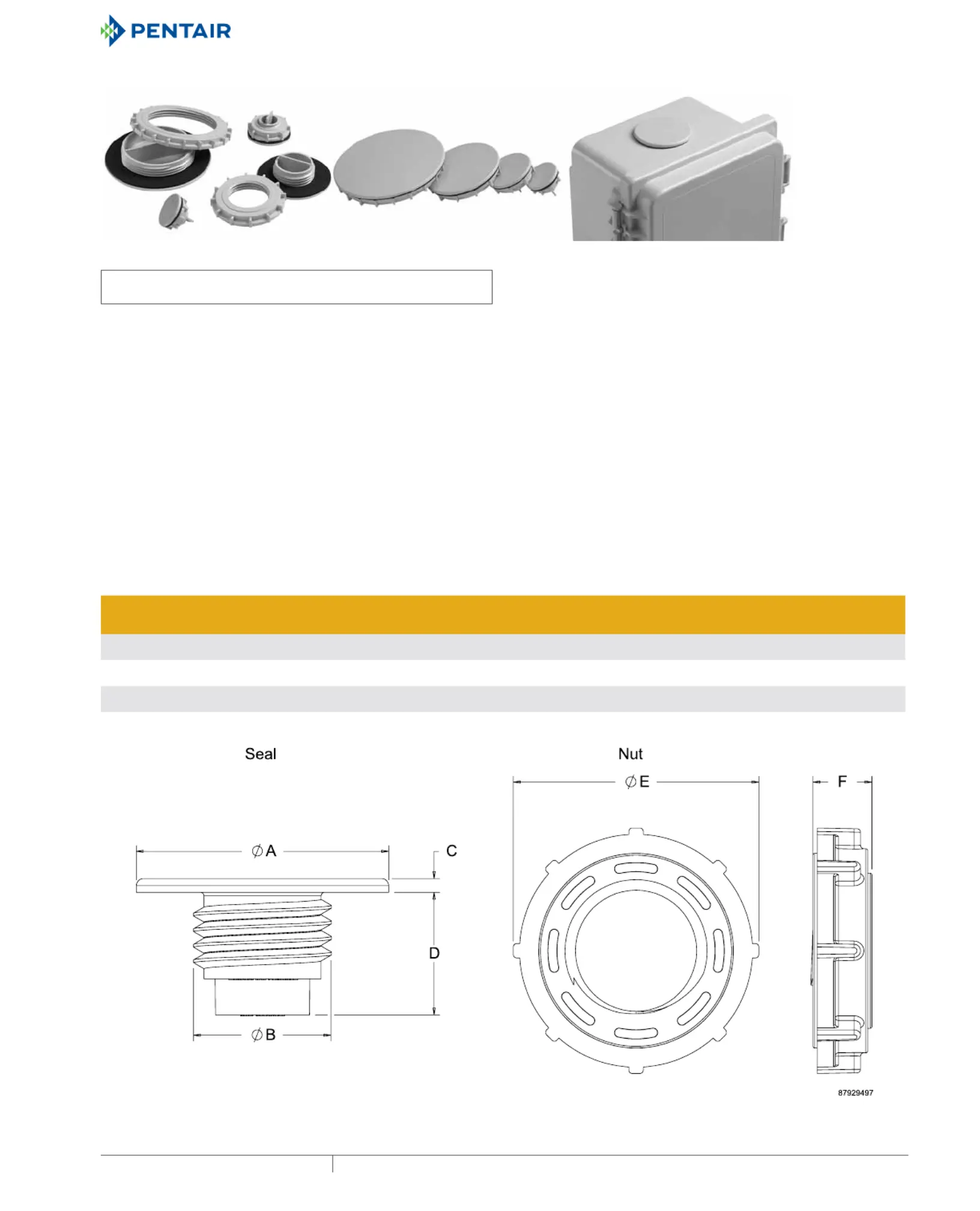

HOLSEALERS™ NONMETALLIC HOLE SEALS

INDUSTRY STANDARDS

UL 508A Component Recognized; Type 3R, 4, 4X, 12, 13; File No.

E61997

CSA File No. 42186: Type 3R, 4, 4X, 12, 13

NEMA/EEMAC Type 3R, 4, 4X, 12, 13

IEC 60529, IP66

APPLICATION

Designed for use in corrosive environments to seal extra

pushbutton holes, conduit openings and knockout openings against

dust, dirt, oil and water. These hole seals are suitable for sealing

enclosure openings in industries such as petroleum and chemical

processing, wastewater processing, pulp and paper, outdoor

monitoring and any other industry exposed to harsh environments.

Innovative 3-in-1 self-centering design

• Thread self-centers on one hole size

• Nut orientation “A” self-centers on a second hole size (see Nut

Orientation drawing)

• Nut orientation “B” self-centers on a third hole size

FEATURES

• Innovative 3-in-1 self-centering design reduces inventory

requirements; 4 models cover 12 common industry cutouts

ranging from 1/2 in. to 4 in.

• Non-metallic construction provides superior corrosion

resistance for reliability in harsh environments

• UV stabilized; ideal for direct sunlight (avoids fiberbloom

associated with fiberglass)

• Chemically resistant to a broad range of chemicals

• Durable and impact resistant; resists cracking

• Sold in quantities of 2 per catalog number

• Cost-effective alternative to stainless steel

• Polyester material has a UL 94 rating of 5VA

• Easy to install; no tools required

SPECIFICATIONS

• Thread and nut are constructed of non-glass-filled polyester

• Oil-resistant gasket

FINISH

RAL 7035 light-gray textured finish

Bulletin: A80HS

Standard Product Non-Metallic Hole Seals

Catalog Number

AxBxC in./mm Qty.

in./mm

Max. Hole

Diameter

in./mm

Outside

Diameter

in./mm

Torque (in.-lb.)

ASPB05075NM 1.56 x 0.85 x 0.12

40 x 22 x 3

2 1.28

1.48

.47

1.28

1.56

ASPB100125NM 2.19 x 1.19 x 0.12

56 x 30 x 3

2 1.18

2.14

.51

1.91

2.19

AS150200250NM 3.50 x 1.95 x 0.12

89 x 49 x 3

2 .95

3.42

.51

3.14

3.50

AS300350400NM 5.12 x 3.55 x 0.12

130 x 90 x 3

2 .81

5.05

128

.51

4.77

121

5.12

130

Produktspezifikationen

Marke:	Hoffman
Kategorie:	Nicht kategorisiert
Modell:	AS100SS
Produktfarbe:	Edelstahl
Internationale Schutzart (IP-Code):	IP66
Material:	Edelstahl
Zertifizierung:	UL 508A Component Recognized; Type 3R, 4, 4X, 12, 13; File No. E61997\nCSA File No. 42186; Type 3R, 4, 4X, 12, 13\nNEMA/EEMAC Type 3R, 4, 4X, 12, 13\nIEC 60529
Typ:	Lochabdichtung
Menge pro Packung:	- Stück(e)
Durchmesser:	48 mm
Nachhaltigkeitszertifikate:	RoHS
