Seite 1/20

Rev. B

P/N 89112522

PROAIR

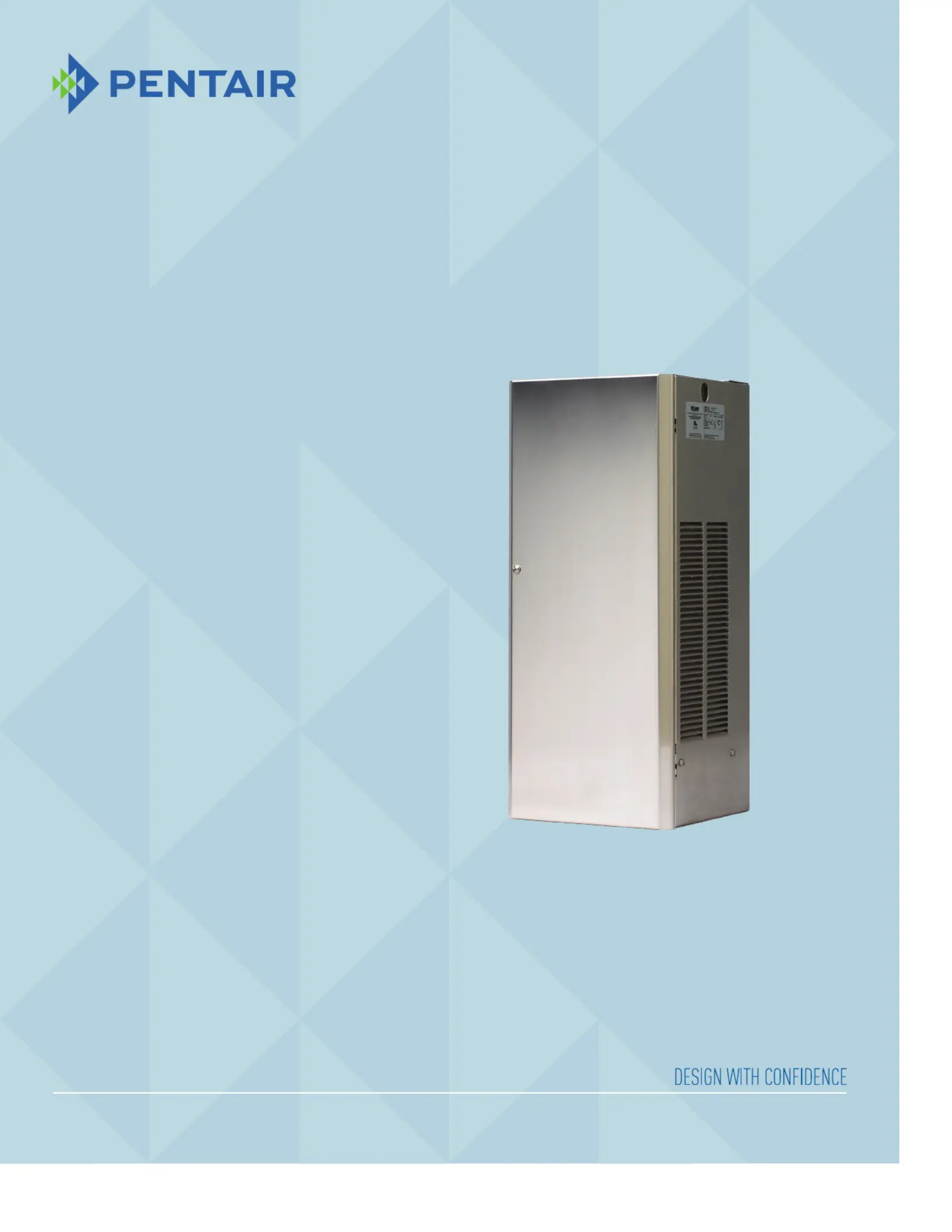

Air Conditioner

Cr23 Model

INSTRUCTION MANUAL

89112522

- 2 -

TABLE OF CONTENTS

RECEIVING THE AIR CONDITIONER ...........................................................................................................................................3

HANDLING AND TESTING THE AIR CONDITIONER ...................................................................................................................3

INSTALLATION INSTRUCTIONS ..................................................................................................................................................4

SYSTEM CONTROLS ....................................................................................................................................................................4

Level I Temperature Controller ................................................................................................................................................................. 4

Level II and III Temperature Controller ..................................................................................................................................................... 4

TECHNICAL INFORMATION .........................................................................................................................................................5

DESIGN DATA ............................................................................................................................................................................................. 5

DIMENSION DRAWING .............................................................................................................................................................................. 5

Mounting Gasket Kit .................................................................................................................................................................................. 6

Design Notes ...................................................................................................................................................................................... 6

Mounting Cutout Dimensions .................................................................................................................................................................... 6

Components List ........................................................................................................................................................................................ 7

Optional Parts ............................................................................................................................................................................................ 7

Parts List .................................................................................................................................................................................................... 7

Wire Diagrams and Schematics ................................................................................................................................................................ 8

Wire Diagram, Level I ......................................................................................................................................................................... 8

Wire Diagram, Level I with Electric Heater ....................................................................................................................................... 9

Wire Diagram, Level II and III .......................................................................................................................................................... 10

Wire Diagram, Level II and III with Electric Heater ........................................................................................................................ 12

TEMPERATURE CONTROL ........................................................................................................................................................14

PRINCIPLES OF OPERATION ....................................................................................................................................................14

MAINTENANCE 14 ..........................................................................................................................................................................

Compressor 14 .............................................................................................................................................................................................

Inlet Air Filter ........................................................................................................................................................................................... 14

How To Remove, Clean or Install a New Inlet Air Filter ......................................................................................................................... 15

Condenser and Evaporator Air Movers ................................................................................................................................................... 15

Refrigerant Loss ...................................................................................................................................................................................... 15

TROUBLE SHOOTING .................................................................................................................................................................16

Basic Air Conditioning Trouble Shooting Check List .............................................................................................................................. 16

Symptoms and Possible Causes: ............................................................................................................................................................ 17

WARRANTY 18 ................................................................................................................................................................................

RETURN AND REPAIR POLICY ................................................................................................................................................................ 18

LIMITATION OF LIABILITY........................................................................................................................................................................ 19

89112522

- 3 -

RECEIVING THE AIR CONDITIONER

Inspect the air conditioner. Check for concealed damage that may have occurred during shipment. Look for dents,

scratches, loose assemblies, evidence of oil, etc. Damage evident upon receipt should be noted on the freight bill.

Damage should be brought to the attention of the delivering carrier -- NOT to Pentair Equipment Protection --

within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with

the delivering carrier.

Pentair Equipment Protection cannot accept responsibility for freight damages; however, we will assist you in any

way possible.

HANDLING AND TESTING THE AIR CONDITIONER

If the air conditioner has been in a horizontal position, be certain it is placed in an upright, vertical or mounting

position for a minimum of five (5) minutes before operating.

Do not attempt to operate the air conditioner while it is horizontal

or on its side, back or front. The refrigeration compressor is filled

with lubricating oil. This will cause permanent damage to the air

conditioner and also voids the warranty.

CAUTION

TEST FOR FUNCTIONALITY MOUNTING THE AIR CONDITIONER TO THE ENCLOSURE.BEFORE

Refer to the nameplate for proper electrical current requirements, and then connect the power cord to a properly

grounded power supply. Minimum circuit ampacity should be at least 125% of the amperage shown in the design

data section for the appropriate model. No other equipment should be connected to this circuit to prevent

overloading.

Operate the air conditioner for five (5) to ten (10) minutes. No excessive noise or vibration should be evident

during this run period. The condenser blower (ambient air), the evaporator blower (enclosure air), and the

compressor should be running.

Condenser air temperatures should be warmer than normal room temperatures within a few minutes.

The compressor is provided with automatic reset thermal overload protection. This thermo-switch is located

and mounted inside the plastic enclosure clipped to the compressor. The switch operates when the compressor

overheats due to clogged or dirty inlet air filter or if ambient air temperatures exceed nameplate rating or if

enclosure dissipated heat loads exceed the rated capacity of the air conditioner. The thermal overload switch will

actuate and stop compressor operation. The blowers will continue to operate and the compressor will restart

after it has cooled to within the thermal overload cut-in temperature setting.

Produktspezifikationen

Marke:	Hoffman
Kategorie:	Klimaanlage
Modell:	CR230216G002
Breite:	254 mm
Tiefe:	222.25 mm
Gewicht:	25854 g
Produktfarbe:	Edelstahl
Höhe:	584.2 mm
AC Eingangsspannung:	100 - 120 V
Typ:	Einteilige mobile Klimaanlage
Stromstärke:	4 A
Geräuschpegel:	- dB
Klimaanlage Funktionen:	Circulation, Cooling
Kühlleistung (max):	1600 BTU/h
Kühlkapazität in Watt (nominal):	469 W
Kühlleistung in Watt (max):	- W
Heizkapazität in Watt (nominal):	- W
Heizleistung in Watt (max):	- W
Energieverbrauch pro Stunde (Kühlung):	- kWh
Energieverbrauch pro Stunde (Heizung):	- kWh
Jährlicher Energieverbrauch (Kühlung):	- kWh
