Seite 1/16

Rev. G

P/N 10-1008-194

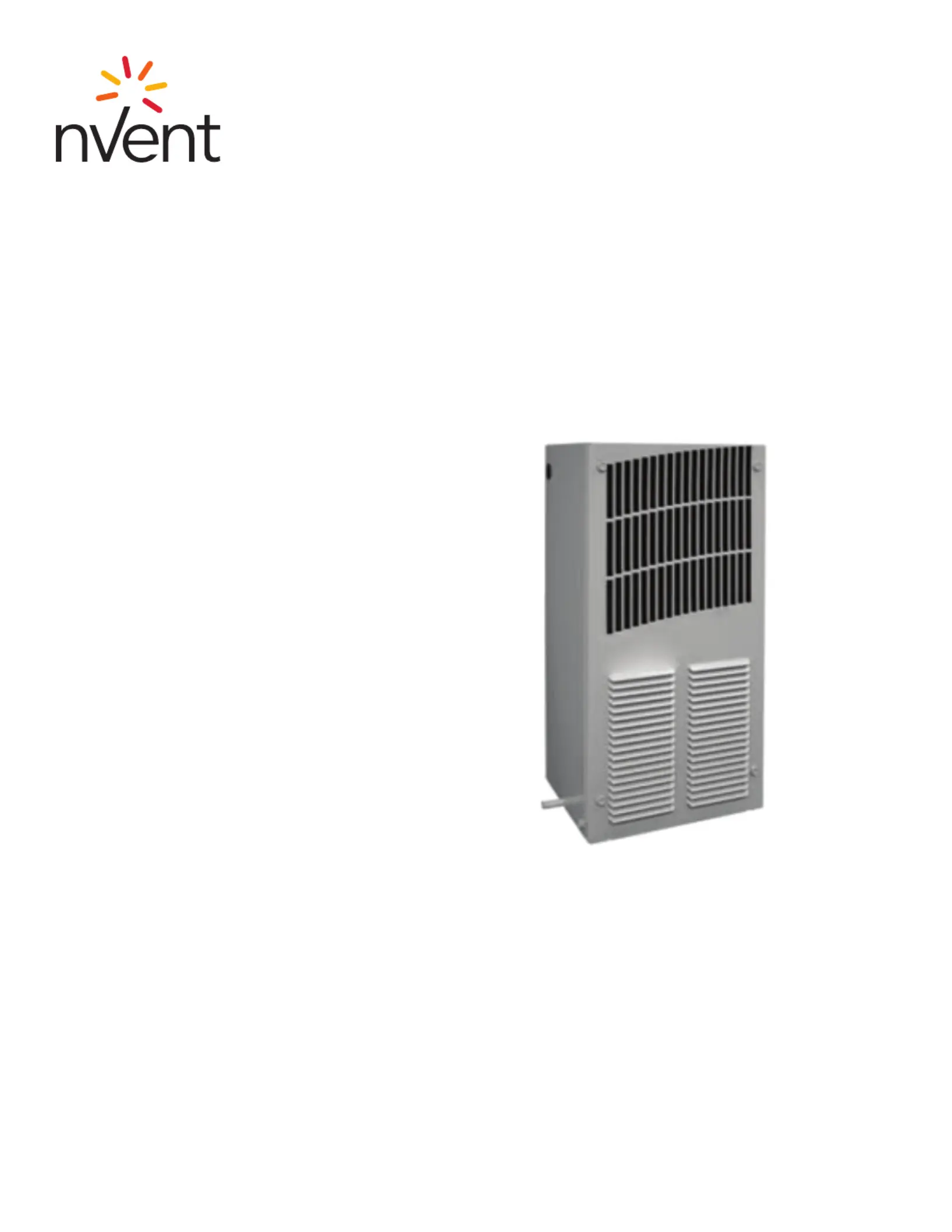

T-SERIES

Air Conditioner

t15 Model

INSTRUCTION MANUAL

89059119

- 2 -

NOTE: Some of the information in this manual may not apply if a special unit was ordered. If

additional drawings for a special unit are necessary, they have been inserted. Contact nVent

Equipment Protection if further information is required.

WARRANTY AND RETURN POLICY

https://hoffman.nvent.com/en/hoffman/warranty-information

TABLE OF CONTENTS

Warranty and Return Policy .............................................................................................................................................................2

RECEIVING THE AIR CONDITIONER ...............................................................................................................................................3

HANDLING AND TESTING THE AIR CONDITIONER ......................................................................................................................3

INSTALLATION INSTRUCTIONS .....................................................................................................................................................4

Design Data .....................................................................................................................................................................................................4

Dimensional Drawing .....................................................................................................................................................................................4

Mounting Cutout Dimensions ........................................................................................................................................................................5

Components List ............................................................................................................................................................................................5

Wire Diagrams .................................................................................................................................................................................................6

Without Heat ...........................................................................................................................................................................................6

With Heat .................................................................................................................................................................................................7

Schematics .....................................................................................................................................................................................................8

TEMPERATURE CONTROL ..............................................................................................................................................................9

Units With heat ................................................................................................................................................................................................9

PRINCIPLES OF OPERATION ..........................................................................................................................................................9

MAINTENANCE 10 .............................................................................................................................................................................

Compressor 10 ...................................................................................................................................................................................................

Inlet Air Filter .................................................................................................................................................................................................10

How To Remove, Clean or Install a New Inlet Air Filter .............................................................................................................................10

Condenser and Evaporator Air Movers .......................................................................................................................................................11

Refrigerant Loss ............................................................................................................................................................................................11

TROUBLE SHOOTING ................................................................................................................................................................... 12

Basic Air Conditioning Trouble Shooting Check List .................................................................................................................................12

Symptoms and Possible Causes:................................................................................................................................................................13

F-GAS INFORMATION ................................................................................................................................................................... 13

89059119

- 3 -

RECEIVING THE AIR CONDITIONER

Inspect the air conditioner. Check for concealed damage that may have occurred during shipment. Look for dents,

scratches, loose assemblies, evidence of oil, etc. Damage evident upon receipt should be noted on the freight bill.

Damage should be brought to the attention of the delivering carrier -- NOT to nVent Equipment Protection -- within

15 days of delivery. Save the carton and packing material and request an inspection. Then le a claim with the

delivering carrier.

nVent Equipment Protection cannot accept responsibility for freight damages; however, we will assist you in any

way possible.

HANDLING AND TESTING THE AIR CONDITIONER

If the air conditioner has been in a horizontal position, be certain it is placed in an upright, vertical or mounting

position for a minimum of ve (5) minutes before operating.

Do not attempt to operate the air conditioner while it is horizontal

or on its side, back or front. The refrigeration compressor is lled

with lubricating oil. This will cause permanent damage to the air

conditioner and also voids the warranty.

CAUTION

TEST FOR FUNCTIONALITY MOUNTING THE AIR CONDITIONER TO THE ENCLOSURE.BEFORE

Refer to the nameplate for proper electrical current requirements, and then connect the power cord to a properly

grounded power supply. Minimum circuit ampacity should be at least 125% of the amperage shown in the

design data section for the appropriate model. No other equipment should be connected to this circuit to prevent

overloading.

Operate the air conditioner for ve (5) to ten (10) minutes. No excessive noise or vibration should be evident

during this run period. The condenser blower (ambient air), the evaporator blower (enclosure air), and the

compressor should be running.

Condenser air temperatures should be warmer than normal room temperatures within a few minutes.

The compressor is provided with automatic reset thermal overload protection. This thermo-switch is located

and mounted inside the plastic enclosure clipped to the compressor. The switch operates when the compressor

overheats due to clogged or dirty inlet air lter or if ambient air temperatures exceed nameplate rating or if

enclosure dissipated heat loads exceed the rated capacity of the air conditioner. The thermal overload switch

will actuate and stop compressor operation. The blowers will continue to operate and the compressor will restart

after it has cooled to within the thermal overload cut-in temperature setting.

Produktspezifikationen

Marke:	Hoffman
Kategorie:	Klimaanlage
Modell:	T150116G100
Produktfarbe:	Grau
AC Eingangsspannung:	100 - 115 V
AC Eingangsfrequenz:	50 - 60 Hz
Zertifizierung:	UL/cUL Listed\nCE\nEAC
Typ:	Klimaanlageneinheit Innen
Gehäusematerial:	Metall
Kältemittelart:	R134A
Kühlmittelgewicht:	113 g
Klimaanlage Funktionen:	Kühlung
Kühlkapazität in Watt (nominal):	235 W
Energieverbrauch pro Stunde (Kühlung):	- kWh
Energieverbrauch pro Stunde (Heizung):	- kWh
Jährlicher Energieverbrauch (Kühlung):	- kWh
Heizleistung in Watt (nominal) (wärmere Heizperiode):	- W
Heizleistung in Watt (nominal) (durchschnittliche Heizperiode):	- W
Heizleistung in Watt (nominal) (kältere Heizperiode):	- W
Betriebstemperaturbereich (Kühlung) (T-T):	-40 - 55 °C
Jährlicher Energieverbrauch (Heizung) (wärmere Heizperiode):	- kWh
Jährlicher Energieverbrauch (Heizung) (durchschnittliche Heizperiode):	- kWh
Jährlicher Energieverbrauch (Heizung) (kältere Heizperiode):	- kWh
zulässige Last (Kühlung):	- kW
zulässige Last (Heizung) (wärmere Heizperiode):	- kW
zulässige Last (Heizung) (durchschnittliche Heizperiode):	- kW
zulässige Last (Heizung) (kältere Heizperiode):	- kW
Geräuschpegel Innengerät (hohe Geschwindigkeit):	53 dB
Breite der Indooreinheit:	191 mm
Tiefe der Indooreinheit:	160 mm
Höhe der Indooreinheit:	400 mm
Innengerätgewicht:	12000 g
Geräuschpegel Außengerät:	- dB
Thermostatbereich:	- °C
Kühlleistung (min):	800 BTU/h
