PROLINE G2 INTERNAL COMPONENTS Rack-Mount ShelveS and acceSSoRieS

nVent.com/HOFFMANSUBJECT TO CHANGE WITHOUT NOTICEMODULAR ENCLOSURE SOLUTIONS1

Spec-01202 F

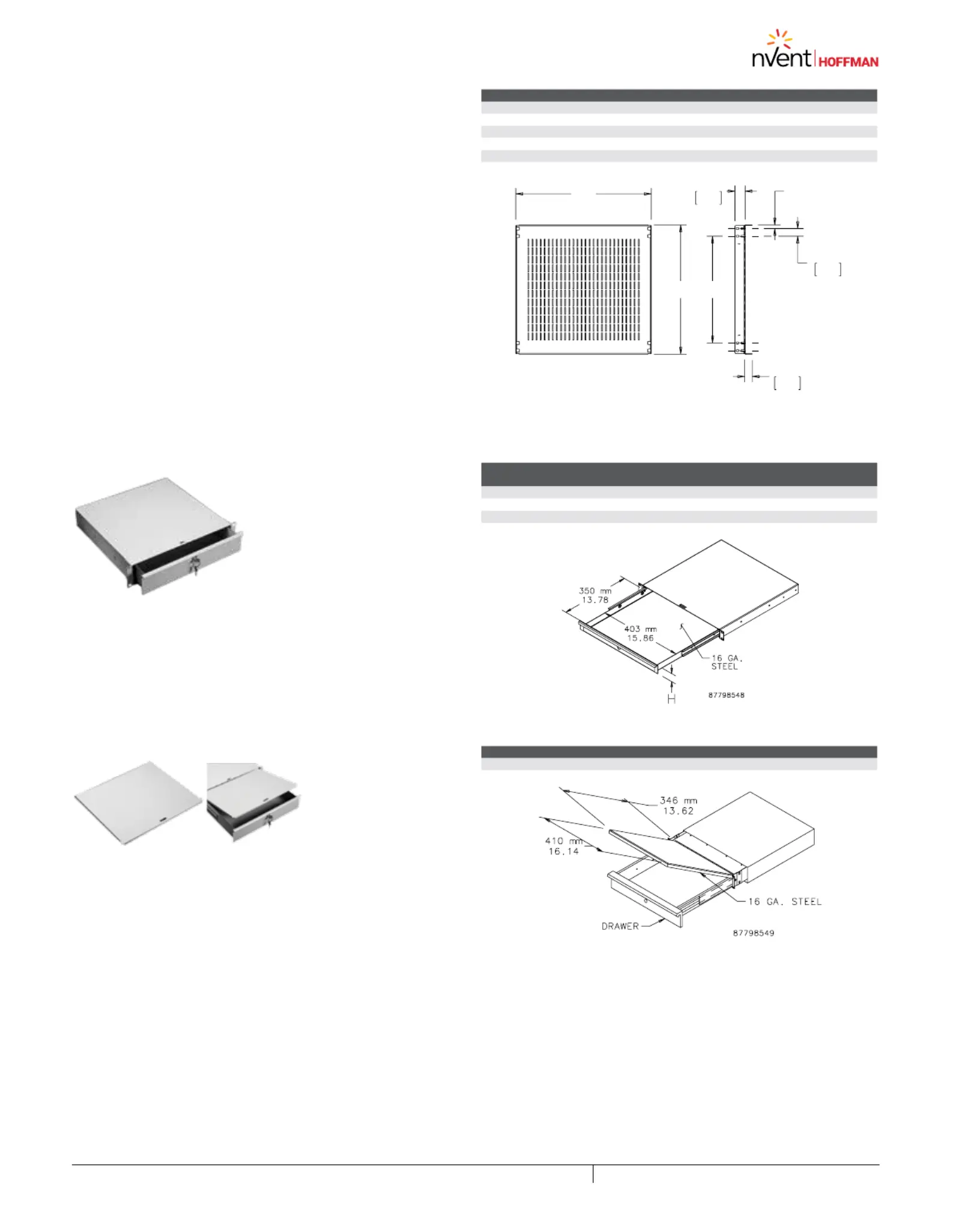

RACK-MOUNT SLIDING SHELF

The Rack-Mount Sliding Shelf allows easy access to shelf-mounted

devices. Shelf is 16-gauge steel with 12-gauge steel supports.

The entire assembly is nished with RAL 7035 textured light-gray

polyester powder paint. The shelf mounts to the front surface of

front and back rack angles.

When mounted directly to a frame, load rating is 150 lb. (68 kg) with

four rack angle mountings and 75 lb. (34 kg) with front rack angle

mounting.

Rack accessories that are shorter than the enclosure depth can be

mounted to rack angles or frame accessory brackets attached to

grid straps. Order these items separately.

Note: only mount shelves in applications with four points of

attachment.

Bulletin: P20

2-ISO2

-

'



>@



>@





>@

/

Catalog Number

D Max

in./mm

L

in./mm

J

in./mm

Shelf Pullout

in./mmFits Rack Width

Rack Units

P19SHP6837.40

950

16.72

425

16.20

412

17.00

432

19 in.2

P19SHP81041.30

1050

24.59

625

16.20

412

17.00

432

23 in.2

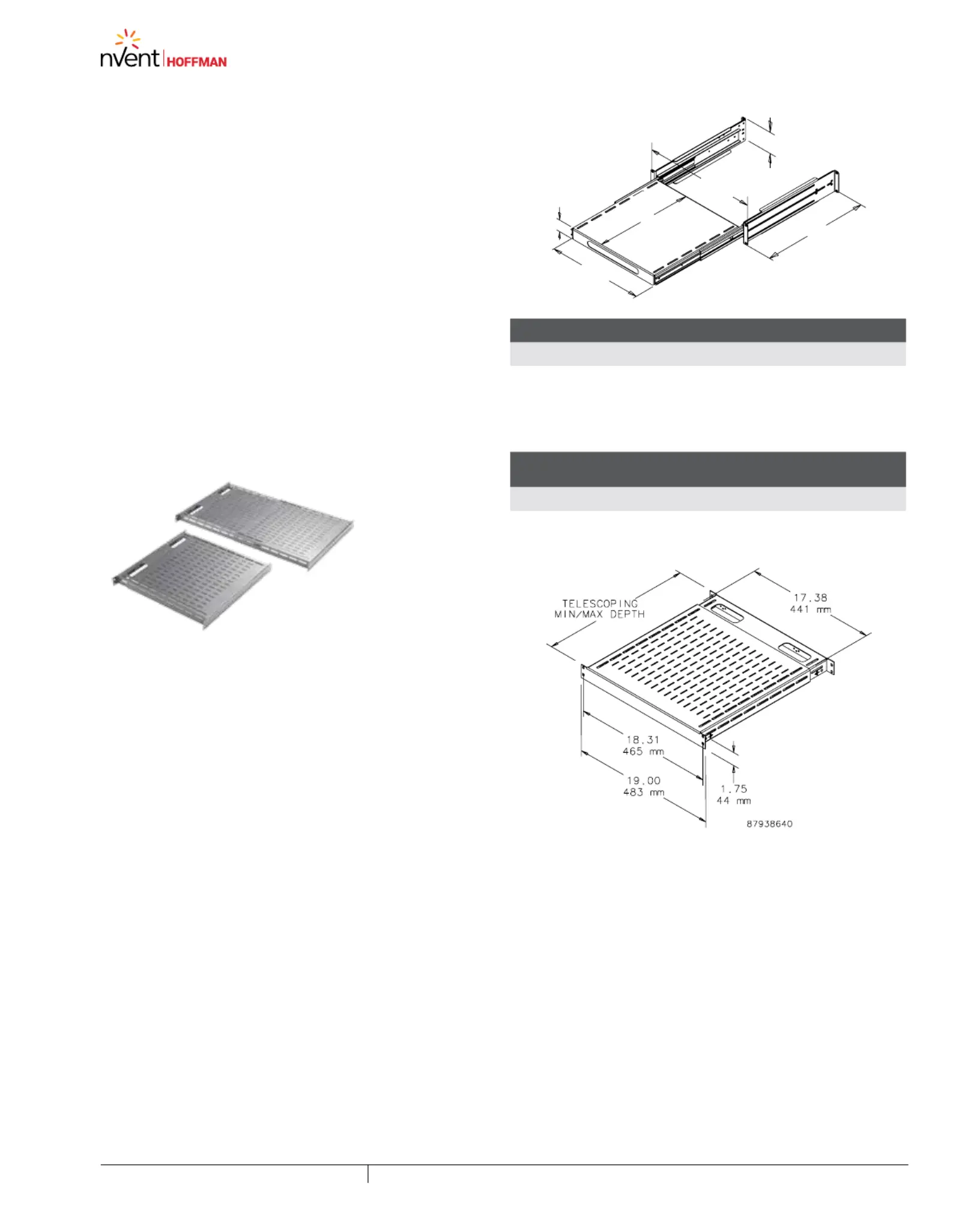

TOOL-LESS SHELF

An easy-to-install tool-less vented 19-in. shelf. Mounts onto

rack angles that have EIA-spaced square holes (.375 in.). Shelf

slides open and provides a variable-sized, continuous surface

for equipment. Back of shelf has oval cutouts for power and data

cables. Accessory hole patterns at back of shelf t small and large

D-rings to help manage cable. Made of steel with a 150 lb. (68 kg)

static load rating. Available with RAL 9005 black or RAL 7035 gray

polyester powder coat nish.

Note: For square-hole rack angles only!

Bulletin: DACCY

Catalog Number

DescriptionFinish

Minimum

Depth

mm/in.

Maximum

Depth

mm/in.

Rack Angle Type

D19FVt69GShelf, vented, 19 in. tool-lessGray495

19.50

851

33.50

Square hole only

D19FVt912GShelf, vented, 19 in. tool-lessGray792

31.20

1151

45.30

Square hole only

Minimum and maximum depth measured from rack angle to rack angle.
