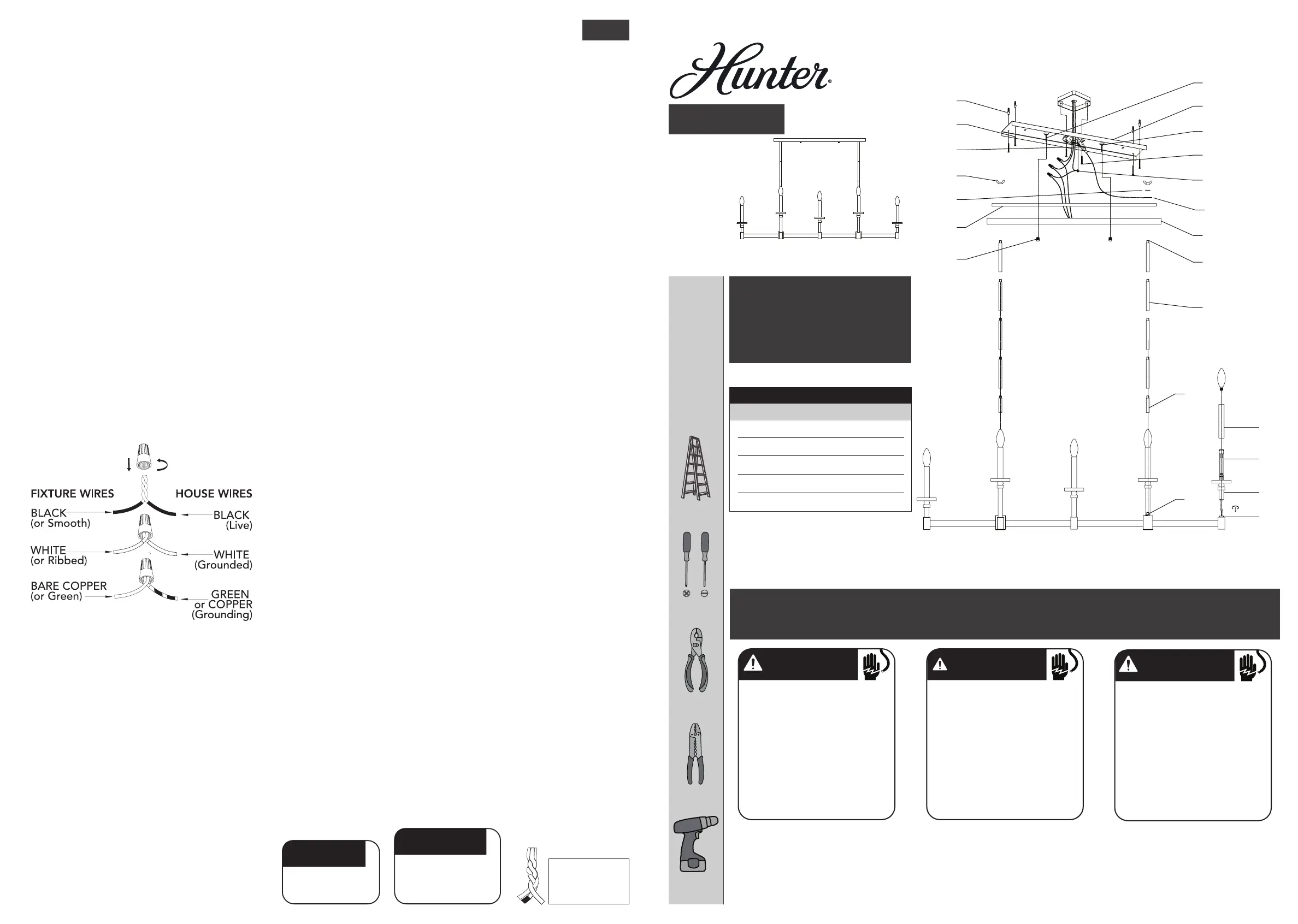

INSTALLATION INSTRUCTIONS

INSTRUCCIONES DE INSTALACIÓN/ INSTRUCTIONS D’INSTALLATION

For Models:

Para los Modelos:

Pour les Modèles:

Here are the

tools you’ll

need to

complete your

installation:

Estas son las

herramientas

que usted

necesitará para

completar su

instalación:

Voici les outils

dont vous

aurez besoin

pour réaliser

l’installation:

Ladder

Escalera

Échelle

Pliers

Alicates

Pince

Wire Strippers

Pelacables

Pince à dénuder

READ AND SAVE THESE INSTRUCTIONS

These instructions are provided for your safety. It

is very important that they are read carefully and

completely before beginning installation of the

lighting xture.

LEA Y GUARDE ESTAS INSTRUCCIONES

Estas instrucciones se proporcionan para su

seguridad. Es muy importante leerlas detenid-

amente y completamente antes de comenzar la

instalación de la lámpara.

LISEZ ET CONSERVEZ CES INSTRUCTIONS

Ces instructions sont fournies pour votre sécurité.

Il est très important de les lire attentivement dans

leur intégralité avant d’entreprendre l’installation

du luminaire.

Fixture weight ±2 lbs:

Peso ±2 lb:

Poids xe ±2 lbs:

•

WARNING

• All wiring must be in accordance with national

and local electrical codes ANSI/NFPA 70. If you

are unfamiliar with wiring or in doubt, consult a

qualied electrician.

• To avoid possible electrical shock, before

installing your light xture, disconnect the power

by turning off the circuit breakers to the outlet box

associated with the wall switch location.

• The lighting xture must be grounded. If the

ground wire for the installation site is not present,

immediately STOP installation and consult a

qualied electrician.

•

• Todo el cableado debe realizarse de acuerdo con

los códigos eléctricos locales y nacionales ANSI/

NFPA 70. Si no está familiarizado con el cableado,

o si tiene duda, consulte a un electricista calicado.

• Para evitar una posible descarga eléctrica, antes

de instalar su lámpara, desconecte la energía

apagando los interruptores automáticos (breakers)

que alimentan la caja de salida asociada con la

ubicación del interruptor de pared.

ADVERTENCIA

• L’appareil d’éclairage doit être mis à la terre.

Si le l de terre du lieu d’installation n’est pas

présent, ARRÊTEZ immédiatement l’installation et

consultez un électricien qualié.

•

AVERTISSEMENT

•

Tout le câblage doit être conforme aux codes

électriques nationaux et locaux en vigueur et à la

norme ANSI/NFPA70. Si vous n'avez pas l'habitude

de faire ce câblage ou en cas de doute, adressez-

vous à un électricien qualié.

• Pour éviter tout choc électrique, avant d’installer

le luminaire, coupez le courant en éteignant les

disjoncteurs de la boîte électrique associée à

l’interrupteur mural.

•

Le luminaire doit être mis à la terre. Si le l

de terre du lieu d’installation n’est pas présent,

ARRÊTER immédiatement l’installation et

consulter un électricien qualié.

©2021 Hunter Fan Co.

Light Linear Chandelier

Luz Lámpara Lineal

Lumière Chandelier Linéaire

Part #/Pieza #/Pièce #

Hardware Service Kit/Kit De Mantenimiento Del Equipo/Trousse De

Maintenance Quincaillerie

ENGLISH

Twist or tape wire

ends together to make

it easier to thread

through downrod

Hunter Pro Tip:

NOTICE

In order to use a 12in rod by

itself you must rst remove

the post from the 6in rod and

install it on one of the ends of

the 12in rod.

NOTICE

Drill 9/64" pilot holes in

support structure to aid in

securing light xture.

Drill

Taladro

Foret

Finish/Finish/FiniModel/Modelo/Modèle

Screwdriver

Destornilladore

Tournevis

H

I

K

L

M

N

E

D

C

B

A

G

F

J

O

R

P

Q

S

T

U

V

19055

19056

Briargrove

KC06101864

KC06101119

Painted Modern Brass/Bronce

Moderno Pintado/Laiton

Moderne Peint

Matte Black/Negro Mate/

Noir Mat

19055

19056

ML066

r_010621

19 lbs(8.62 kg)

7

7

7

FINISHING THE INSTALLATION

CONNECTING THE WIRES

ASSEMBLING THE FIXTURE

PREPARING FOR INSTALLATION

CLEANING TIPS

Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light

and wipe down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.

Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old

xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from the

bag. Then remove decorative nuts (N) from mounting screws (A). Mounting plate (B) contains several pairs of threaded

holes. Find the pair of holes that matches the spacing in the holes on the xture’s canopy. Attach two mounting screws

(A) to the mounting plate (B). Tighten nuts (C) to hold the screws in place. Put the hollow rubber plug (H) inside the

hole in the ceiling, then insert the tapping screw (I) through the mounting plate (B) into the rubber plug (H). Place

the mounting plate (B) over the junction box so that mounting screws (A) and nuts (C) are visible. Pull the house wires

through the center of mounting plate (B). Secure mounting plate (B) to the junction box by tightening the screws (D).

Adjust the position of mounting screws (A) so that mounting screws (A) can be exposed 5-6 mm after passing through

the canopy (F). Once the ideal position of mounting screws (A) has been conrmed, tighten nuts (C) on mounting

screws (A) under the mounting plate to ensure that mounting screws (A) are in place.

There are 4 12-inch rods (P), and 1 6-inch rod (Q) included for each side of the xture. Determine the correct number

of rods needed for proper hanging height. To lengthen the xture, add additional rods. To shorten the xture, trim the

wires to desired length. Leave at least 8 to 10 inches of wire in addition to the desired length and slide any excess rods

off the xture’s wiring to discard. Keep in mind that you must use at least one rod to hang the xture. Thread the wires

through the rods and pull the wires until taut before connecting the rods together. Screw rods onto threaded post (R)

on the xture. Place reinforcing plate (M) inside canopy (G) and the canopy (G) over the threaded post (O) of the top

rod. Put one side of threaded post (O) though the wirerope noose (F) and washer (L). Lock the reinforcing plate and

canopy with the wingnut (K) and threaded post (O). Hide wirerope inside the canopy (G). Tighten the screw collar loop

(J) into mounting plate (B).

Have a helper support the xture’s weight while completing the

wiring. Attach the xture’s wires to the power supply wires from the

junction box. Connect black to black (Live); white to white (grounded);

grounding to grounding (green or copper). Twist the ends of the wire

pairs together. Then, twist on a wire connector. Make sure all twists are

in the same direction. Loop xture’s ground wire around grounding

screw (E) and tighten. If there is no ground wire (green or copper) from

the junction box, contact a qualied electrician.

Raise canopy (G) to mounting plate (B) and position mounting screws (A) so that they protrude through the openings

of canopy (G). Secure canopy (G) in place with decorative nuts (N). Secure rod (U) onto the threaded post (V). Slide

candle sleeves (S) onto sockets (T). Install light bulb (not included) in accordance with the xture’s specications. Do not

exceed the recommended wattage. Your installation is now complete. Turn on the power and test the xture.
