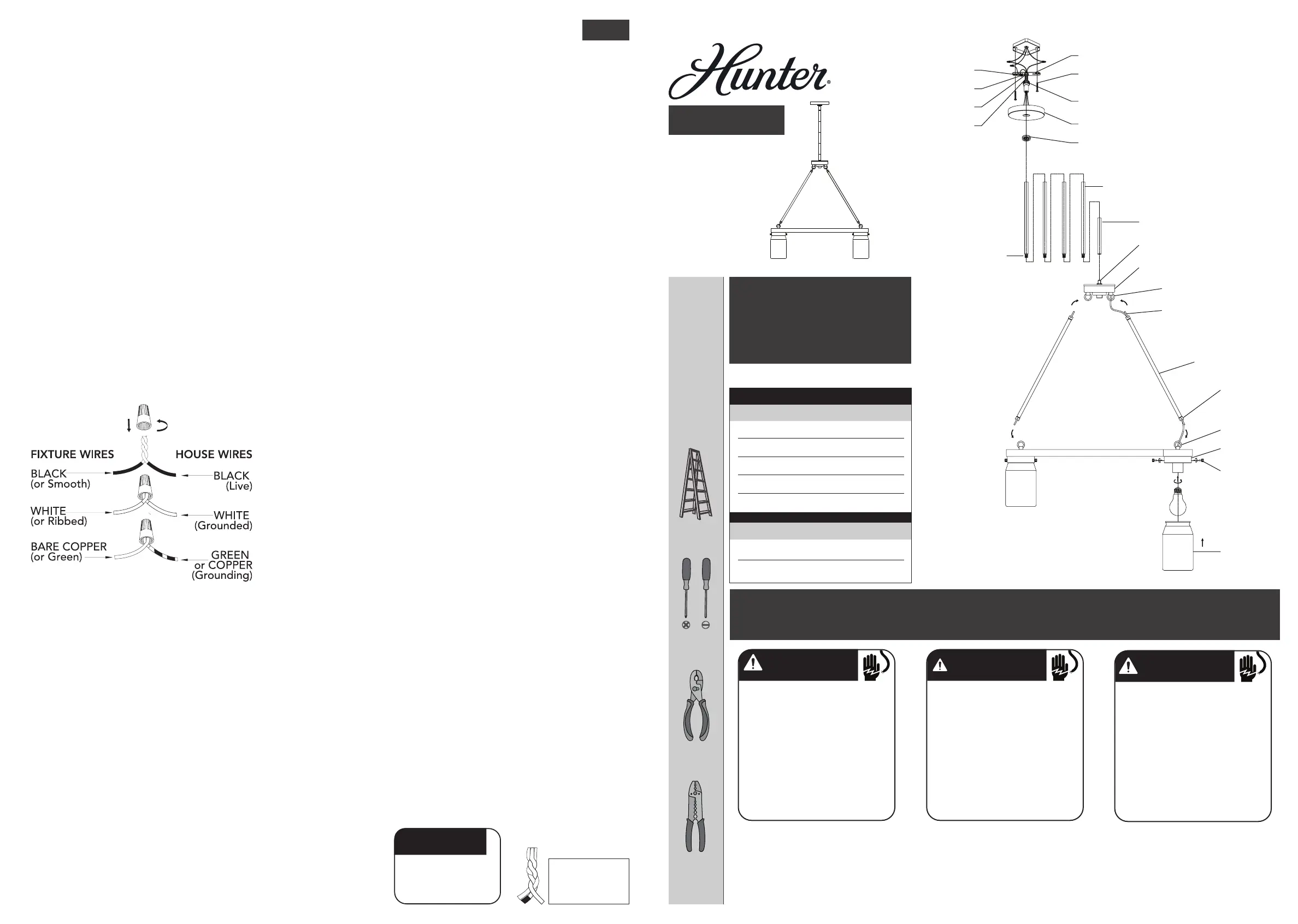

INSTALLATION INSTRUCTIONS

INSTRUCCIONES DE INSTALACIÓN/ INSTRUCTIONS D’INSTALLATION

For Models:

Para los Modelos:

Pour les Modèles:

Here are the

tools you’ll

need to

complete your

installation:

Estas son las

herramientas

que usted

necesitará para

completar su

instalación:

Voici les outils

dont vous

aurez besoin

pour réaliser

l’installation:

Ladder

Escalera

Échelle

Pliers

Alicates

Pince

Wire Strippers

Pelacables

Pince à dénuder

READ AND SAVE THESE INSTRUCTIONS

These instructions are provided for your safety. It

is very important that they are read carefully and

completely before beginning installation of the

lighting xture.

LEA Y GUARDE ESTAS INSTRUCCIONES

Estas instrucciones se proporcionan para su

seguridad. Es muy importante leerlas detenid-

amente y completamente antes de comenzar la

instalación de la lámpara.

LISEZ ET CONSERVEZ CES INSTRUCTIONS

Ces instructions sont fournies pour votre sécurité.

Il est très important de les lire attentivement dans

leur intégralité avant d’entreprendre l’installation

du luminaire.

Fixture weight ±2 lbs:

Peso ±2 lb:

Poids xe ±2 lbs:

•

WARNING

• All wiring must be in accordance with national

and local electrical codes ANSI/NFPA 70. If you

are unfamiliar with wiring or in doubt, consult a

qualied electrician.

• To avoid possible electrical shock, before

installing your light xture, disconnect the power

by turning off the circuit breakers to the outlet box

associated with the wall switch location.

• The lighting xture must be grounded. If the

ground wire for the installation site is not present,

immediately STOP installation and consult a

qualied electrician.

• Todo el cableado debe realizarse de acuerdo con

los códigos eléctricos locales y nacionales ANSI/

NFPA 70. Si no está familiarizado con el cableado,

o si tiene duda, consulte a un electricista calicado.

• Para evitar una posible descarga eléctrica, antes

de instalar su lámpara, desconecte la energía

apagando los interruptores automáticos (breakers)

que alimentan la caja de salida asociada con la

ubicación del interruptor de pared.

•

ADVERTENCIA

• L’appareil d’éclairage doit être mis à la terre.

Si le l de terre du lieu d’installation n’est pas

présent, ARRÊTEZ immédiatement l’installation et

consultez un électricien qualié.

•

AVERTISSEMENT

•

Tout le câblage doit être conforme aux codes

électriques nationaux et locaux en vigueur et à la

norme ANSI/NFPA70. Si vous n'avez pas l'habitude

de faire ce câblage ou en cas de doute, adressez-

vous à un électricien qualié.

• Pour éviter tout choc électrique, avant d’installer

le luminaire, coupez le courant en éteignant les

disjoncteurs de la boîte électrique associée à

l’interrupteur mural.

•

Le luminaire doit être mis à la terre. Si le l

de terre du lieu d’installation n’est pas présent,

ARRÊTER immédiatement l’installation et

consulter un électricien qualié.

Part #/Pieza #/Pièce #

Hardware Service Kit/Kit De Mantenimiento Del Equipo/Trousse De

Maintenance Quincaillerie

Finish/Finish/FiniModel/Modelo/Modèle

Glass/Domo De Vidrio/Verre

Type/Tipo/Type

©2020 Hunter Fan Co.

Part #/Pieza #/Pièce #Model/Modelo/ Modèle

ENGLISH

Twist or tape wire

ends together to make

it easier to thread

through downrod

Hunter Pro Tip:

NOTICE

In order to use a 12in rod by

itself you must rst remove

the post from the 6in rod and

install it on one of the ends of

the 12in rod.

Screwdriver

Destornilladore

Tournevis

Light Chandelier

Luz Lámpara Tipo Araña

Lumière Chandelier

D

E

F

A

B

G

H

C

J

L

K

M

I

O

P

Q

R

S

T

U

V

N

19210

19211

Devon Park

KC02902632

KC02901214

Onyx Bengal/Bengala Ónix/

Onyx du Bengale

Brushed Nickel/Níquel Pulido/

Nickel Brossé

19210

19211

KA28401147

Clear Glass/Vidrio Transparente/

Verre Transparent

19210

19211

ML038

r_120420

17 lbs(7.71 kg)

6

6

6

FINISHING THE INSTALLATION

CONNECTING THE WIRES

ASSEMBLING THE FIXTURE

PREPARING FOR INSTALLATION

CLEANING TIPS

Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light

and wipe down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.

Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old

xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from the

bag. One end of the threaded post (F) should be attached to the mounting bracket (A) with a washer (D) and a hex nut

(E) in place. The other end should have the canopy loop (H) attached. Attach the mounting bracket (A) to the junction

box by securely tightening the mounting screws (B). Unscrew the canopy loop ring (I) from the canopy loop (H). Place

canopy (G) over the canopy loop (H) so that it’s ush with the ceiling. Adjust the position of threaded post (F) on the

mounting bracket (A) so that the canopy (G) covers at least half of the exterior threads on the canopy loop (H) while it’s

securely connected to threaded post (F). Once the ideal position of the threaded post (F) is determined, tighten up the

washer (D) and the hex nut (E) onto the threaded post (F) just beneath the mounting bracket (A) to secure the threaded

post in place.

Lock the rod hooks (P) (R) into loops (O) (S). Keep the weight of the xture on column (N) when installing rods,

otherwise, the hooks (P) (R) and rods (Q) will disconnect from the loops. There are 4 12-inch rods (K), and 1 6-inch rod

(L) included for each xture. Determine the correct number of rods needed for proper hanging height. To lengthen

the xture, add additional rods. To shorten the xture, trim the wires to desired length. Leave at least 8 to 10 inches

of wire in addition to the desired length and slide any excess rods off the xture’s wiring to discard. Keep in mind that

you must use at least one rod to hang the xture. Thread the wires through the rods and pull the wires until taut before

connecting the rods together. Screw rod onto threaded post (M) on the xture. Screw the threaded post of the top rod to

the protruding canopy loop (H) of canopy (G). Pull the xture wires through the top of the canopy.

Have a helper support the xture’s weight while completing the

wiring. Attach the xture’s wires to the power supply wires from the

junction box. Connect black to black (Live); white to white (grounded);

grounding to grounding (green or copper). Twist the ends of the wire

pairs together. Then, twist on a wire connector. Make sure all twists are

in the same direction. Loop xture’s ground wire around grounding

screw (C) and tighten. If there is no ground wire (green or copper) from

the junction box, contact a qualied electrician.

Place the canopy (G) ush to the ceiling and slide the canopy loop ring (I) up beneath the canopy. Tightly screw canopy

loop ring (I) onto the canopy loop (H) to properly secure the canopy (G) in place. Install light bulb (not included) in

accordance with the xture’s specications. Do not exceed the recommended wattage. Secure glass (V) onto the socket

(T) with screws (U). Your installation is now complete. Turn on the power and test the xture.
