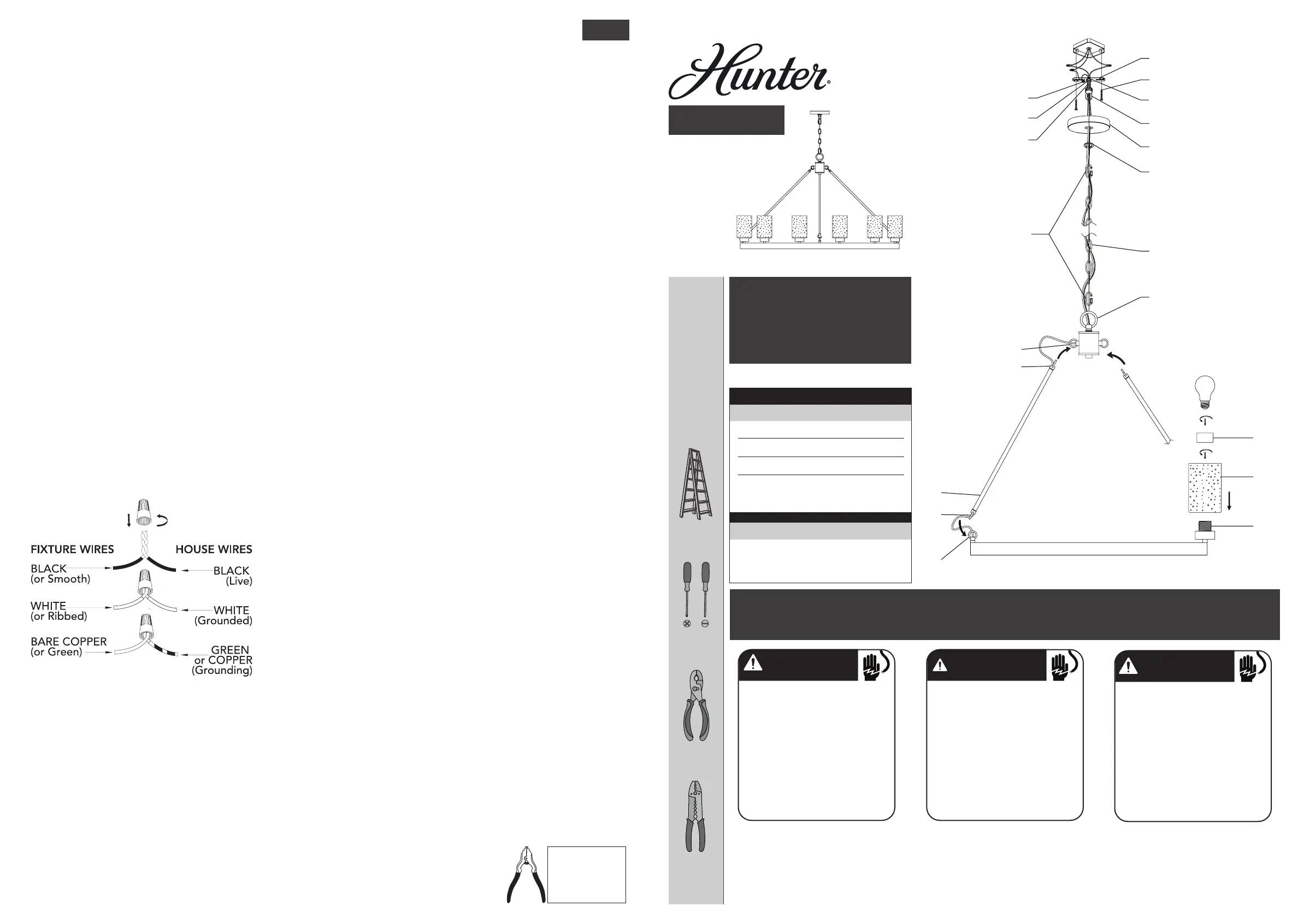

INSTALLATION INSTRUCTIONS

INSTRUCCIONES DE INSTALACIÓN/ INSTRUCTIONS D’INSTALLATION

For Models:

Para los Modelos:

Pour les Modèles:

Here are the

tools you’ll

need to

complete your

installation:

Estas son las

herramientas

que usted

necesitará para

completar su

instalación:

Voici les outils

dont vous

aurez besoin

pour réaliser

l’installation:

Ladder

Escalera

Échelle

Pliers

Alicates

Pince

Wire Strippers

Pelacables

Pince à dénuder

READ AND SAVE THESE INSTRUCTIONS

These instructions are provided for your safety. It

is very important that they are read carefully and

completely before beginning installation of the

lighting xture.

LEA Y GUARDE ESTAS INSTRUCCIONES

Estas instrucciones se proporcionan para su

seguridad. Es muy importante leerlas detenid-

amente y completamente antes de comenzar la

instalación de la lámpara.

LISEZ ET CONSERVEZ CES INSTRUCTIONS

Ces instructions sont fournies pour votre sécurité.

Il est très important de les lire attentivement dans

leur intégralité avant d’entreprendre l’installation

du luminaire.

Fixture weight ±2 lbs:

Peso ±2 lb:

Poids xe ±2 lbs:

•

WARNING

• All wiring must be in accordance with national

and local electrical codes ANSI/NFPA 70. If you

are unfamiliar with wiring or in doubt, consult a

qualied electrician.

• To avoid possible electrical shock, before

installing your light xture, disconnect the power

by turning off the circuit breakers to the outlet box

associated with the wall switch location.

• The lighting xture must be grounded. If the

ground wire for the installation site is not present,

immediately STOP installation and consult a

qualied electrician.

• Todo el cableado debe realizarse de acuerdo con

los códigos eléctricos locales y nacionales ANSI/

NFPA 70. Si no está familiarizado con el cableado,

o si tiene duda, consulte a un electricista calicado.

• Para evitar una posible descarga eléctrica, antes

de instalar su lámpara, desconecte la energía

apagando los interruptores automáticos (breakers)

que alimentan la caja de salida asociada con la

ubicación del interruptor de pared.

•

ADVERTENCIA

• L’appareil d’éclairage doit être mis à la terre.

Si le l de terre du lieu d’installation n’est pas

présent, ARRÊTEZ immédiatement l’installation et

consultez un électricien qualié.

•

AVERTISSEMENT

•

Tout le câblage doit être conforme aux codes

électriques nationaux et locaux en vigueur et à la

norme ANSI/NFPA70. Si vous n'avez pas l'habitude

de faire ce câblage ou en cas de doute, adressez-

vous à un électricien qualié.

• Pour éviter tout choc électrique, avant d’installer

le luminaire, coupez le courant en éteignant les

disjoncteurs de la boîte électrique associée à

l’interrupteur mural.

•

Le luminaire doit être mis à la terre. Si le l

de terre du lieu d’installation n’est pas présent,

ARRÊTER immédiatement l’installation et

consulter un électricien qualié.

Part #/Pieza #/Pièce #

Hardware Service Kit/Kit De Mantenimiento Del Equipo/Trousse De

Maintenance Quincaillerie

Finish/Finish/FiniModel/Modelo/Modèle

Glass/Domo De Vidrio/Verre

Type/Tipo/Type

©2022 Hunter Fan Co.

Part #/Pieza #/Pièce #Model/Modelo/ Modèle

ENGLISH

Light Chandelier

Luz Lámpara Tipo Araña

Lumière Chandelier

Screwdriver

Destornilladore

Tournevis

Let the tool do the

work! Use chain pliers

to easily open and

close chain links to

shorten your xture.

Hunter Pro Tip:

P

O

R

S

U

T

M

N

L

C

E

F

A

B

D

H

G

I

J

K

13059

13060

13061

Hartland

KG20802214

KG20802L11

Brushed Nickel/Níquel Pulido/

Nickel Brossé

Alturas Gold/Alturas Gold/

Or d’Alturas

KG20801834

Noble Bronze/Bronce Noble/

Bronze Noble

13059

13060

13061

KA28301046

Clear Seeded Glass/

Vidrio Transparente Con Burbuja/

Verre Piqueté Transparent

13059

13060

13061

ML412

r_080322

27.5 lbs(12.47 kg)

12

12

12

FINISHING THE INSTALLATION

CONNECTING THE WIRES

ASSEMBLING THE FIXTURE

PREPARING FOR INSTALLATION

CLEANING TIPS

Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular

cleaning, turn off the light and wipe down the xture with a clean lint-free cotton or

microber cloth. Never spray cleaner directly onto the xture.

Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old

xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from the

bag. One end of the threaded post (F) should be attached to the mounting bracket (A) with a washer (D) and a hex nut

(E) in place. The other end should have the canopy loop (G) attached. Unscrew the canopy loop ring (I) from the canopy

loop (G). Depending on the placement of your junction box the position of threaded post (F) may need to be adjusted

to allow the canopy to be ush with the ceiling. Determine this by lifting mounting bracket (A) up to the junction box

and place canopy (H) over the canopy loop (G), so that it is ush with the ceiling. Adjust the position of threaded post

(F) on the mounting bracket (A) so that the canopy (H) covers at least half of the exterior threads on the canopy loop

(G) while it is securely connected to threaded post (F). The threaded post (F) can be adjusted by loosening hex nut (E)

to allow movement of threaded post (F) on mounting bracket (A). Once the ideal position of the threaded post (F) is

determined, tighten up the hex nut (E) onto the threaded post (F) just beneath the mounting bracket (A) to secure the

threaded post in place.

Lift the wiring hub (V) and lock the rod hooks (N) (P) into loops (R) (M). Keep the weight of the xture on wiring hub

(V) when installing four rods, otherwise the hooks (N) (P) and rods (O) will disconnect from the loops. Thread the

wires through and attach the ring (L) on the wiring hub (V). By measuring, determine the correct number of chain

links needed for proper hanging height. If necessary, use a pair of pliers to open and remove any excess chain. Attach

one quick-connect link (J) to each end of chain (K). Use one quick-connect link (J) to attach chain (K) to ring (L) and

securely close. Feed the xture wires up through the chain (every three links or so), pulling the wires until taut. Use the

remaining quick-connect link (J) to attach chain (K) to canopy loop ring (G). Slide canopy loop ring (I) and canopy (H)

onto the chain/wire and thread wires through canopy loop (G). To shorten the xture, trim the wires to desired length.

Leave at least 8 to 10 inches of wire in addition to the desired length. Have a helper support the xture’s weight and

attach the mounting bracket (A) to the junction box by securely tightening the mounting screws (B).

Attach the xture’s wires to the power supply wires from the junction

box. Connect black to black (live); white to white (neutral); grounding

to grounding (green or copper). Twist the ends of the wire pairs

together. Then, twist on a wire connector. Make sure all twists are in

the same direction. Loop xture’s ground wire around grounding

screw (C) and tighten. If there is no ground wire (green or copper) from

the junction box, contact a qualied electrician.

Place the canopy (H) ush to the ceiling and slide the canopy loop ring (I) up beneath the canopy. Tightly screw canopy

loop ring (I) onto the canopy loop (G) to properly secure the canopy (H) in place. Slide glass (T) over socket (U) and

secure by tightening socket ring (S). Install light bulbs (not included) in accordance with the xture’s specications.

Do not exceed the recommended wattage. Turn on the power and test the xture. Your installation is now complete.
