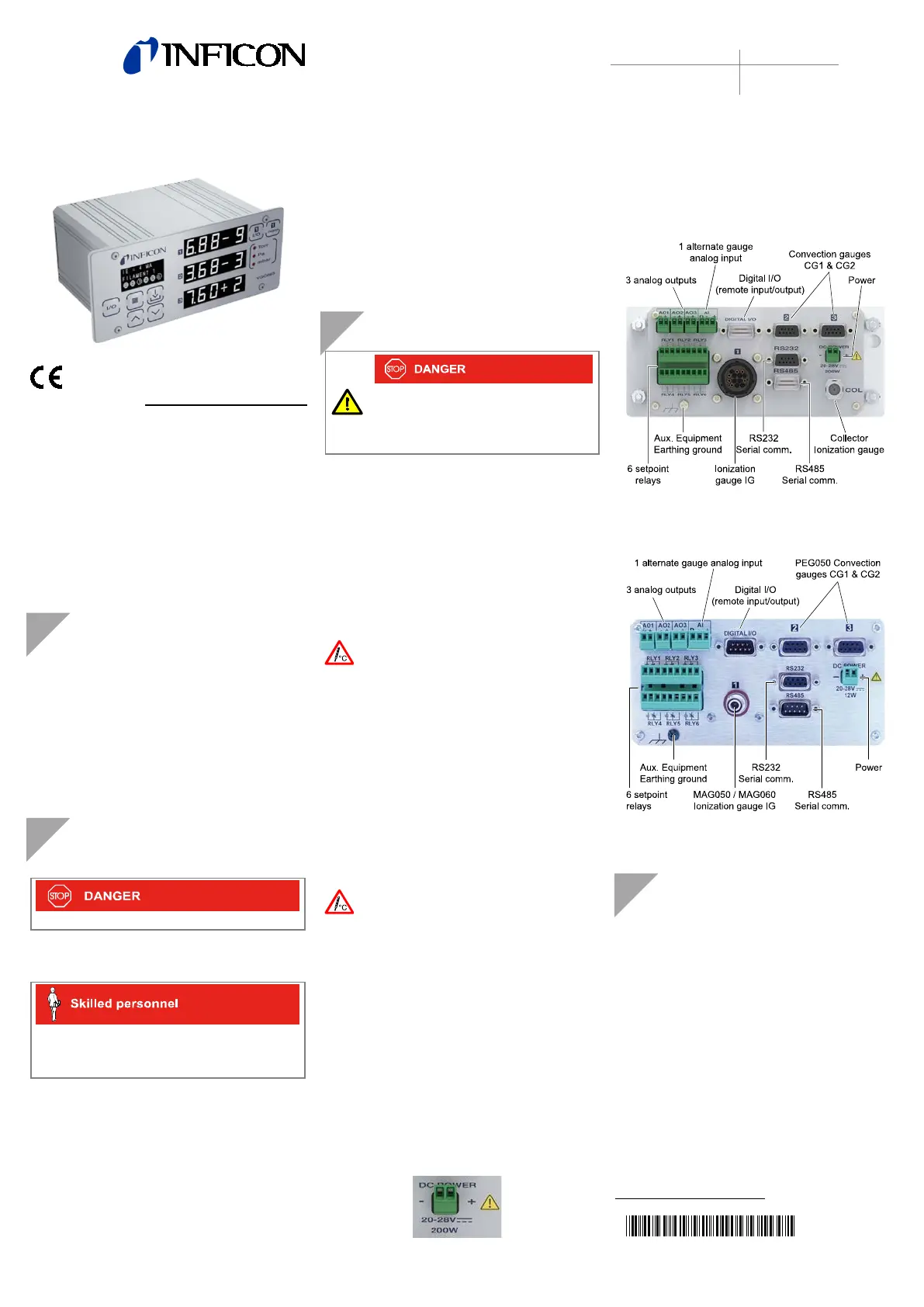

Vacuum Gauge Controller

VGC083A, VGC083B, VGC083C

Installation Manual

Incl. EU Declaration of Conformity

tiqa04e1-b (2018-07)

Validity

This document applies to products with the part numbers:

399-700

(VGC083A)

399-701

(VGC083B)

399-702 (VGC083C)

We reserve the right to make technical changes without prior

notice.

Further Information

Details about the intended use, scope of delivery, installation,

operation, etc. you will find in the following Operating

Manuals:

•VGC083A, VGC083B: tinb29e1

•VGC083C: tinb42e1

Theycan be downloaded from the USB memory stick or from

our website (www.inficon.com). The memory stick is included

in scope of delivery of the vacuum gauge controller.

Safety

Symbols Used

Information on preventing any kind of physical injury.

Personnel Qualifications

All work described in this document may only be carried

out by persons who have suitable technical training and the

necessary experience or who have been instructed by the

end-user of the product.

Liability and Warranty

INFICON assumes no liability and the warranty becomes null

and void if the end-user or third parties

•disregard the information in this document

•use the product in a non-conforming manner

•make any kind of interventions (modifications, alterations

etc.) on the product

•use the product with accessories not listed in the cor-

responding product documentation.

General Safety Instructions

Adhere to the applicable regulations and take the necessary

precautions for all work you are going to do and consider the

safety instructions in this document.

•Hazardous voltages are present with this product during

normal operation. The product should never be operated

with the covers removed unless equivalent protection of

the operator from accidental contact with hazardous inter-

nal voltages is provided.

•Do not modify this product or substitute any parts without

authorization of qualified INFICON service trained person-

nel.

•To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture.

Communicate the safety instructions to all other users.

Installation

Putting a product which is visibly damaged into

operation can be extremely hazardous. If the

product is visibly damaged do not put it into ope-

ration and make sure it is not inadvertently put

into operation.

The unit is intended for indoor use only.

Ensure the enclosure of the unit is connected directly to a

good quality earth ground.

Ensure that the vacuum port on which the vacuum gauge

sensorsaremounted is electrically grounded.

In order to protect personnel from electric shock and bodily

harm, shield all conductors which are subject to potential

high voltage electrical discharges in or around the vacuum

system.

Rack and Control Panel Installation

The admissible maximum ambient temperatures

must not be exceeded (→ respective Operating

Manual).

When mounting multiple units in your rack mount enclosure

or mounting the unitbelow other electronic equipment in your

rack, allow at least 1U of space (1.75 in., 45 mm) between

the units to ensure adequate ventilation.

The single cut-out and dual cut-out rack mountable panels

shown above are available from INFICON. Screws for mount-

ing to rack enclosure are included.

Required cut-out for a control panel installation →respective

Operating Manual.Use four # 10-32 Hex Nut (provided with

instrument) to tighten the unit to the panel.

Use as Desk-Top Unit

Select a location where the admissible maximum

ambient temperature (→ respective Operating

Manual) is not exceeded (e.g. due to sun irradia-

tion).

Mains Power Connection

The VGC083x requires following input power:

VGC083A

when used with BAG050,

BAG051, BAG052, BAG053

20 … 28 V (dc), 200 W

VGC083A

when used with BAG055

20 … 28 V (dc), 36 W

VGC083B

20 … 28 V (dc), 200 W

VGC083C

20 … 28 V (dc), 12 W

One each 2-contact pluggable terminal strip mating con-

nector is provided for connection to the power contactors.

e.g. VGC083A

Optional power supplies

1)

are also available from INFICON:

Ordering number

VGC083A

399-710

VGC083B, VGC083C 399-711

1)

The conventional IEC60320 AC receptacle allows use with

any user supplied AC mains power cord set available

worldwide.

Connectionof GaugeCables, Relay,

Analog Output, …

VGC083A, VGC083B (→ respective Operating Manual)

VGC083C (→ respective Operating Manual)

Operation

Applying Power

Before you turn on power to the VGC083x for the first time,

ensure the cables from the VGC083x to the gauges are con-

nected and secured. Turn on power by pressing the Power

key.

Setup, Programming, Operation Gauges,

Parameters, …

→ respective Operating Manual

Original: Emglish

tiqa04e1-b
