Seite 1/14
www.ingenico.com
13-17 rue Pagès, 92150 Suresnes – France
Banks and Acquirers International Holding SAS / 814 767 216 RCS Nanterre

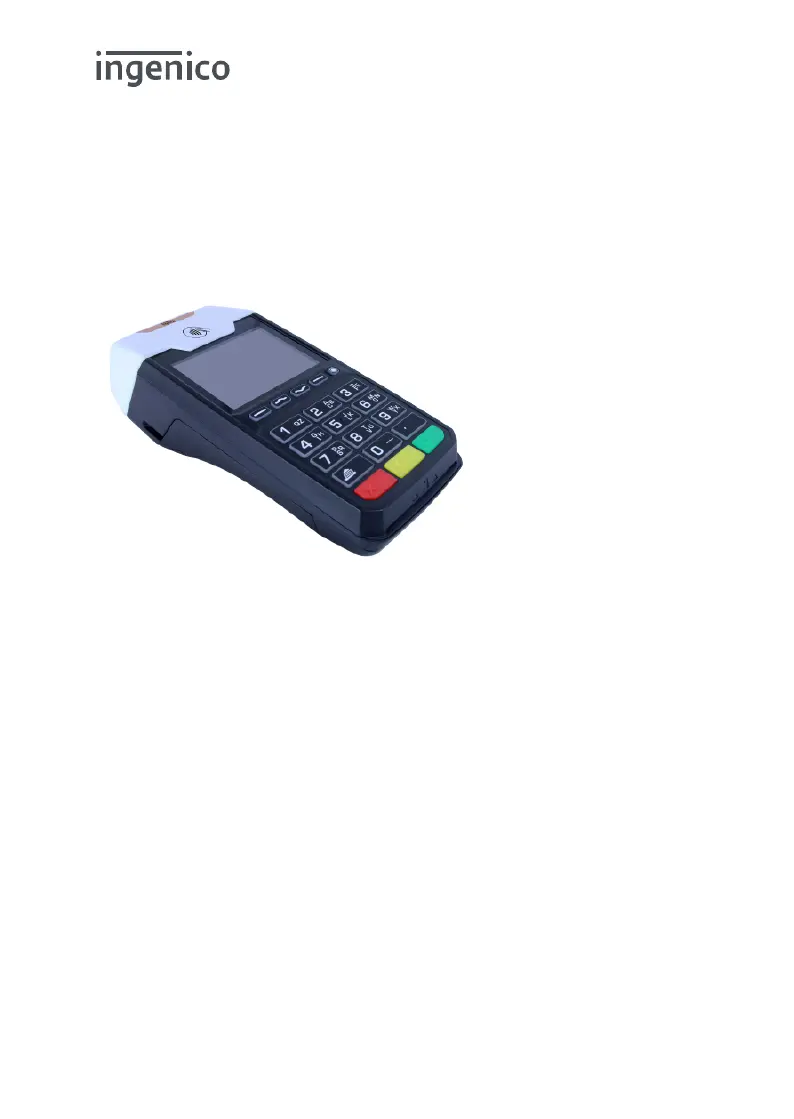

Desk 2600
User Guide
2
Desk/2600 User guide
900049361 R11 000 06 04/24
Banks and Acquirers
International Holding SAS
All rights reserved
Contents
1. Introduction
2. Presentation
2.1 Content of the box
2.2 Overview of the Desk/2600
2.3 Keyboard details and functionality
3. Installation
3.1 Recommendations
3.2 Before powering the device
3.3 Product connections
3.3.1 Terminal USB
3.3.2 Magic Box Ethernet
3.3.3 USB Slave connector
3.3.4 USB Host connector
3.3.5 Power and terminal connection
3.3.6 Clamp for magic box
3.4 Opening trap door
3.5 SAMs & SIMs
3.6 Magic Box cable
4
5
9
10
10
11
11
12
12
5
6
9
12
13
14
8
15
10
4
Desk/2600 User guide
900049361 R11 000 06 04/24
Banks and Acquirers
International Holding SAS
All rights reserved
1. Introduction
We hope that you will be fully satisfied with your new terminal Desk/2600.
This terminal is available in different models. Please select by yourself in
this documentation items related to your model.
Read this guide to understand and make the best use of your terminal.
It presents you the necessary information about use, installation,
maintenance, safety and security recommendations.
WARRANTY / SECURITY
SECURITY Use only the power supply included with
the product to ensure best performance and safety.
Maintenance should only be provided by Ingenico
authorized technician. Failure to comply with these
instructions will void the manufacturer’s responsibility.
This symbol indicates an important Warning.
This symbol indicates a piece of advice.
Double insulation symbol
DC current output
AC current input
DC Power jack polarity
In door use only
International Efficiency Marking
Protocol (Energy Star Level 5)
