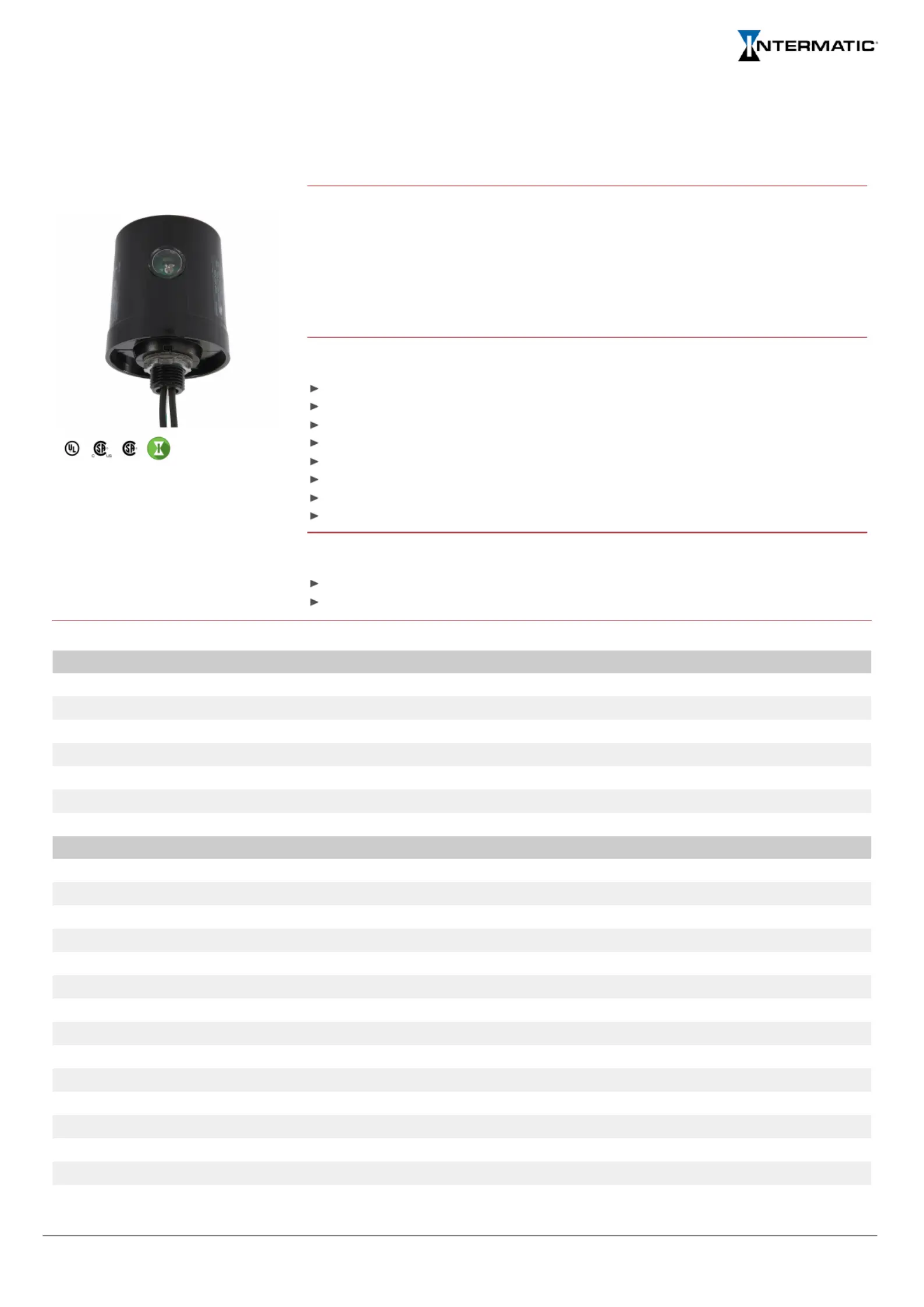

Surge Protection Device - AG2401C3
Surge Protection Device - Surge Protective Device, 3-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor
Item AG2401C3
PRODUCT DESCRIPTION
The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV®
(Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that
are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications
include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after
service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling
devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition.
AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.
FEATURES
Six modes of protection
TPMOV® surge protection technology
Green LED protection indicator
Type 4X watertight, plastic enclosure for outdoor installations
UV-resistant polycarbonate housing
1/2" threaded nipple for 7/8" nominal conduit knockout
1-year product warranty
CSA certified to ANSI/UL 1449 5th edition
APPLICATIONS
Distribution Panel
Service Entrance
TECHNICAL DATA
General
Model Number AG2401C3
Description Surge Protective Device, 3-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor
UPC Code 078275124431
Brand Intermatic
Country of Origin (Intermatic) MEXICO
Warranty Period 1-Year limited
Electrical Specications
Modes of Protection 3 (L1-N, L2-N, L1-L2)
Short Circuit Current Rating 50 kA
Nominal Discharge Current 20 kA
Maximum Surge Current Rating Per Phase 50 kA
Surge Protection Technology TPMOV®
Maximum Continuous Operating Voltage (L-G) 150
Maximum Continuous Operating Voltage (L-L) 300
Maximum Continuous Operating Voltage (L-N) 150
Maximum Continuous Operating Voltage (L1-L2) 300
Voltage Protection Rating (L-G) 700
Voltage Protection Rating (L-L) 1200
Voltage Protection Rating (L-N) 700
Phase Single
Voltage 120/240 VAC Single-Phase
1/
3
Technical specifications and other information are subject to change without notice. Images can vary from original.
© 02/21/2025
Surge Protection Device - AG2401C3
Control Specications
Surge Protection Type 1; 2
Surge Protection LED Indicator Green
Mechanical Specications
Number of Wire Leads 3
Enclosure Type Indoor/outdoor type 4X
Dimensions
Product Diameter (in) 3
Product Diameter (mm) 76.2
Wire Lead Length (in) 18
Wire Size Max #12 AWG
Material Specications
Color Black
Packaging
Shipping Weight (lbs) 0.998
Unit Carton Dimensions (H x W x L) in 7.001 x 3.751 x 4.001 in
Environmental Specications
Temperature (operation) -31 °F to 185 °F / (-35 °C to 85 °C)
Standards and Certications
UL Certification UL; cULus
CSA Certification CSA; cCSAus; cCSAus SPD Type 1; cCSAus SPD Type 2
Other Certifications and Compatibilities Green Energy
UL Standard ANSI/UL 1449 5th Edition
California Proposition 65 DEHP
RoHS Certification X
2/
3
Technical specifications and other information are subject to change without notice. Images can vary from original.
© 02/21/2025
Surge Protection Device - AG2401C3

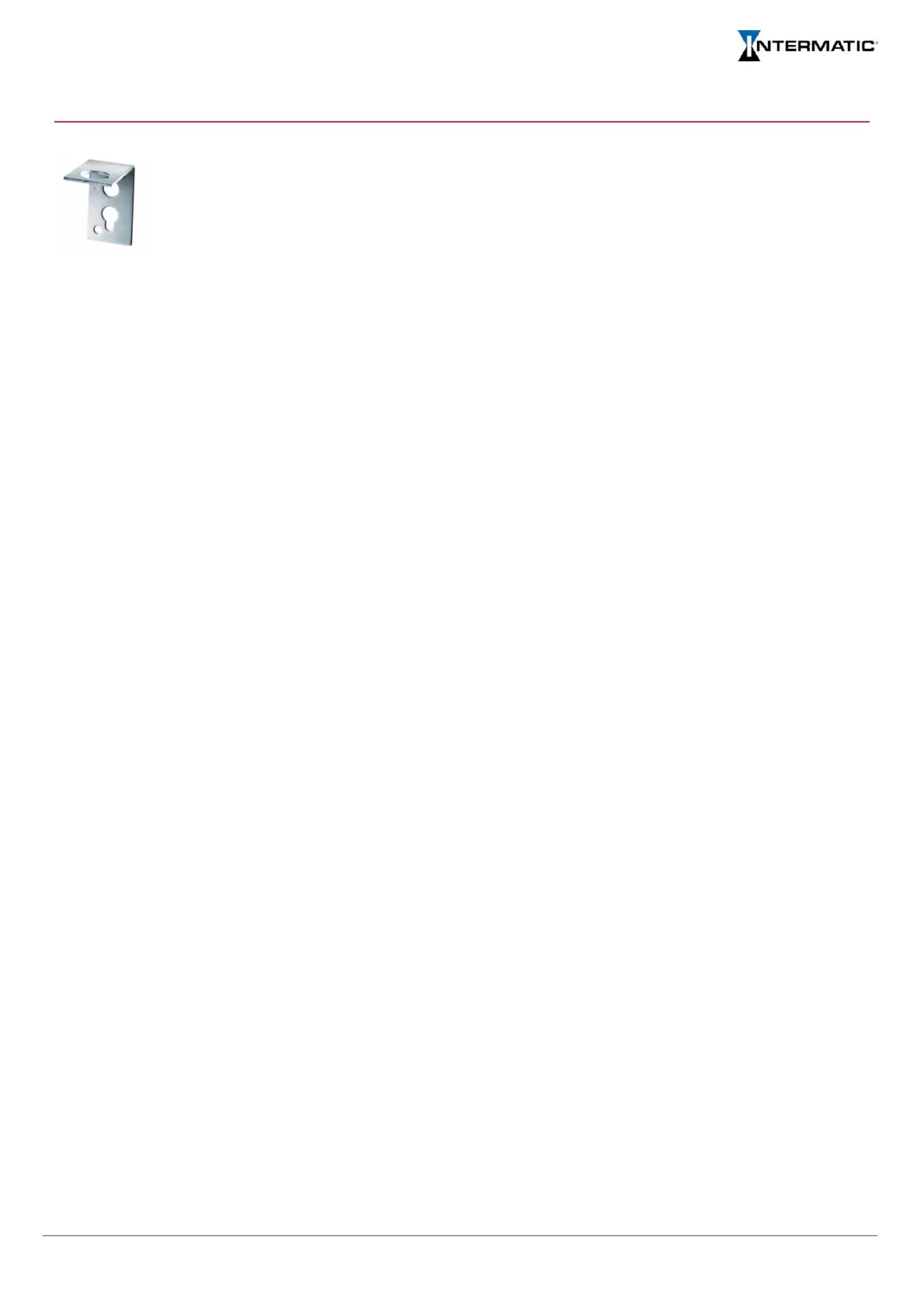

ACCESSORIES
AG1BRKT
Mounting Bracket for AG2401C3, AG48013, AG2083C3, AG4803C3, AG6503C3, AG6503L3, AG2403C3
3/
3
Technical specifications and other information are subject to change without notice. Images can vary from original.
© 02/21/2025
