MODEL:T1905

PROGRAM TIME SWITCH

FOR UP TO 48 TIMING OPERATIONS

0N 24 HOUR SCHEDULE

SINGLE POLE DOUBLE THROW

SWITCH RATING: 20 AMP. 125-480 VOLTS A.C. 1/2 HP-125V 1 HP-250V.

WIRING INSTRUCTIONS

This Time Switch can be wired to control two circuits as Single Pole

Double throw, or to control one circuit as Single Pole Single Throw.

Either normally open (NO) or normally closed (NC). To wire switch see

wiring diagram above.

TO PROGRAM TIME SWITCH,Depress tripper(s) into dial at

desired time(s) operation(s) is/are required.

• ON TIME: First tripper turns on the load for 16-20 minutes. Each

additional tripper will lengthen the on time by 15 minutes.

•OFF TIME: First tripper in raised position turns off the load for

10-14 minutes.Each additional space will lengthen the of time by

15 minutes.

SET TIME-OF-DAY: Turn dial in clockwise direction only and align

the exact time-of-day (the time now when switch is being put into

operation) to the “TIME” arrow on insulator.

TIME

DIAL

INSULATOR

MANUAL

LEVER

CAP

NUTS

CLOCK

MOTOR

SUPPLY

NORMALLY CLOSED CIRCUIT

NORMALLY OPEN CIRCUIT

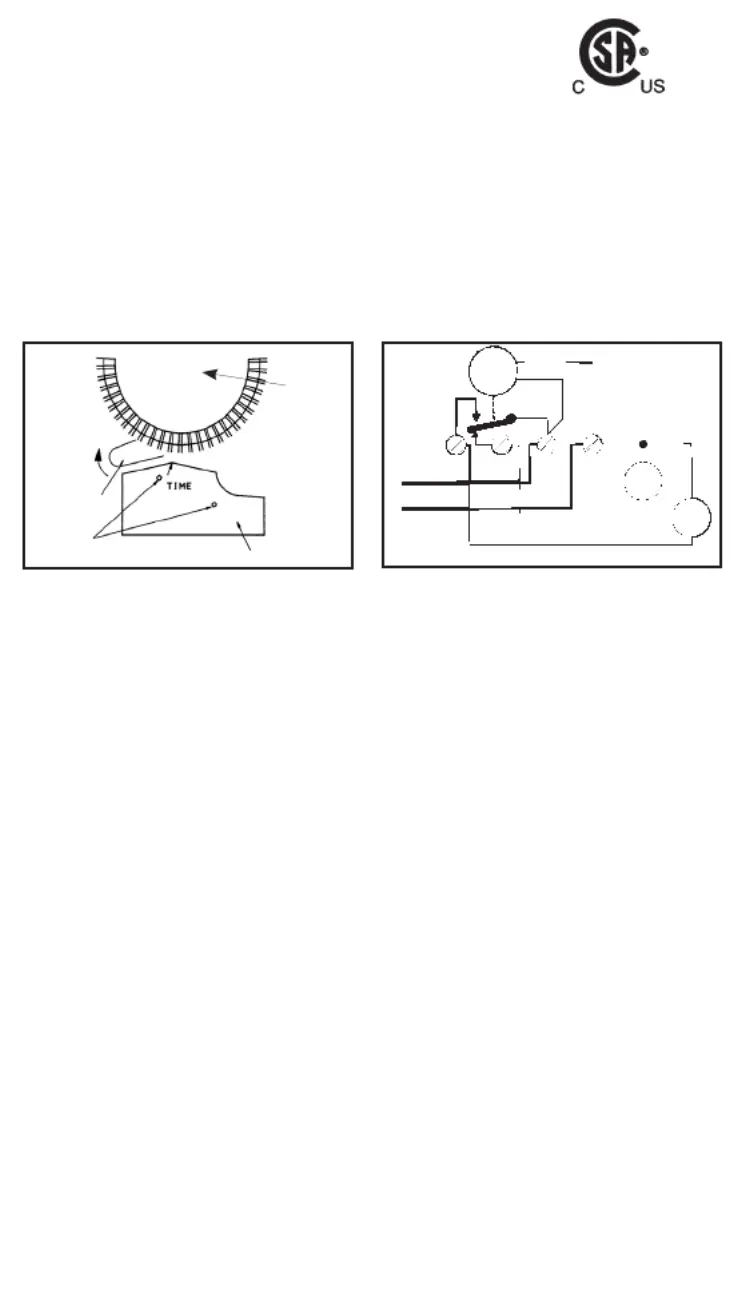

FIG. 1 WIRING DIAGRAM

CLOCK

COM.

N.C.

N.O.

N.C.

LOAD

NO.

LOAD

1.

2.

OPERATING INSTRUCTIONS

TO CONTROL LOADS MANUALLY,Move manual lever (See Figure 1)

up. This lever will close normally open circuit and open the normally

closed circuit. To return, to automatic control, move lever back to its

original position .

IN CASE OF POWER FAILURE, reset dial. See step (2) of programming

instructions.

INTERMATIC INCORPORATED

LIBERTYVILLE, ILLINOIS 60048

154--03517

CLOCK MOTOR: 125 VOLTS - 60 HZ.

LR3730
