MODEL:T2005

CALENDER DIAL TIME SWITCH

FOR UP TO 42 TIMING OPERATIONS

0N 7DAY SCHEDULE-

SINGLE POLE DOUBLE THROW

SWITCH RATING: 20 AMP. 125-480 VOLTS A.C.

1/2 HP-125V 1 HP-250V.

CLOCK MOTOR: 125 VOLTS - 60 HZ.

MINIMUM ON OR OFF TIME IS 2 HOURS,

EXTENDABLE IN 2 HOUR INCREMENTS.

WIRING INSTRUCTIONS

This Time Switch can be wired to control two circuits as Single Pole

Double throw, or to control one circuit as Single Pole Single Throw.

Either normally open (NO) or normally closed (NC).

TO PROGRAM TIME SWITCH,Depress tripper(s) into dial at

desired time(s) operation(s) is/are required.

• ON TIME: First tripper turns on the load for 135-145 minutes.

Each additional tripper will lenghten the on time by 2 hours.

•OFF TIME: First tripper in raised position turns off the load for

95-

105 minutes. Each additional space will lengthen the off time by

2 hours.

SET TIME-OF-DAY: Turn dial in direction only and CLOCKWISE

align the exact day-of-week and time-of-day on dial (the time when

switch is being put in operation) to the “TIME” indicator.

TIME

DIAL

INSULATOR

MANUAL

LEVER

CAP

NUTS

CLOCK

MOTOR

SUPPLY

NORMALLY CLOSED CIRCUIT

NORMALLY OPEN CIRCUIT

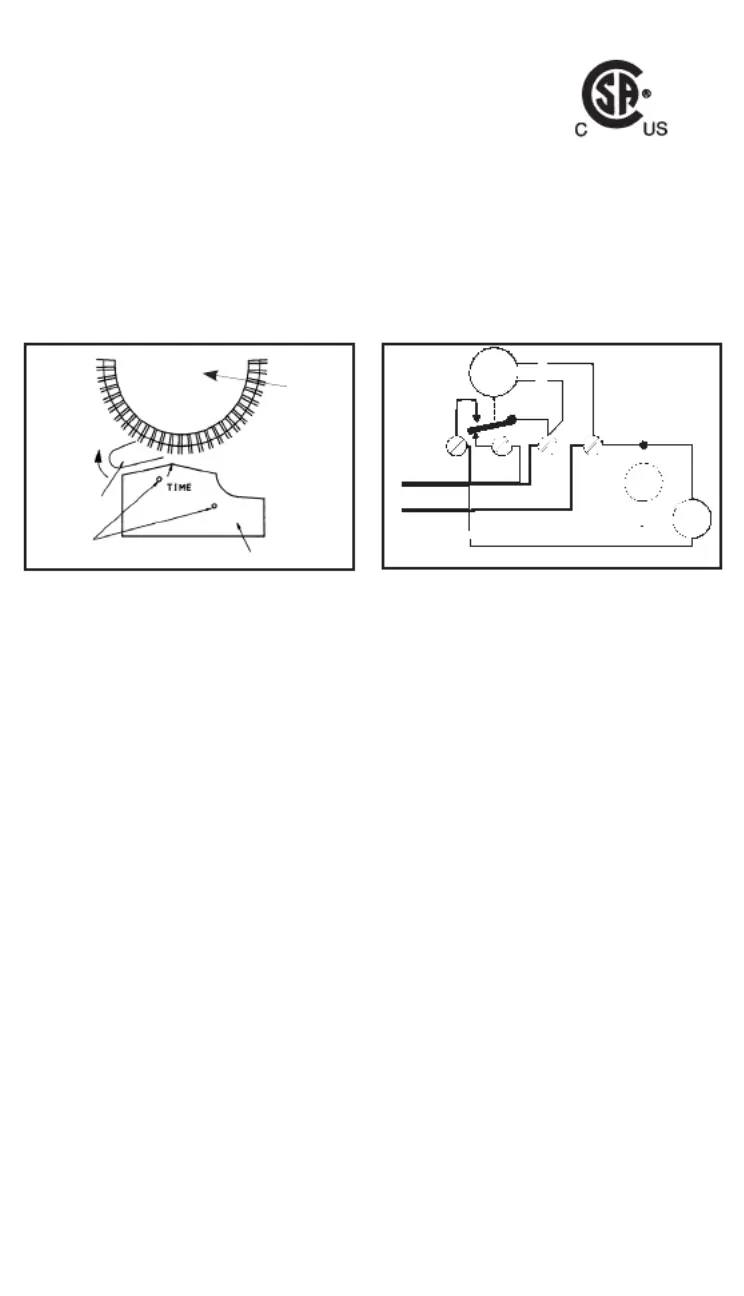

FIG. 1 WIRING DIAGRAM

CLOCK

COM.N.C.N.O.

N.C.

LOAD

NO.

LOAD

1.

2.

OPERATING INSTRUCTIONS

TO CONTROL LOADS MANUALLY, Move manual lever (See Figure 1)

up. This lever will close normally open circuit and open the normally

closed circuit. To return, to automatic control, move lever back to its

original position .

TO REMOVE MECHANISM FROM CASE,disconnect electricity and

all wiring. Depress retainer spring at upper left, or unscrew mounting

screws, then grasp dial and pull mechanism out.

IN CASE OF POWER FAILURE, or retard/advance timereset dial. See

step (2) of programming instructions.

INTERMATIC INCORPORATED

LIBERTYVILLE, ILLINOIS 60048

154--03519

LR3730
