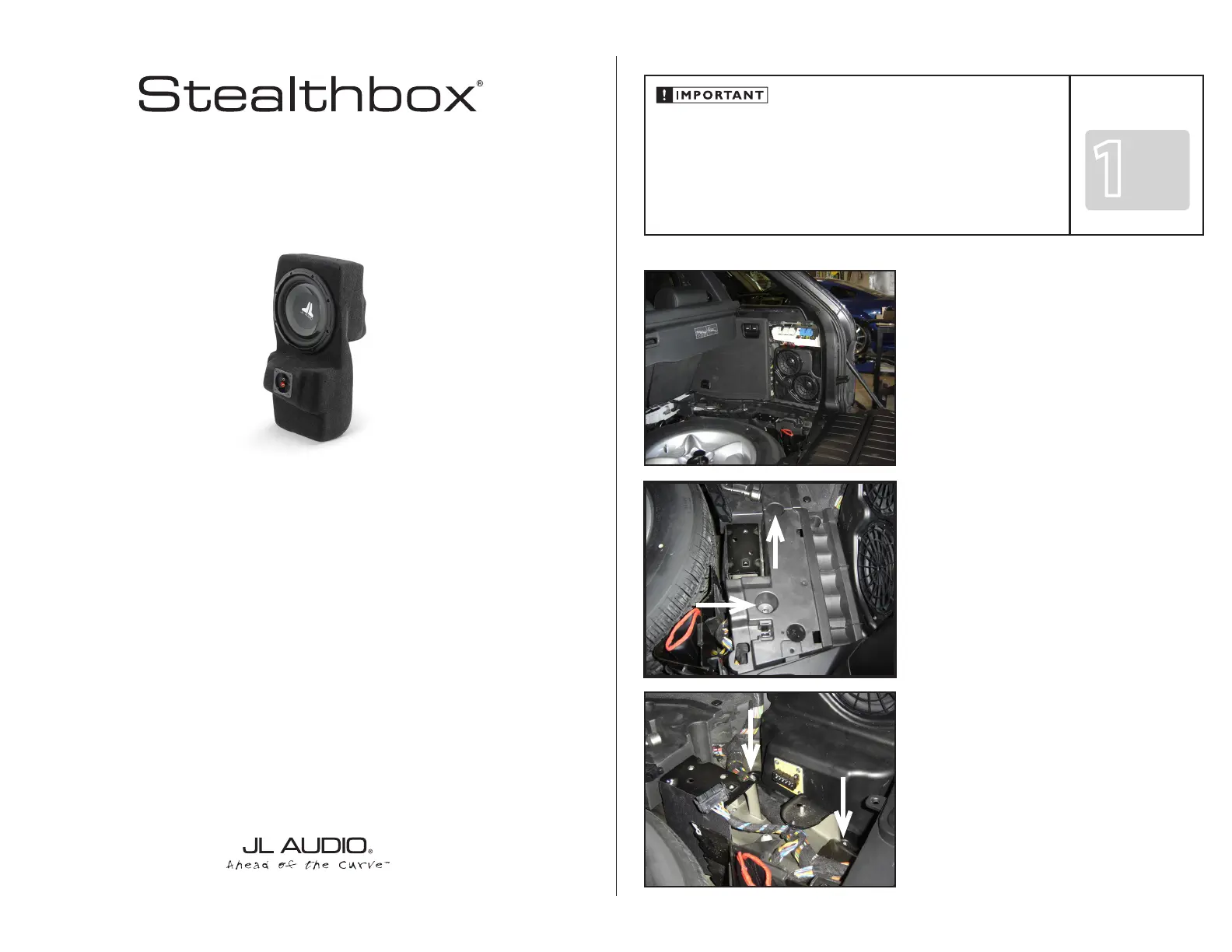

INSTALLATI ON
D I F F I C U L T Y :
I N S T A L L A T I O N G U I D E
for the
SB-B-X5/10W1v3
SKU# 94280
2000 - 2006 BMW X5
Thank you for choosing a JL Audio Stealthbox ® for your automotive sound system. With proper installation, your new
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 1 year if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Remove the flooring and the passenger side storage/woofer
cover from the vehicle.
Continued on Next Page
S T E P 2
With a 10mm socket, remove the pair of nuts that are
pictured.
Remove this plastic flooring panel.
S T E P 3
If equipped with the factory woofer system.
Disconnect the factory woofer system.
With a 10mm socket, remove the pair of nuts that secure the
factory woofer enclosure’s footing to the floor.
SB-B-X5/10W1v3_INSTR_SKU#011221
15
OUT
OF
Continued on Next Page
SB-B-X5/10W1v3_INSTR_SKU#011221
S T E P 7 ( O P T I O N A L )
If equipped with the factory woofer system.
You can use the factory footing instead of the supplied foot-
ing for the next step.
With a 5mm Allen key, remove the pair of bolts that secure
the plastic footing to the factory woofer enclosure.
S T E P 6
If equipped with the factory woofer system.
Grab the top of the factory woofer enclosure and pull out.
Guide the factory fuse/relay box, up and over the factory
woofer enclosure.
S T E P 5
If equipped with the factory woofer system.
With a 6mm Allen key, remove the bolt that secures the top
of the factory woofer enclosure.
S T E P 4
With a 7mm socket, remove the five bolts that secure the
factory fuse/relay box.
Page 2 • JL Audio, Inc 2016
S T E P 9
Place the bottom of the Stealthbox ® into the mounting area.
Guide the factory fuse/relay box up and over the top of the
Stealthbox®.
Secure the plastic mounting flange to the floor area using
the two factory 10mm nuts that were removed in STEP 3.
S T E P 1 1
Place a supplied lock washer and then flat washer onto the last
supplied 8mm x 30mm bolt. Secure the L-bracket to the top of
the Stealthbox®
S T E P 1 0
If equipped with the factory woofer system.
Secure the supplied L-bracket to the vehicle using the factory
bolt that was removed in STEP 5.
If not equipped with the factory woofer system, but
does have the threaded insert . Place a supplied flat
washers onto the supplied 8mm x 30mm bolt. Secure the
L-bracket to the vehicle with this bolt assembly.
If no threaded insert is found. Place a supplied flat
washer onto the supplied 8mmx30mm bolt. Place this bolt
through the L-bracket and hole. Place a supplied flat washer
and then lock washer and 8mm nut onto the bolt and
secure.
S T E P 8
If equipped with the factory woofer system.
Using the factory hardware, secure the factory footing to the
Stealthbox.
If not equipped with the factory woofer system.
Using a 5mm Allen key, secure the supplied plastic footing
to the Stealthbox® with the pair of supplied black flat socket
screws.
Attach desired length of speaker cable to the Stealthbox ®,
and double check the woofer for proper operation.
SB-B-X5/10W1v3_INSTR_SKU#011221
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 4
With a knife, carefully slice off the five tabs that secure the
fabric panel to the backside of the storage/woofer cover.
After the fabric panel has been removed. Grind off the two
long ribs (A) and two short ribs (B).
S T E P 1 3
If you are using the factory plastic footing, use the factory
mounting nuts to secure the plastic footing to the floor.
If you are using the supplied plastic footing, use the supplied
pair of speed nuts to secure the plastic footing to the floor.
Replace the plastic panel that was removed and use the
10mm nuts that were removed in STEP 2.
S T E P 1 2
Using the factory bolts, secure the factory fuse/relay box to
the vehicle.
Page 3 • JL Audio, Inc 2016
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU#011221- 09.19.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
(2) 8mm Split Lock Washer (1) Plastic Foot Mount
(3) 8mm Flat Washer (2) Speed Nuts
(1) 8mm Hex Nut (2) 8mm x 30mm Hex Cap Screw
(1) L-Bracket (2) 8mm -20 Black Flat Socket Caps
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W1v3-2
Nominal Impedance: 2 ohms
Continuous Power Handling: 300 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2.
The diagram below shows the recommended crossover settings for the XD300/1v2 when being used to power
your Stealthbox®.
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6.5-inch / Front Doors
Fits JL Audio Models: TR-650-CSi, TR-650-CXi, C2-650, C2-650X, C3-650, C5-650, C5-650X, & ZR650-CSi
Rear Speaker Size / Location: 6.5-inch / Rear Doors
Fits JL Audio Models: TR650-CXi, C2-650, C2-650x, C3-650, C5-650, & C5-650x
BB
AA
