INSTALLATION
D I F F I C U L T Y :
I N S T A L L A T I O N G U I D E
for the
SB-GM-C6CONV/8W3v3
SKU# 94330
2005 - 2013 Chevrolet C6 Corvette Convertible
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 1 year if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.

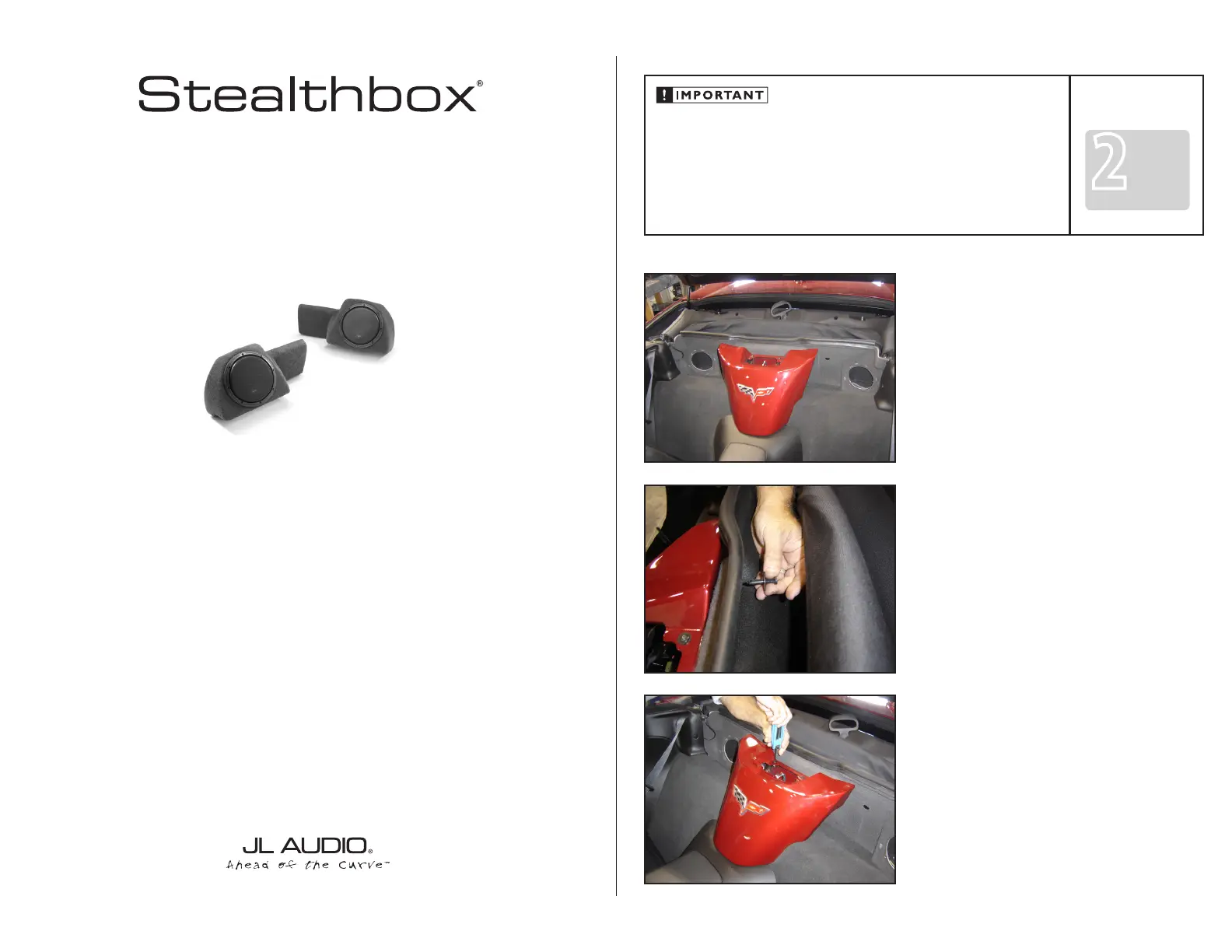

S T E P 1
Place the convertible top in the down position, keeping the
protective lid open.
Position the seats all the way forward.
Remove the pair of rear speakers.
Continued on Next Page
S T E P 2
Pull out the pair of plastic push-in retainers. These hold the
painted interior trim piece to the rear bulkhead.
S T E P 3
Remove the pair of Allen head screws from the top side of
the painted interior trim piece.
Remove the painted interior trim piece out of the vehicle.
SB-GM-C6CONV/8W3v3 INSTR_SKU#011225
25
OUT
OF
Continued on Next Page
SB-GM-C6CONV/8W3v3 INSTR_SKU#011225
S T E P 7
Position each Stealthbox® into their mounting location, with
the leg to the middle of the vehicle.
Firmly press each Stealthbox ® into the rear bulkhead.
Remove each Stealthbox® carefully, leaving the wax squares
in place. The head of the bolt will leave an impression on
each wax square.
Remove the 3/8” hex bolt from each Stealthbox ®.
S T E P 6
Fully thread in each supplied 3/8” hex head bolt into each
Stealthbox®.
S T E P 5
Place a supplied wax squares onto the driver’s side of the rear
bulkhead.
The middle of the wax square should measure 3-1/2 inches
from the top of the rear bulkhead and 3 inches from the right
of the stand out, as seen in the picture at left.
S T E P 4
Place a supplied wax square onto the passenger’s side of the
rear bulkhead.
The middle of the wax square should measure 3-1/2 inches
from the top of the rear bulkhead and 3 inches from the left
of the stand out, as seen in the picture at left.
Page 2 • JL Audio, Inc 2016
S T E P 9
With a drill and a 1/2-inch drill bit, drill through the
impression made in the wax square and into the vehicle’s
wheel well. Remove the wax squares and cut the carpet
from the area around the drilled hole, as seen in the
picture at left.
S T E P 1 1
Place a supplied 3/8” lock washer, supplied 3/8” flat washer
and supplied 3/8” fender washer onto each supplied 3/8” hex
head bolt.
Place each bolt assembly through the drilled hole from
STEP 8 & 9. This is from the back side of the rear bulkhead, into
the threaded insert of each Stealthbox ®, as seen in the picture
at left.
Using an 9/16-inch open end wrench or socket, secure the
bolt assembly. Do not over thighten the bolt assembly.
S T E P 1 0
Cut enough speaker wire to allow the run from the each
Stealthbox® location to the amplifier location.
Attach the speaker wire to the wire terminal on each
Stealthbox®. Check the woofer for proper operation.
Place each Stealthbox® into their mounting position. Bring
the speaker wire through the factory speaker mounting
holes.
S T E P 8
Note: Before drilling, make sure that you are not going
to be drilling into any gas lines, brake lines, transmission
lines, electrical wiring, or anything else that might
cause a reduction in your weekly pay. Always wear eye
protection when drilling!
With a drill and a 1/2-inch drill bit, drill through the
impression made in the wax square and into the vehicle’s
rear bulkhead. Remove the wax squares and cut the carpet
from the area around the drilled hole, as seen in the
picture at left.
3 inches
3 1/2 inches
3 inches
3 1/2 inches
SB-GM-C6CONV/8W3v3 INSTR_SKU#011225
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 4
From the back side of the rear bulkhead, place the last pair of
bolt assemblies through the factory holes.
Place a supplied 5/16” flat washer onto each hex head bolt,
between the painted interior trim piece and in front of the
rear bulk head.
Hand tighten these bolt assemblies to the coupling nut that
is attached to the painted interior trim piece.
S T E P 1 3
Place the painted interior trim piece back into the vehicle.
Mount the painted interior trim piece with the Allen screws
that were removed in STEP 3.
S T E P 1 2
Place a supplied 5/16”lock washer and then a supplied 5/16”
flat washer onto each 5/16” hex head bolt.
From inside the trim piece, place two of these bolt assemblies
through the holes that are on the back side of the trim piece.
Place a supplied 5/16” flat washer onto each exposed 5/16”
hex head bolt. Hand tighten each supplied coupling nut onto
each 5/16” hex head bolt. Look to STEP 14 for a cross section
illustration.
Page 3 • JL Audio, Inc 2016
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011225 - 09.20.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
(2) 3/8 -16 x 1“ Hex Head Bolts 3/8” x 1-1/4” Fender Washers (2)
(4) 5/16” Split Lock Washers 3” x 3” Wax Squares (2)
(2) (2) 3/8” Split Lock Washers 5/16 - 18 x 7/8” x 9/16” Coupling Nuts
(4) (4) 3/8” x 2” Fender Washers 5/16 - 18 x 1/2” Hex Head Bolts
(8) 5/16” Flat Washers
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 8W3v3-4
Nominal Impedance: 2 ohm mono or 4 ohm stereo
Continuous Power Handling: 500 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2.
The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the XD300/1v2
when being used to power your Stealthbox ®.
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 10-inches / Front Doors
*Fits JL Audio Models: TR650CSi, TR650-CXi, C2-650, C2-650x,
C3-650, C5-650, C5-650x, & ZR650-CSi
*Speakers require custom adaptors for installation.
Rear Speaker Size / Location: 5.25-inches / Behind Seats
*Fits JL Audio Models: TR525-CXi, C2-525x, C3-525, & C5-525x
*Installation of Stealthbox® prevents installation of rear speakers
