Jalousie Management JM Motor Control Insert Direkt

Ref.-no.: 220 ME

Operating Instructions

JM Motor Control Insert „Direkt“

1. Safety instructions

Attention: Electrical equipment must be installed and fitted by

qualified electricians only.

Only for connection of a motor with limit switches and a power

consumption of max. 1000 W. Non-observance of the fitting

instructions may damage the device and cause fire or other

hazards.

The blind/shutter control is designed for the automatic operation of

window blinds and shutters. Any other use as, for instance, the

operation of roller-shutter gates may involve hazards. These risks

must be excluded by the user by providing supplementary and

suitable safety devices (e.g. light barriers).

2. Function

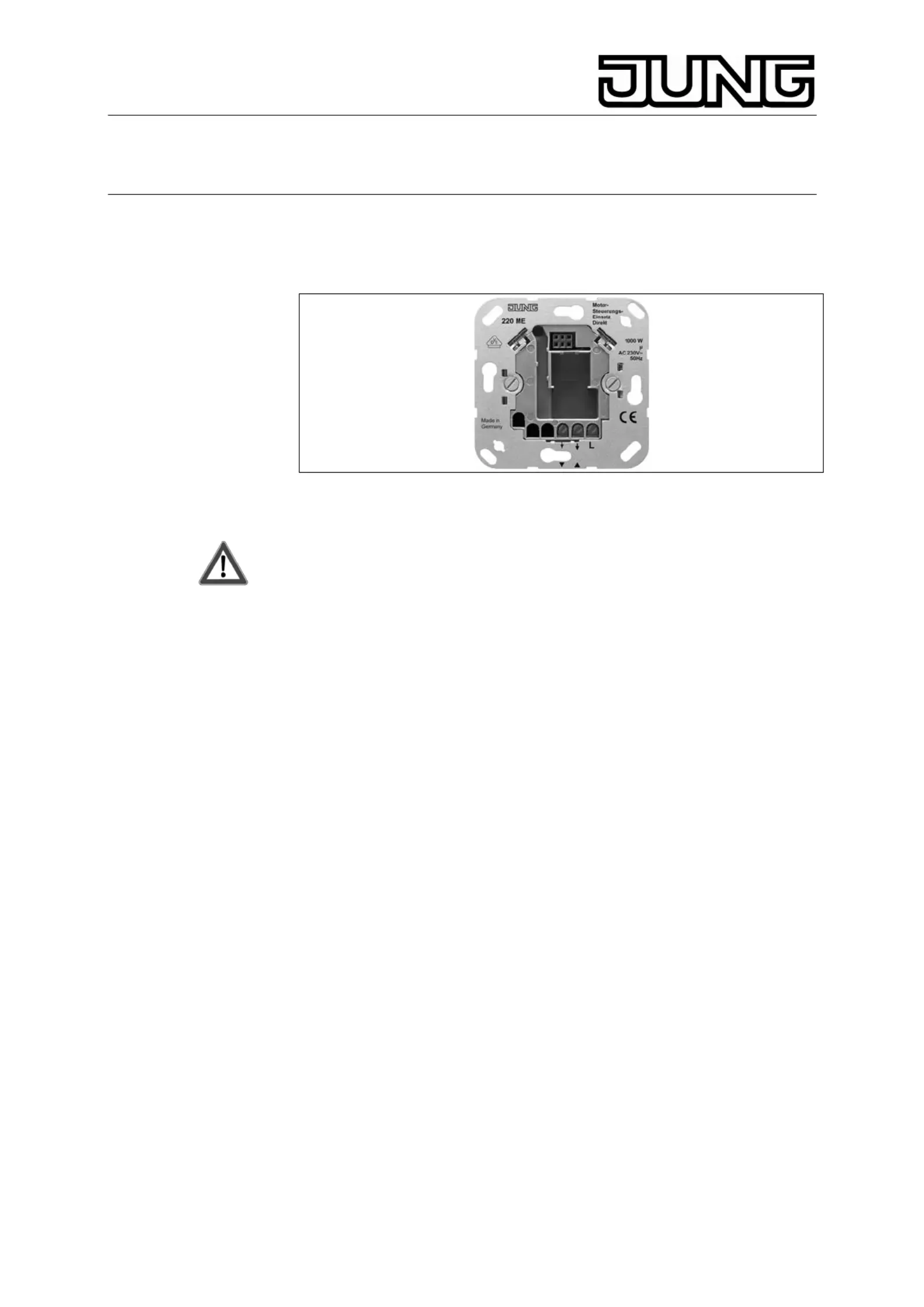

The motor control insert ‘Direkt’ is used in electrical installations without

neutral conductor (N).

The existing mechanical shutter switch can therefore be replaced directly

by a comfortable control unit with the motor control insert ‘Direkt’. The

motor control insert ‘Direkt’ is a component of the Jalousie Management

and is used in conjunction with attachments of the Jalousie Management

in a mounting box acc. to DIN 49073 (deep box recommended).

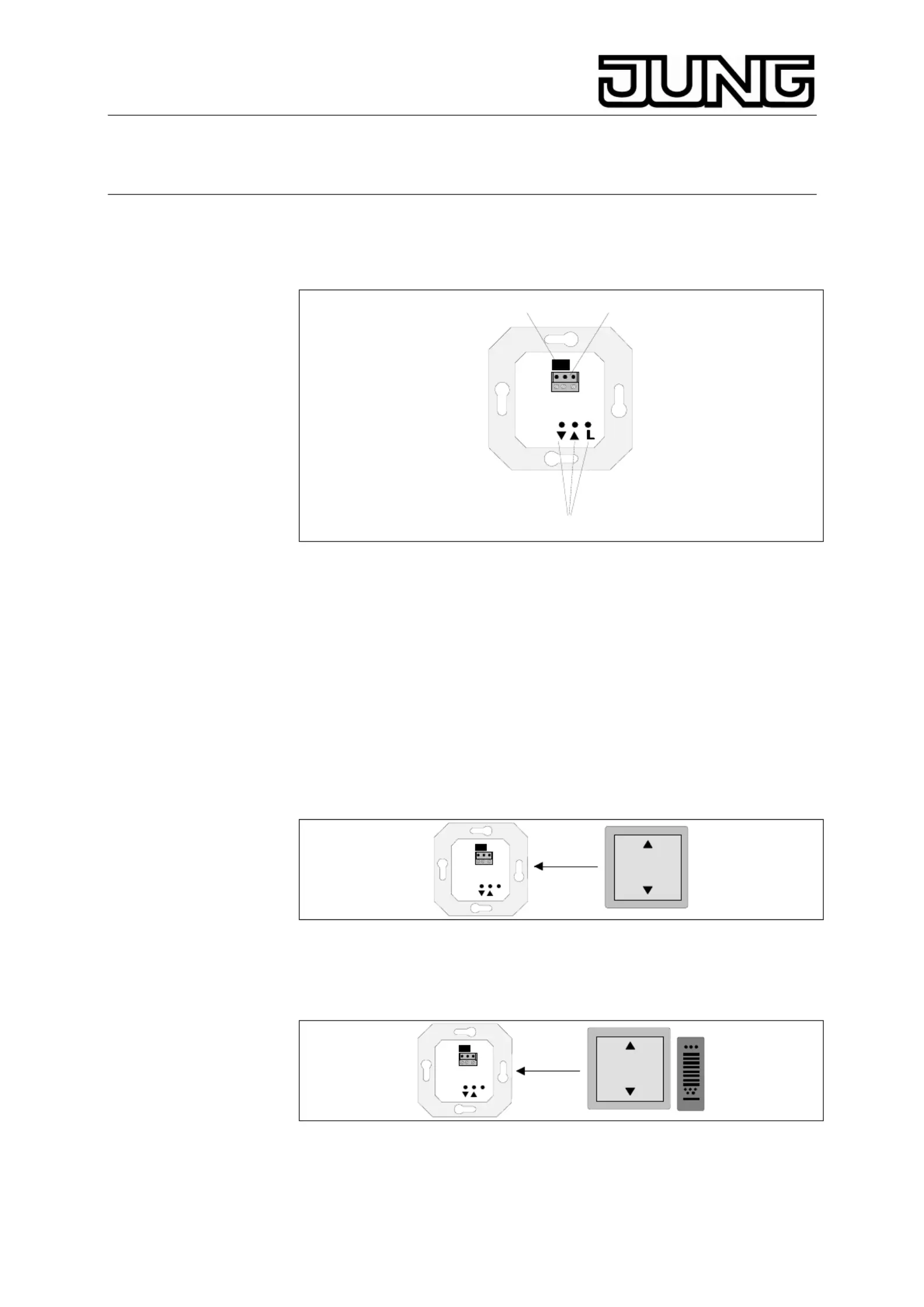

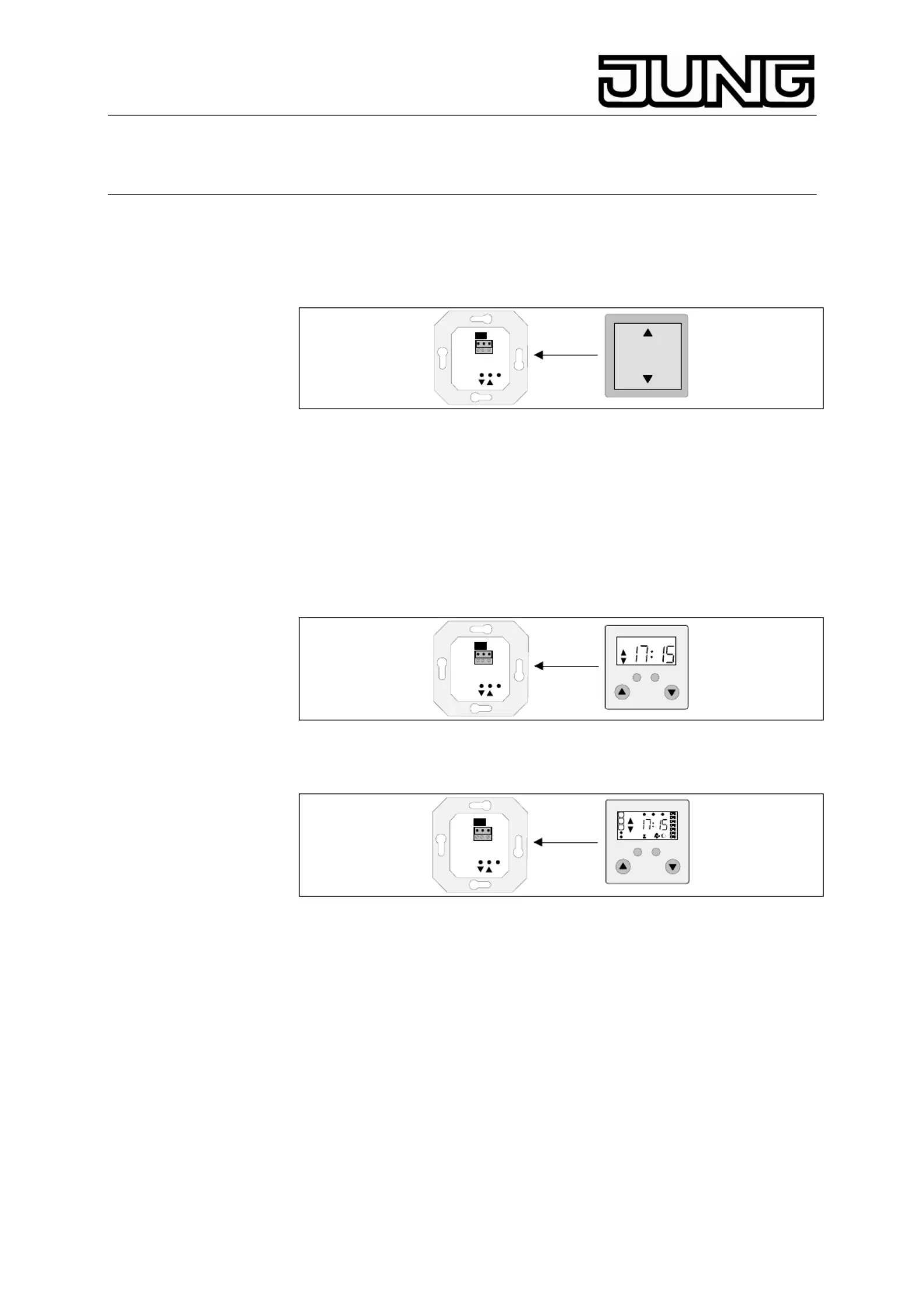

By replacing the attachment it is therefore possible to realize systems

with manual operation, comfortable operation by radio remote control or

timercontrolled fully automatic operation.

The insert is equipped with two mechanically interlocked relay power

contacts. The simultaneous activation of both moving directions of the

shutter motor connected is thus excluded. connected is thus excluded.

Attention: Connect only one motor with limit switches and a power

consumption of 1000 W max. to each insert. Do not use isolating

relays. It is absolutely necessary to check the motor for suitability

as described in chapter 4.

Stand: Jun-08 325 307 03
