Seite 1/3
KNX Control unit
Ref.-no.: 2090EB
Operating Instructions
Control unit
1. System information
This device is a product of the instabus EIB-system and complies with
EIBA directives. Detailed technical knowledge obtained in instabus-
training courses is a prerequisite for proper understanding.
Functionality of this device is depending on the software. Detailed
information on loadable software and attainable functionality may be
taken from the manufacturer’s product database.
Planning, installation and commissioning of the unit is done by means of
EIBA certified software.
Indications of danger
Caution !
Caution ! The installation and assembly of melectrical equipment
may be carried out only by a skilled person.
2. Function
The 1 - 10 V Control Unit allows the dimming of fluorescent lamps with
controllable electronic ballast’s and 1 - 10 V interface. The number of
controllable electronic ballast’s to be dimmed by one Control Unit
depends on the signal current of individual electronic ballast’s and is
type-dependent.
Commands are issued by operation of touch sensors or via the binary
inputs of the instabus EIB-system. The unit is protected by a 10 amps
trip-out overcurrent switch.
3. Connection

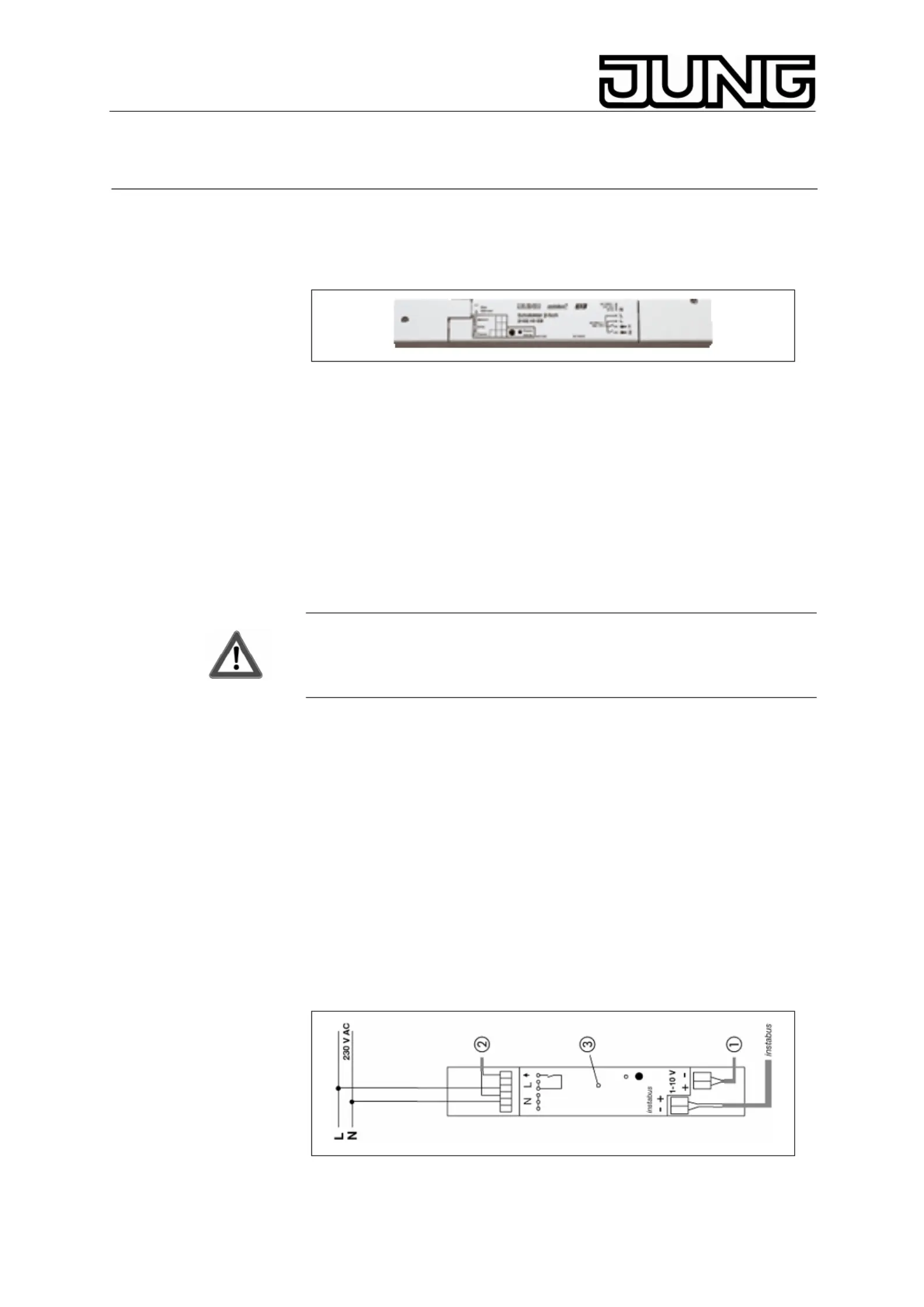

The unit is connected as shown on the opposite gure. Legend :
c 1 - 10 V control voltage (from electronic ballast)
d Power supply for connected ballasts
Stand: Jun-08 325 025 03
KNX Control unit
Ref.-no.: 2090EB
4. Adjustment
The unit’s functionality is software-dependent.
Dimming time is adjustable.
Basic brilliance corresponds to the lowest limit of the control voltage and
can be set using the trimming resistor (3).
Dimming characteristics, e.g. brilliance variation and dimming speed, can
be matched to the sensitivity of the eye and the behaviour of connected
electronic ballast’s.
The Control unit’s switching status may be sent over the instabus EIB.
Interrogation of the brilliance value via the instabus EIB allows its
integration in lighting scenes.
Subject to change without notice.
5. Technical Data
Supply instabus KNX : 21 - 32 V DC
AC mains : 230 V AC
Power drain instabus KNX : max. 150 mW
AC mains : max. 2 W
Connection instabus KNX : Connecting
terminal and branch joint
AC mains : Plug-in terminals up to 2.5 mm2
1 - 10 V Schnittstelle Plug-in terminals up to 0.5 mm2
Switching power ohmic load : 2300 W
EVG : depends on type
1 - 10 V interface
Input line
length : max. 500 m for 0.5 mm²
Signal current : max. 50 mA
Signal duration : 100 % continuous
Ambient temperature : -5 °C … +45 °C
Storage temperature : -25 °C … +70 °C
Max. housing temperature : 75 °C
Type of protection : IP 20
Dimensions (in mm) : 39.5 x 28.5 x 278.6 (B x H x L)
Minimum distances : circular, 4 cm
2
KNX Control unit
Ref.-no.: 2090EB
6. Guarantee
We accept the guarantee in accordance with the corresponding legal
provisions.
Please return the unit postage paid to our central service
department giving a brief description of the fault.:
ALBRECHT JUNG GMBH & CO. KG
Service-Center
Kupferstr. 17-19
D-44532 Lünen
Service-Line: 0 23 55 . 80 65 51
Telefax: 0 23 55 . 80 61 89
E-Mail: mail.vki@jung.de
General equipment
Service-Line: 0 23 55 . 80 65 55
Telefax: 0 23 55 . 80 62 55
E-Mail: mail.vkm@jung.de
Instabus KNX equipment
Service-Line: 0 23 55 . 80 65 56
Telefax: 0 23 55 . 80 62 55
E-Mail: mail.vkm@jung.de
3
