Seite 1/4
1
Product information
DCM Dome camera 58°
TK 420 FDK 58
Safety instructions
!
Assembly, installation, and commissioning must only be carried out by a qualified
electrician!
For work on systems with 230 V AC mains current the safety requirements of DIN VDE
0100 must be observed.
When installing DCM BUS systems the general safety rules for telecommunication sys-
tems in accordance with VDE 0800 must be observed:
• separate cabling for high and low voltage lines
• minimum distance of 10 cm for joint cabling arrangements,
• use of separators between high and low voltage lines in joint cable ducts,
!
Suitable lightning prediction must ensure that a voltage of 32 V DC will not be
exceeded at the DCM BUS wires a and b.
Application / Brief description
Application
• Colour dome camera for the use in DCM video installations
• Connection exclusively to DCM camera interface 2-wire ref.-no.TKVS21U
• For the indoor and out door use
Brief description
• weather-proof dome camera in a metal housing with lens
• the 4.3mm lens can be positioned and fixed by 120° in all desired directions
• high quality CCD-Chip technology
• automatic shutter operation (ESC), automatic backlight function (BLC) and automatic
gain control (AGC) enables the indoor use and the outdoor use with extreme sunlight
2

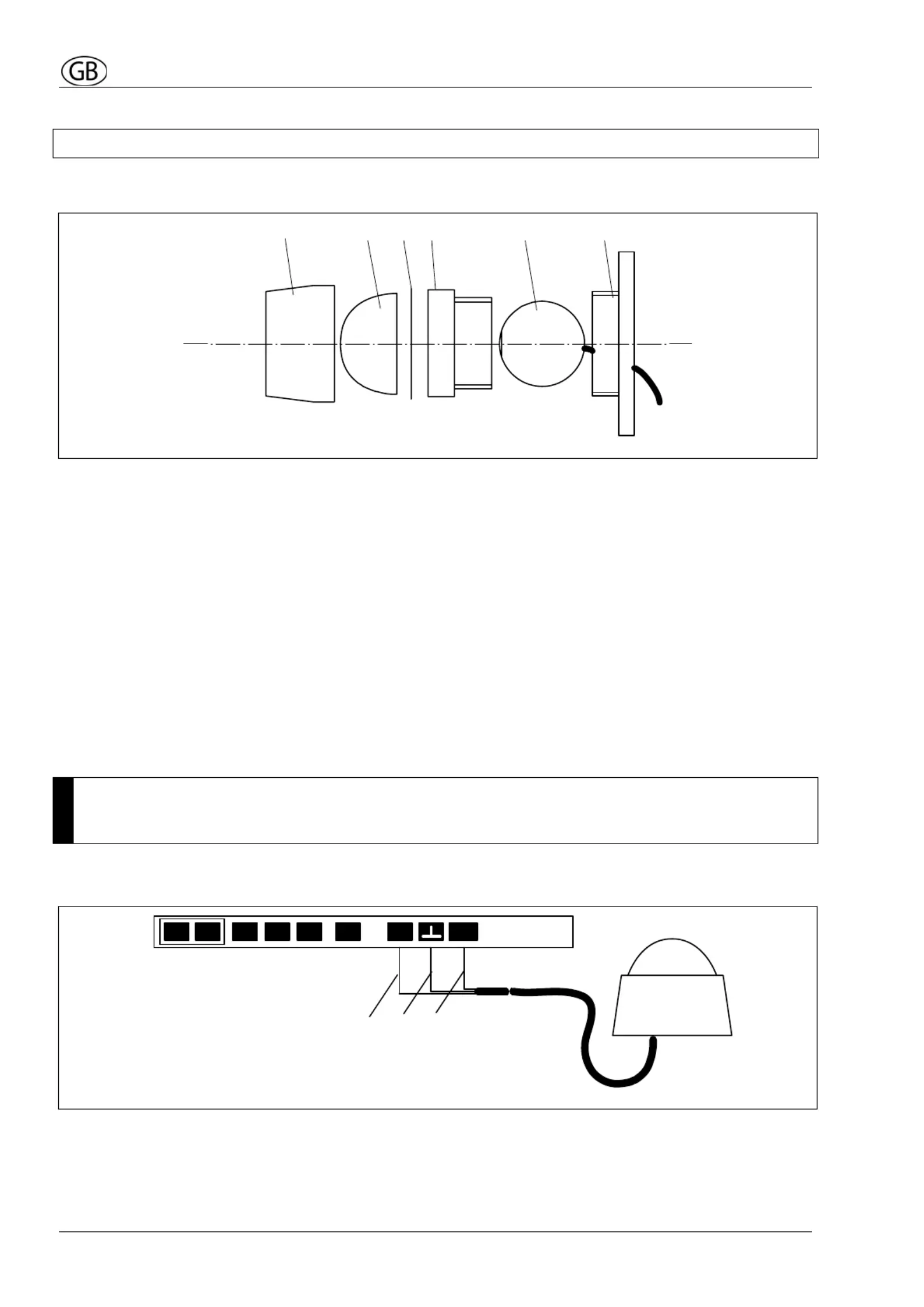

Installation and connection
Installation
1
2 3
4
5
6
(1) Cylinder, (2) Glass dome, (3) O-ring, (4) Connection ring for camera, (5) Camera in spherical housing, (6) wall bear-
ing
• connect the wall bearing (6) with 4 screws
• consider the outlet for the wire connection
• place the camera (5) with wire connection onto the wall box
• install connection ring (4)
• to adjust the camera (5) loose the connection ring (4) until the camera
can be moved
• adjust camera
• fasten connection ring
• attach O-ring
• screw on cylinder with glass dome .
Note
!
When installing in outdoor areas:
• Avoid direct solar radiation into the lens. Use the sun roof.
Select suitable installation location.
Connection
a b V2 P M V 12VV1
TKVS21U
TK 420 FDK 58
Wiring example see TKVS21U
YE = yellow
BK = black
RD = red
ca. 0.8 m
YE BK RD
asymmetrical 75 Ohm
symmetrical 2-wire
3
Important note for connection
!
Do NOT extend the wire of the camera !
Focus settings
In consequence of the structural form of the lens, a focus of the camera from 0.5 m
to infinity is always given.
Therefore no focus settings are required.
Technical data
Supply voltage: 12 V DC supplied with TKVS21U
Input current: I(Pmax) = 100 mA
Housing: plastic
Dimensions(Ø x h): Ø 80 x 60 mm
Housing: metal housing aluminium, lacquered
Colour: white
Cable length: approx. 0.8 m
Weight: 300 g
Schutzart: IP 65
Ambient conditions
Ambient temperature: - 10 °C ... + 50 °C
Humidity: up to 100 %
Resolution: 420 TVL, Video standard PAL (521 x 581 Pixel)
Min. ambient brightness: 0.25 Lux / F 1,4
Image converter: 1/3“ CCD Sharp
TV standard: PAL, 625 lines, 50 Hz
Video output signal FBAS 1Vss / 75 Ohm
Detection angle: 58°
Detected distance: 0.5…3 m
Troubleshooting
Camera does not deliver an image
- The monitor is switched o
- mixed polarity of power supply
- Video wire is interrupted
