Date Issued: 11/13/17 IS-49965-US
We’re here to help 866-558-5706
Hrs: M-F 9am to 5pm EST
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.

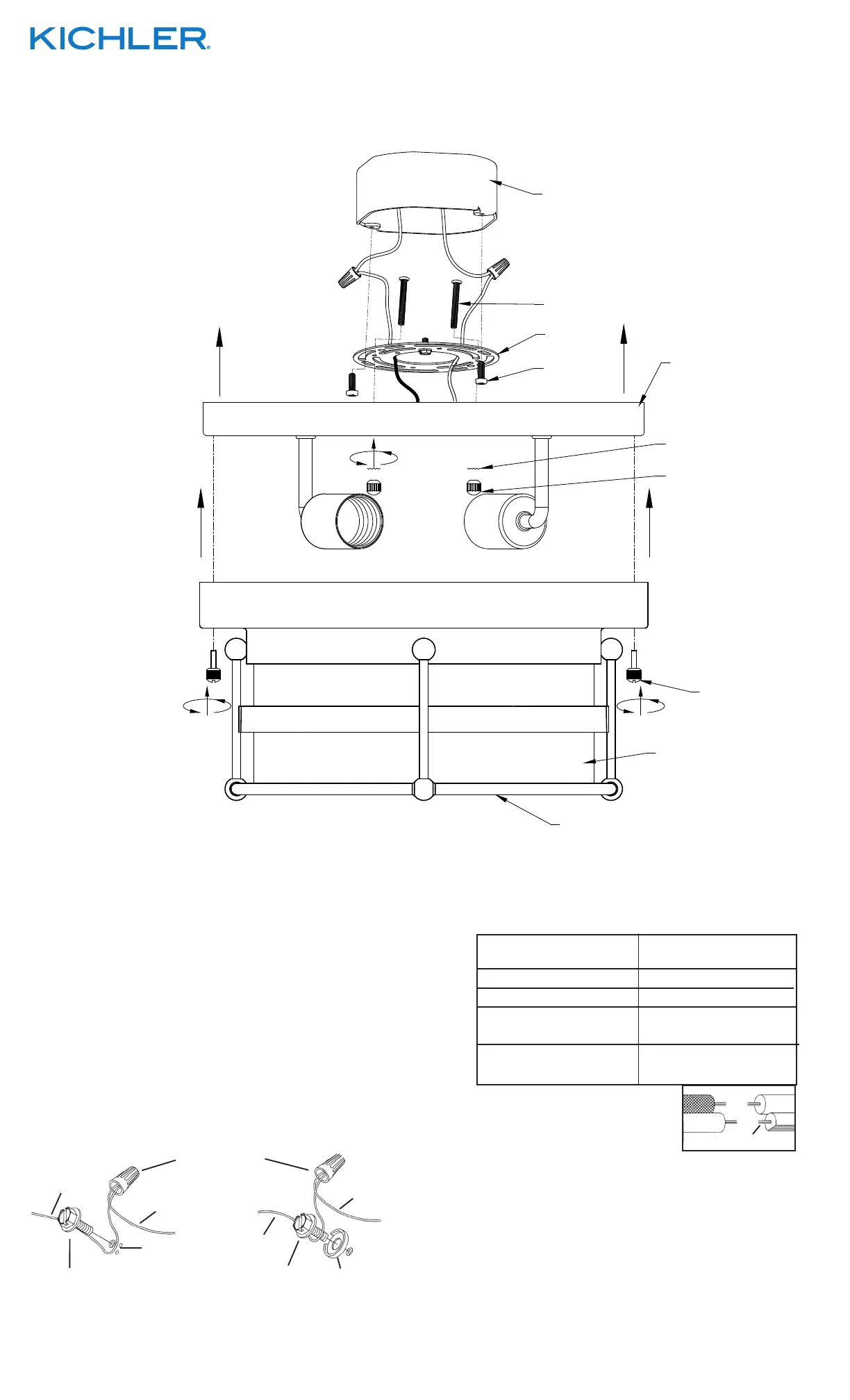

1) Find the appropriate threaded holes on mounting strap[1].
Assemble mounting screws[2] into threaded holes.
2) Attach mounting strap to outlet box[4] using strap mounting
screws[3]. The mounting strap can be adjusted to suit position
of xture.
3) Grounding instructions: (See Illus. A or B).
A) On xtures where mounting strap is provided with a hole
and two raised dimples. Wrap ground wire from outlet box
around green ground screw, and thread into hole.
B) On xtures where a cupped washer is provided. Attach
ground wire from outlet box under cupped washer and
green ground screw, and thread into mounting strap.
If xture is provided with ground wire. Connect xture ground
wire to outlet box ground wire with wire connector (not provided.)
after following the above steps. Never connect ground wire to
black or white power supply wires.
GREEN GROUND
SCREW
CUPPED
WASHER
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
WIRE CONNECTOR
OUTLET BOX
GROUND
GREEN GROUND
SCREW
FIXTURE
GROUND
A
B
4) Make wire connections. Reference chart below for correct
connections and wire accordingly.
5) Push xture to ceiling, carefully passing mounting screws
through holes in canopy[5]. NOTE: Be certain wires do not get
pinched between canopy and ceiling.
6) Use knobs[6] and lockwashers[7] to secure canopy. Tighten to
secure.
7) Insert recommended bulbs.
8) Lower the glass[9] into the bottom cage assembly[10].
9) Raise the assembled bottom cage assembly up over the
canopy and thread in the two (2) studded knobs[8]. Tighten
securely.
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth)
*Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
OUTLET BOX
4
3
1
2
5
7
6
9
10
8
