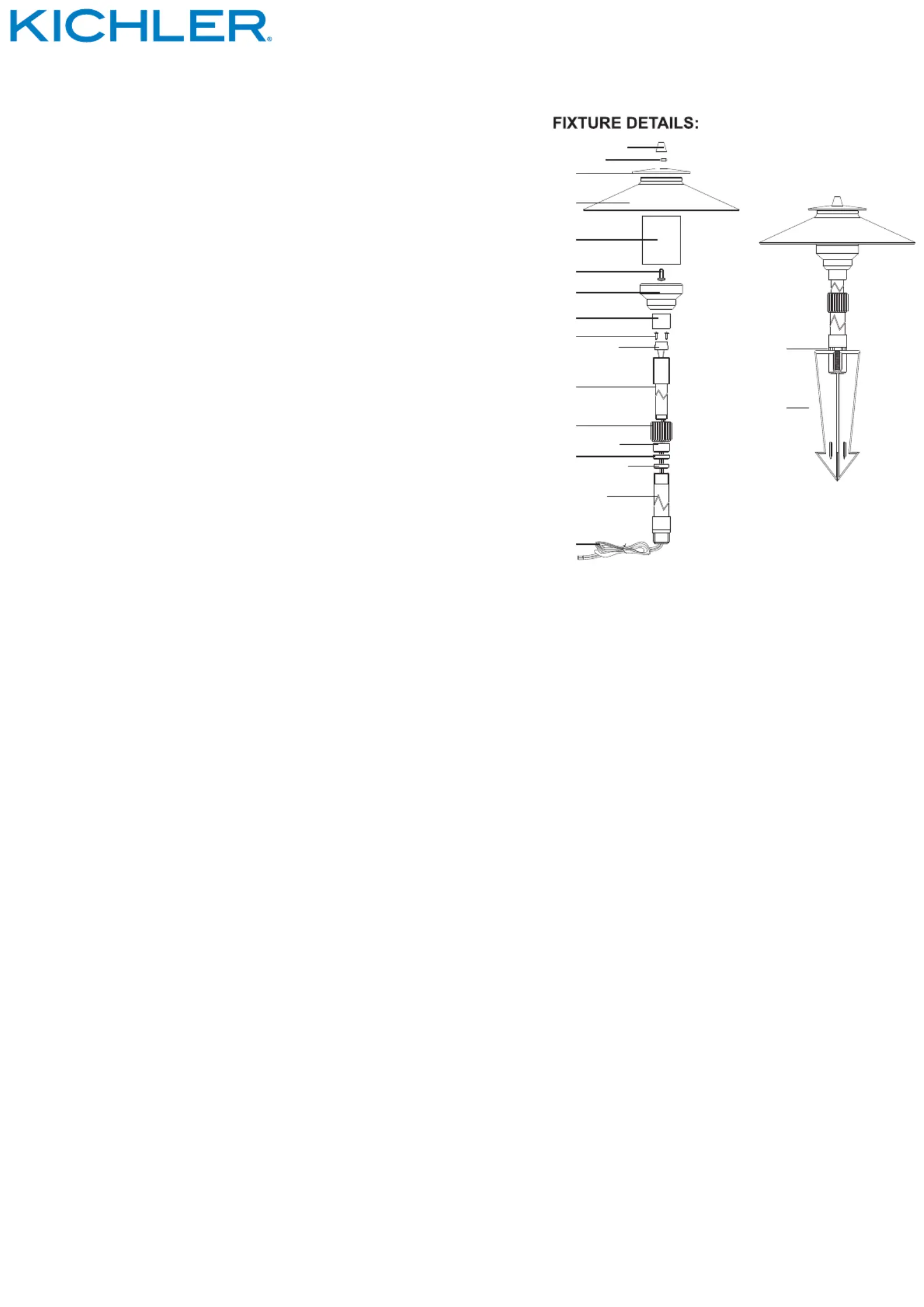

Seite 1/1
DJUSTA HEIGHT ATP H ARGEL
MODEL # 15503CBR
1
3
4
5
6
7
8
9
10
11
12
13
14
16
2
17
15
18
19
1. N 2.ipple O-Ring Upper Shade 3. 4. Lower
Shade Lens Screw Coupling 5. 6. 7.
8. Bushing 9. Socket Screw Socket 10.
11. Inner Stem Locking Ring Gasket 12. 13.
14. Secure Ring A 15. 16. Secure Ring B Outer
Stem Cable Lock Nut Spike 17. 18. 19.
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Para informacion de la garantia por favor visite: www.landscapelighting.com/portal/warranty_page
Date Issued: 4/27/17
IS- -US15503
Weʼre here to help 844-542-4537
Hrs: M-F 8am to 6:30pm EST
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO
PERSONS IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly!
3) Do not touch hot lens or cowl.
4) Do not touch lamp or fixture if warm.
5) Do not look directly at lamp when on.
6) Keep lamp away from combustible materials.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner
glass envelope of the lamp at any time. Use a soft
cloth. Oil from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing lens.
2)
SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
This fixture is intended for installation in accordance with the National Electric
Code (NEC) and Local code specifications. Failure to adhere to these codes and
instructions may result in serious injury and/or property damage and will void the
warranty.
1)
WARNING: This fixture is not to be installed within 10 feet (3M) of a pool, spa or
fountain.
This fixture is to be used only with a power unit (
transformer) rated a maximum
of
300 W (25 AMPS) 15 volts per circuit.
3) The #18 ga. fixture wire is not intended for direct burial or connected to
transformer.
4) Direct burial rated wire is to be buried a minimum of 6” (152mm) beneath the
surface of the ground. If additional Direct Burial wireNOTE:
is needed, contact
your local Kichler
®
landscape distributor.
• 8 GA wire can be purchased in length of 250’ (76 M), 15503-BK.
•10 GA wire can be purchased in length of 250’ (76 M), 15504-BK.
•12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK; 250’ (76 M),
15502-BK; 500’ (152M), 15505-BK; and 1000’ (304 M), 15506-BK.
5) Fixture shall not use a tungsten halogen lamp unless the fixture is marked for
use with such lamps.
6) Wiring connections must be made with approved/listed wire connection
device(s) suitable for the application. Do not exceed manufacturers’ wiring
combination specifications for size and quantity of conductors.
CAUTION
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALL Y COMBUSTIBLE
MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE GRASS CLIPPINGS, MULCH,
LIGHT BULB, LENS, OR BODY OF THE FIXTURE.
ASSEMBLY AND INSTALLATION
1.
TURN OFF POWER
2.
Determine desired location, hammer the spike into ground . If ground is hard, a crosscut in the using a rubber mallet make
ground using a flat shovel.
3.
Clear away area in ground at wireway slot in top of spike.
4.
Adjust height of fixture by loosening the locking ring, then tightening the locking ring when a desired height is set.
5.
Lay 12V cable into wireway slot and screw fixture into spike.
6.
Expose the socket by loosening the from stem. Install the G4 / T3 lamp into socket.COUPLING
7.
Re-install COUPLING back to stem.
8.
Make connection using approved wir (not supplied)e nuts
