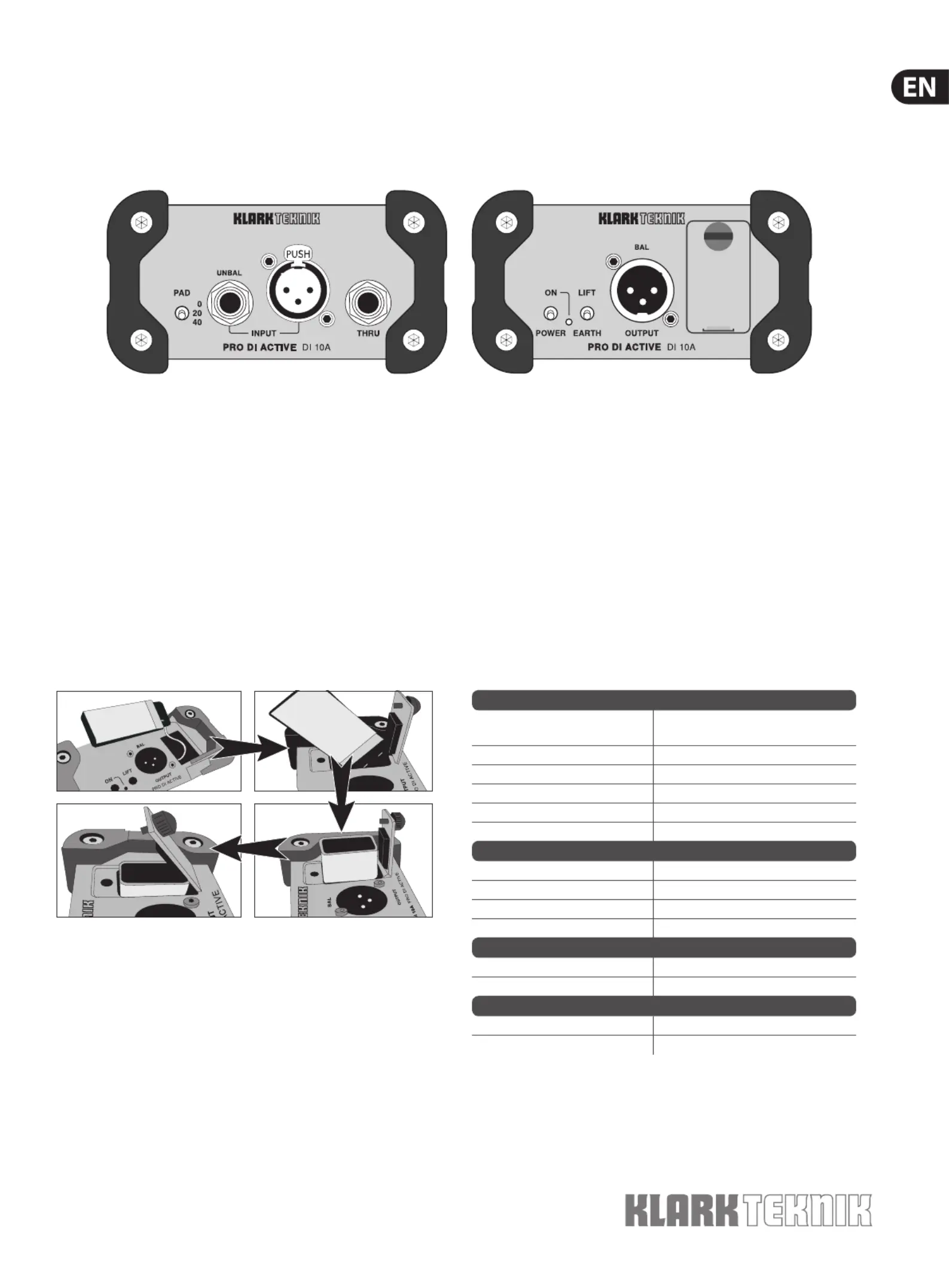

PRO DI ACTIVE DI 10A

Active DI Box with MIDAS Transformer,

Extended Dynamic Range and Phantom/Battery Operation

PAD – switch incrementally reduces the INPUT gain sensitivity to handle unusually loud

input signals. The PAD switch oers gain reduction settings of 0 dB (guitar), 20 dB (line)

or 40 dB (speaker).

INPUT – connections accept balanced and unbalanced signals over cables with ¼" TRS,

¼" TS or XLR plugs.

THRU – output sends out a copy of the INPUT signal and accepts connections from cables

with ¼" TRS or ¼" TS plugs.

POWER – switch turns the unit on and o.

ON – LED lights up to indicate the following conditions:

• battery power active = LED blinks

• battery power o = LED o

• phantom power active = LED lights without blinking

LIFT / EARTH – switch can be used to connect or disconnect the ground link between

the INPUT and OUTPUT jacks in order to reduce hum or prevent group loops. The LIFT /

EARTH switch’s ability to reduce hum or prevent ground loops depends on the grounding

of connected devices. When the switch is in the LIFT position, the ground connection

between INPUT and OUTPUT is disconnected.

OUTPUT – XLR jack sends out a balanced version of the INPUT signal to your mixing board

or other processing device.

BATTERY COMPARTMENT – contains the 9 V battery used to power the unit. Loosen the

screw to open the compartment and replace the battery.

NOTE: In the event that phantom power fails, the unit will automatically switch to

battery power.

LEGAL DISCLAIMER

MUSIC Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specications,

appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND,

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding MUSIC Tribe’s Limited Warranty, please see complete details online at music-group.com/warranty.

Specications

Audio Connections

Input 1 x XLR, balanced

1 x ¼" TS, unbalanced

Input Impedance > 250 kΩ

Thru 1 x ¼" TS, unbalanced

Output 1 x XLR, balanced

Load Impedance > 600 Ω

Maximum Input level +10 / +30 / +50 dBu

System

Frequency Response 10 Hz to 90 kHz, ±3 dB

THD+N < 0.02 % @ 1 kHz, 0 dBu
