INSTALLATION SHEET

LP70130

LED Linear Pendant

START FROM HERE

Please Note:

• All Kuzco LED fixture comes with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required.

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support:

1-855-855-8926

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20200624Page 1 of 2

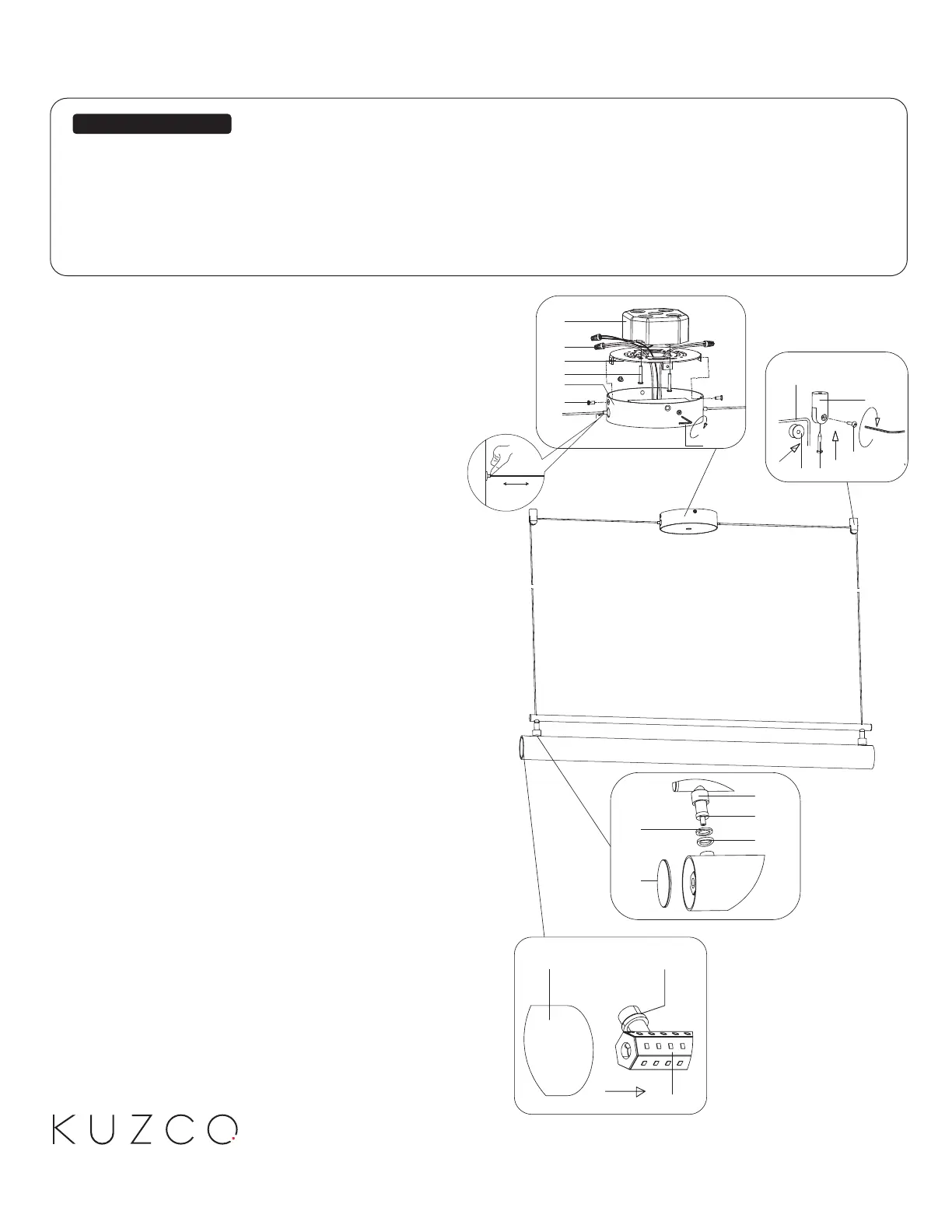

2b.

Remove the fixture from its original packaging

1.

Separate the mounting plate (1c) from the canopy (2a)

by removing the four screws (2c)

Attach the mounting plate (1c) to the electrical junction

box (1a) using the two screws (1d) provided in the

hardware package

2.

3.

Make proper electrical connections (black to hot “L”,

white to neutral “N”, ground to “GND”) with wire nuts

(1b) provided in hardware package

4.

Attach canopy (2a) to mounting plate (1c) with

screws (2c) and allen key provided (2d)

5.

Mark and install ceiling anchors (3b) with screw (3a),

opening on ceiling anchor (3b) facing towards canopy

(2a). Ideal distance between ceiling anchors (3b) is

30-1/4”.

6.

Place wire onto pulley (3g), insert into ceiling anchor

(3b) and secure with screw (3f) using Allen key

7.

Gently slide LED assembly (4f) into glass tube (4a) until

connector receptacles (4b) can be exposed through on

glass, secure by installing end caps (4e).

8.

1a.

3b.

3f.

3a.3g.

Wire

1b.

1c.

1d.

2c.

2d.

2a.

4f.

4d.

4c.

3d.

3c.

4e.

4b.4a.

Insert rubber wave washer (4c), followed by flat washer

(4d) onto each connector receptacle (4b) post, and then

insert coaxial connector (3c) to make electrical connection,

secure with threaded cap (3d)

9.
